php内存模型

一：内存结构体

struct _zend_mm_heap {
    int                 use_zend_alloc; /* 是否使用zend内存管理器 */
    void               *(*_malloc)(size_t); /* 内存分配函数*/
    void                (*_free)(void*);    /* 内存释放函数*/
    void               *(*_realloc)(void*, size_t);
    size_t              free_bitmap;    /* 小块空闲内存标识 */
    size_t              large_free_bitmap;  /* 大块空闲内存标识*/
    size_t              block_size;     /* 一次内存分配的段大小，即ZEND_MM_SEG_SIZE指定的大小，默认为ZEND_MM_SEG_SIZE   (256 * 1024)*/
    size_t              compact_size;   /* 压缩操作边界值，为ZEND_MM_COMPACT指定大小，默认为 2 * 1024 * 1024*/
    zend_mm_segment    *segments_list;  /* 段指针列表 */
    zend_mm_storage    *storage;    /* 所调用的存储层 */
    size_t              real_size;  /* 堆的真实大小 */
    size_t              real_peak;  /* 堆真实大小的峰值 */
    size_t              limit;  /* 堆的内存边界 */
    size_t              size;   /* 堆大小 */
    size_t              peak;   /* 堆大小的峰值*/
    size_t              reserve_size;   /* 备用堆大小*/
    void               *reserve;    /* 备用堆 */
    int                 overflow;   /* 内存溢出数*/
    int                 internal;
#if ZEND_MM_CACHE
    unsigned int        cached; /* 已缓存大小 */
    zend_mm_free_block *cache[ZEND_MM_NUM_BUCKETS]; /* 缓存数组/
#endif
    zend_mm_free_block *free_buckets[ZEND_MM_NUM_BUCKETS*2];    /* 小块内存数组，相当索引的角色 */
    zend_mm_free_block *large_free_buckets[ZEND_MM_NUM_BUCKETS];    /* 大块内存数组，相当索引的角色 */
    zend_mm_free_block *rest_buckets[2];    /* 剩余内存数组*/

};

　　

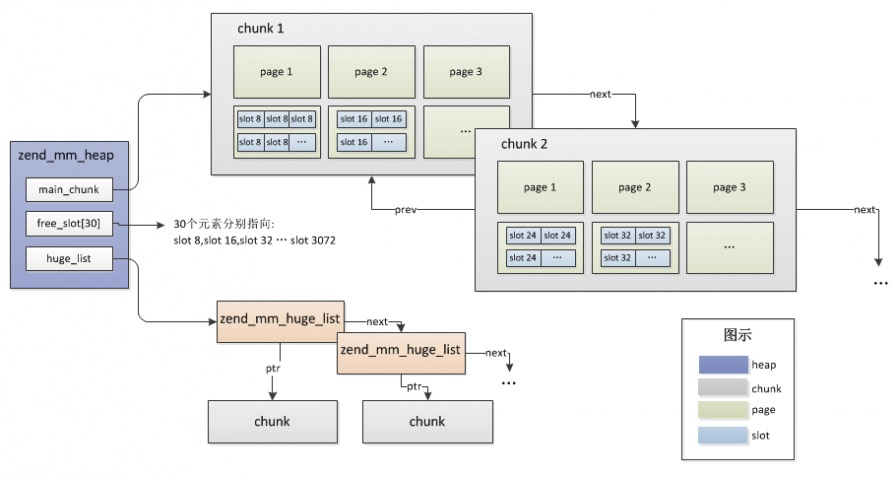

二： php 内存架构





内存分配简介：
Smal(slot)（size<=3KB）：申请内存小于等于3092B(3/4 page_size)，内存池提前定义好了30种同等大小的内存(8,16,24,32，…3072)，他们分配在不同的page上(不同大小的内存可能会分配在多个连续的page)，申请内存时直接在对应page上查找可用位置
Large(page)（3KB<size<=2MB-4KB）：申请内存大于3092B(3/4 page_size)，小于2044KB(511 page_size)，分配若干个page
Huge(chunk)（size>2MB-4K） ：申请内存大于2M，直接调用系统分配，分配若干个chunk





二： php内存初始化

main->sapi_startup->php_cgi_startup->php_module_startupzend_startup->start_memory_manager->zend_mm_startup-> zend_mm_startup_ex->zend_mm_init







三：php 内存分配链路图

1:  pemalloc->emalloc->_emalloc-> _zend_mm_alloc_int

sock = pemalloc(sizeof(php_netstream_data_t), persistent_id ? 1 : 0);
memset(sock, 0, sizeof(php_netstream_data_t));

sock->is_blocked = 1;
sock->timeout.tv_sec = FG(default_socket_timeout);
sock->timeout.tv_usec = 0;
sock->socket = socket;

指针不需要类型转换？ =>  gcc 编译器默认行为

static void *_zend_mm_alloc_int(zend_mm_heap *heap, size_t size ZEND_FILE_LINE_DC ZEND_FILE_LINE_ORIG_DC)
{
   zend_mm_free_block *best_fit;
   size_t true_size = ZEND_MM_TRUE_SIZE(size);
   size_t block_size;
   size_t remaining_size;
   size_t segment_size;
   zend_mm_segment *segment;
   int keep_rest = 0;
#ifdef ZEND_SIGNALS
   TSRMLS_FETCH();
#endif

   HANDLE_BLOCK_INTERRUPTIONS();

   if (EXPECTED(ZEND_MM_SMALL_SIZE(true_size))) {
      size_t index = ZEND_MM_BUCKET_INDEX(true_size);
      size_t bitmap;

      if (UNEXPECTED(true_size < size)) {
         goto out_of_memory;
      }
#if ZEND_MM_CACHE
      if (EXPECTED(heap->cache[index] != NULL)) {
         /* Get block from cache */
#if ZEND_MM_CACHE_STAT
         heap->cache_stat[index].count--;
         heap->cache_stat[index].hit++;
#endif
         best_fit = heap->cache[index];
         heap->cache[index] = best_fit->prev_free_block;
         heap->cached -= true_size;
         ZEND_MM_CHECK_MAGIC(best_fit, MEM_BLOCK_CACHED);
         ZEND_MM_SET_DEBUG_INFO(best_fit, size, 1, 0);
         HANDLE_UNBLOCK_INTERRUPTIONS();
         return ZEND_MM_DATA_OF(best_fit);
      }
#if ZEND_MM_CACHE_STAT
      heap->cache_stat[index].miss++;
#endif
#endif

      bitmap = heap->free_bitmap >> index;
      if (bitmap) {
         /* Found some "small" free block that can be used */
         index += zend_mm_low_bit(bitmap);
         best_fit = heap->free_buckets[index*2];
#if ZEND_MM_CACHE_STAT
         heap->cache_stat[ZEND_MM_NUM_BUCKETS].hit++;
#endif
         goto zend_mm_finished_searching_for_block;
      }
   }

#if ZEND_MM_CACHE_STAT
   heap->cache_stat[ZEND_MM_NUM_BUCKETS].miss++;
#endif

   best_fit = zend_mm_search_large_block(heap, true_size);

   if (!best_fit && heap->real_size >= heap->limit - heap->block_size) {
      zend_mm_free_block *p = heap->rest_buckets[0];
      size_t best_size = -1;

      while (p != ZEND_MM_REST_BUCKET(heap)) {
         if (UNEXPECTED(ZEND_MM_FREE_BLOCK_SIZE(p) == true_size)) {
            best_fit = p;
            goto zend_mm_finished_searching_for_block;
         } else if (ZEND_MM_FREE_BLOCK_SIZE(p) > true_size &&
                    ZEND_MM_FREE_BLOCK_SIZE(p) < best_size) {
            best_size = ZEND_MM_FREE_BLOCK_SIZE(p);
            best_fit = p;
         }
         p = p->prev_free_block;
      }
   }

   if (!best_fit) {
      if (true_size > heap->block_size - (ZEND_MM_ALIGNED_SEGMENT_SIZE + ZEND_MM_ALIGNED_HEADER_SIZE)) {
         /* Make sure we add a memory block which is big enough,
            segment must have header "size" and trailer "guard" block */
         segment_size = true_size + ZEND_MM_ALIGNED_SEGMENT_SIZE + ZEND_MM_ALIGNED_HEADER_SIZE;
         segment_size = (segment_size + (heap->block_size-1)) & ~(heap->block_size-1);
         keep_rest = 1;
      } else {
         segment_size = heap->block_size;
      }

      if (segment_size < true_size ||
          heap->real_size + segment_size > heap->limit) {
         /* Memory limit overflow */
#if ZEND_MM_CACHE
         zend_mm_free_cache(heap);
#endif
         HANDLE_UNBLOCK_INTERRUPTIONS();
#if ZEND_DEBUG
         zend_mm_safe_error(heap, "Allowed memory size of %ld bytes exhausted at %s:%d (tried to allocate %lu bytes)", heap->limit, __zend_filename, __zend_lineno, size);
#else
         zend_mm_safe_error(heap, "Allowed memory size of %ld bytes exhausted (tried to allocate %lu bytes)", heap->limit, size);
#endif
      }

      segment = (zend_mm_segment *) ZEND_MM_STORAGE_ALLOC(segment_size);

      if (!segment) {
         /* Storage manager cannot allocate memory */
#if ZEND_MM_CACHE
         zend_mm_free_cache(heap);
#endif
out_of_memory:
         HANDLE_UNBLOCK_INTERRUPTIONS();
#if ZEND_DEBUG
         zend_mm_safe_error(heap, "Out of memory (allocated %ld) at %s:%d (tried to allocate %lu bytes)", heap->real_size, __zend_filename, __zend_lineno, size);
#else
         zend_mm_safe_error(heap, "Out of memory (allocated %ld) (tried to allocate %lu bytes)", heap->real_size, size);
#endif
         return NULL;
      }

      heap->real_size += segment_size;
      if (heap->real_size > heap->real_peak) {
         heap->real_peak = heap->real_size;
      }

      segment->size = segment_size;
      segment->next_segment = heap->segments_list;
      heap->segments_list = segment;

      best_fit = (zend_mm_free_block *) ((char *) segment + ZEND_MM_ALIGNED_SEGMENT_SIZE);
      ZEND_MM_MARK_FIRST_BLOCK(best_fit);

      block_size = segment_size - ZEND_MM_ALIGNED_SEGMENT_SIZE - ZEND_MM_ALIGNED_HEADER_SIZE;

      ZEND_MM_LAST_BLOCK(ZEND_MM_BLOCK_AT(best_fit, block_size));

   } else {
zend_mm_finished_searching_for_block:
      /* remove from free list */
      ZEND_MM_CHECK_MAGIC(best_fit, MEM_BLOCK_FREED);
      ZEND_MM_CHECK_COOKIE(best_fit);
      ZEND_MM_CHECK_BLOCK_LINKAGE(best_fit);
      zend_mm_remove_from_free_list(heap, best_fit);

      block_size = ZEND_MM_FREE_BLOCK_SIZE(best_fit);
   }

   remaining_size = block_size - true_size;

   if (remaining_size < ZEND_MM_ALIGNED_MIN_HEADER_SIZE) {
      true_size = block_size;
      ZEND_MM_BLOCK(best_fit, ZEND_MM_USED_BLOCK, true_size);
   } else {
      zend_mm_free_block *new_free_block;

      /* prepare new free block */
      ZEND_MM_BLOCK(best_fit, ZEND_MM_USED_BLOCK, true_size);
      new_free_block = (zend_mm_free_block *) ZEND_MM_BLOCK_AT(best_fit, true_size);
      ZEND_MM_BLOCK(new_free_block, ZEND_MM_FREE_BLOCK, remaining_size);

      /* add the new free block to the free list */
      if (EXPECTED(!keep_rest)) {
         zend_mm_add_to_free_list(heap, new_free_block);
      } else {
         zend_mm_add_to_rest_list(heap, new_free_block);
      }
   }

   ZEND_MM_SET_DEBUG_INFO(best_fit, size, 1, 1);

   heap->size += true_size;
   if (heap->peak < heap->size) {
      heap->peak = heap->size;
   }

   HANDLE_UNBLOCK_INTERRUPTIONS();

   return ZEND_MM_DATA_OF(best_fit);
}
