Makefile
点击查看代码
comp=vcs -sverilog -debug_access_all -ntb_opts uvm-1.2
taa:
set -e
$(comp) taa.sv
./simv
tbb:
set -e
vcs -sverilog tbb.sv
./simv
tcc:
set -e
$(comp) tcc.sv
./simv
tdd:
set -e
$(comp) tdd.sv
./simv
tee:
set -e
$(comp) tee.sv
# ./simv +UVM_TIMEOUT="100s, YES" +UVM_PHASE_TRACE
./simv +UVM_TIMEOUT="100s, YES" +UVM_OBJECTION_TRACE
tff:
set -e
$(comp) tff.sv
./simv
tgg:
set -e
$(comp) tgg.sv
./simv
clean:
@rm -rf *.log simv* *.key csrc DVEf* work tags *.vdb urgReport
get_peek通信
实现6个方法
- get
- try_get
- can_get
- peek
- try_peek
- can_peek
注意点
- try和can用于非阻塞，不能延时，是函数。get如果没有延时也可以用函数，有延时用task。
- 一般形参默认是input，在这里定义的get函数、peek、try相关，需要手动说明output。（虽然ref可行，但是不太正规）
- can_* try_*的返回值，为1表示正常，即可以进行动作，后者并且进行了动作。
- input的机制是输入数据进行备份，在返回后丢弃。output的机制是在输入数据的时候重新初始化，在输出的时候数据赋值。ref是引用，前后的指针不变，对指针指向的内容操作。
（Verilog对参数的处理方式比较简单,在子程序的开头把input和inout的值复制给本地变量,在子程序退出时,则复制output和inout的值）
https://www.cnblogs.com/csjt/p/15819475.html - imp的末尾端口，定义的时候trans在前，类名在后。
module taa ();
import uvm_pkg::*;
class my_trans extends uvm_sequence_item;
`uvm_object_utils(my_trans)
// data or class properties
int a;
// initialization
function new(string name="my_trans");
super.new(name);
endfunction : new
endclass : my_trans
class Getter extends uvm_component;
`uvm_component_utils(Getter)
// data or class properties
uvm_get_peek_port#(my_trans) gpp;
// initialization
function new(string name="Getter ", uvm_component parent);
super.new(name, parent);
gpp = new("gpp", this);
endfunction : new
endclass : Getter
class Sender extends uvm_component;
uvm_get_peek_imp#(my_trans, Sender) gpi;
`uvm_component_utils(Sender)
function new(string name="Sender", uvm_component parent);
super.new(name, parent);
gpi = new("gpi", this);
endfunction : new
function void get(output my_trans a);
`uvm_info("GET_ADDR", $sformatf("address get %h", a), UVM_LOW)
a = new("a");
a.a = 1;
endfunction: get
function bit try_get(output my_trans a);
a = new("a");
a.a = 2;
return 1;
endfunction: try_get
function bit can_get();
return 1;
endfunction: can_get
function void peek(output my_trans a);
a = new("a");
a.a = 3;
endfunction: peek
function bit can_peek();
return 1;
endfunction: can_peek
function bit try_peek(output my_trans a);
a = new("a");
a.a = 4;
return 1;
endfunction: try_peek
endclass : Sender
class my_test extends uvm_test;
Sender sdr;
Getter gtr;
`uvm_component_utils(my_test)
function new(string name="my_test", uvm_component parent);
super.new(name, parent);
endfunction : new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
sdr = Sender::type_id::create("sdr", this);
gtr = Getter::type_id::create("gtr", this);
endfunction
function void connect_phase(uvm_phase phase);
gtr.gpp.connect(sdr.gpi);
super.connect_phase(phase);
endfunction
task run_phase(uvm_phase phase);
my_trans a;
bit status;
a = new("a");
phase.raise_objection(this);
`uvm_info("GET_ADDR_BEF", $sformatf("address get %h", a), UVM_LOW)
gtr.gpp.get(a);
`uvm_info("GET_ADDR_AFT", $sformatf("address get %h", a), UVM_LOW)
`uvm_info("VAULE_AFTER", $sformatf("after a is %d", a.a), UVM_LOW)
status = gtr.gpp.try_get(a);
`uvm_info("VAULE_AFTER", $sformatf("status : %d after a is %d", status, a.a), UVM_LOW)
status = gtr.gpp.can_get();
`uvm_info("VAULE_AFTER", $sformatf("status a is %d", status), UVM_LOW)
status = gtr.gpp.try_peek(a);
`uvm_info("VAULE_AFTER", $sformatf("status : %d after a is %d", status, a.a), UVM_LOW)
status = gtr.gpp.can_peek();
`uvm_info("VAULE_AFTER", $sformatf("status is %d", status), UVM_LOW)
gtr.gpp.peek(a);
`uvm_info("VAULE_AFTER", $sformatf("after a is %d", a.a), UVM_LOW)
phase.drop_objection(this);
endtask: run_phase
endclass : my_test
initial begin
run_test("my_test");
end
endmodule
输出结果
- 在get传入的trans，是不需要实例化的，这里实例化以后，获得了地址f0f27258
- 返回的地址是从被调用者那里实例化的结果。
UVM_INFO @ 0: reporter [RNTST] Running test my_test...
UVM_INFO taa.sv(94) @ 0: uvm_test_top [GET_ADDR_BEF] address get f0f27258
UVM_INFO taa.sv(38) @ 0: uvm_test_top.sdr [GET_ADDR] address get 00000000
UVM_INFO taa.sv(96) @ 0: uvm_test_top [GET_ADDR_AFT] address get f0f276c0
UVM_INFO taa.sv(97) @ 0: uvm_test_top [VAULE_AFTER] after a is 1
UVM_INFO taa.sv(100) @ 0: uvm_test_top [VAULE_AFTER] status : 1 after a is 2
UVM_INFO taa.sv(103) @ 0: uvm_test_top [VAULE_AFTER] status a is 1
UVM_INFO taa.sv(106) @ 0: uvm_test_top [VAULE_AFTER] status : 1 after a is 4
UVM_INFO taa.sv(109) @ 0: uvm_test_top [VAULE_AFTER] status is 1
UVM_INFO taa.sv(112) @ 0: uvm_test_top [VAULE_AFTER] after a is 3
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_objection.svh(1276) @ 0: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 0: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 0: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 13
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 0
** Report counts by id
[GET_ADDR] 1
[GET_ADDR_AFT] 1
[GET_ADDR_BEF] 1
[RNTST] 1
[TEST_DONE] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
[VAULE_AFTER] 6
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 527.
$finish at simulation time 0
input output ref在线
module tbb ();
class c;
int v0;
int v1;
endclass
function void f1(input c c0);
c0.v0 = 3;
endfunction
function void f2(output c c0);
c0.v0 = 3;
endfunction
function void f3(ref c c0);
c0.v0 = 3;
endfunction
function void run();
c r=new();
c r2=new();
c r3=new();
r.v0 = 1;
r.v1 = 2;
f1(r);
$display("input %0x %0x",r.v0,r.v1);
r2.v0 = 1;
r2.v1 = 2;
f2(r2);
$display("output %0x %0x",r2.v0,r2.v1);
r3.v0 = 1;
r3.v1 = 2;
f3(r3);
$display("ref %0x %0x",r3.v0,r3.v1);
endfunction
initial begin
run();
end
endmodule
输出结果：
input本身拿到的是地址，而且是指向实例化的地址空间，可用。
但是和function void get(output my_trans a);相比，如果output改为input，整个是无法通信的，说明UVM内部通信不是简单的传递了，但是改成ref是可以通信的
input 3 2
output 3 2
ref 3 2
transport通信
要点说明
- 双向通信，响应端需要两个函数，nb_transport和transport，对应了非阻塞和阻塞。并且实例化中，前两个参数是item类型的。
module tcc ();
import uvm_pkg::*;
class my_trans extends uvm_sequence_item;
`uvm_object_utils(my_trans)
int data;
function new(string name="my_trans");
super.new(name);
endfunction : new
endclass : my_trans
class resp_trans extends uvm_sequence_item;
int resp_data;
`uvm_object_utils(resp_trans)
function new(string name="resp_trans");
super.new(name);
endfunction : new
endclass : resp_trans
class Sender extends uvm_component;
uvm_transport_port#(my_trans, resp_trans) tp;
`uvm_component_utils(Sender)
function new(string name="Sender", uvm_component parent);
super.new(name, parent);
tp = new("tp", this);
endfunction : new
endclass : Sender
class Responser extends uvm_component;
uvm_transport_imp#(my_trans, resp_trans, Responser) ti;
`uvm_component_utils(Responser)
function new(string name="Responser", uvm_component parent);
super.new(name, parent);
ti = new("ti", this);
endfunction : new
function void transport(my_trans tr, output resp_trans rtr);
rtr = new("rtr");
`uvm_info("RESP_GET", $sformatf("data value trans: %d", tr.data), UVM_LOW)
rtr.resp_data = 12;
endfunction: transport
function bit nb_transport(my_trans tr, output resp_trans rtr);
rtr = new("rtr");
`uvm_info("RESP_GET_NB", $sformatf("data value trans: %d", tr.data), UVM_LOW)
rtr.resp_data = 23;
return 1;
endfunction: nb_transport
endclass : Responser
class my_test extends uvm_test;
Responser rsper;
Sender sdr;
`uvm_component_utils(my_test)
function new(string name="my_test", uvm_component parent);
super.new(name, parent);
endfunction : new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
rsper = Responser::type_id::create("rspr", this);
sdr = Sender::type_id::create("sdr", this);
endfunction
function void connect_phase(uvm_phase phase);
super.connect_phase(phase);
sdr.tp.connect(rsper.ti);
endfunction
task run_phase(uvm_phase phase);
my_trans tr=new("rt");
resp_trans rtr;
bit status;
tr.data = 1;
phase.raise_objection(this);
sdr.tp.transport(tr, rtr);
`uvm_info("GET_DATA_SENDER", $sformatf("rtr: %d", rtr.resp_data), UVM_LOW)
status = sdr.tp.nb_transport(tr, rtr);
`uvm_info("GET_DATA_NB_SENDER", $sformatf("status %d, rtr: %d",status, rtr.resp_data), UVM_LOW)
phase.drop_objection(this);
endtask: run_phase
endclass : my_test
initial begin
run_test("my_test");
end
endmodule
运行结果
UVM_INFO @ 0: reporter [RNTST] Running test my_test...
UVM_INFO tcc.sv(46) @ 0: uvm_test_top.rspr [RESP_GET] data value trans: 1
UVM_INFO tcc.sv(85) @ 0: uvm_test_top [GET_DATA_SENDER] rtr: 12
UVM_INFO tcc.sv(52) @ 0: uvm_test_top.rspr [RESP_GET_NB] data value trans: 1
UVM_INFO tcc.sv(88) @ 0: uvm_test_top [GET_DATA_NB_SENDER] status 1, rtr: 23
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_objection.svh(1276) @ 0: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 0: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 0: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 8
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 0
** Report counts by id
[GET_DATA_NB_SENDER] 1
[GET_DATA_SENDER] 1
[RESP_GET] 1
[RESP_GET_NB] 1
[RNTST] 1
[TEST_DONE] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 527.
$finish at simulation time 0
end_of_elaboration_phase说明
说明与代码
该相位会检查之前是否有error_info出现，出现的话会调用fatal_info，然后退出。
而过了该相位在main_phase中的error_info是不会退出的。
module tdd ();
import uvm_pkg::*;
class test_base extends uvm_test;
`uvm_component_utils(test_base)
function new(string name="test_base", uvm_component parent);
super.new(name, parent);
endfunction : new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
`uvm_error("ERROR_INFO", $sformatf("this a err build_phase %m"))
`uvm_info("INFO_TEST", $sformatf("%m a info"), UVM_LOW)
endfunction
task main_phase(uvm_phase phase);
`uvm_error("ERROR_INFO", $sformatf("this a err run_phase %m"))
`uvm_info("INFO_TEST", $sformatf("%m a info"), UVM_LOW)
endtask:main_phase
task post_main_phase(uvm_phase phase);
`uvm_fatal("FATAL_INFO", $sformatf("%m fatal %m"))
`uvm_info("INFO_TEST", $sformatf("%m a info"), UVM_LOW)
endtask: post_main_phase
endclass : test_base
initial begin
run_test("test_base");
end
endmodule
输出结果
UVM_INFO @ 0: reporter [RNTST] Running test test_base...
UVM_ERROR tdd.sv(12) @ 0: uvm_test_top [ERROR_INFO] this a err build_phase tdd.\test_base::build_phase
UVM_INFO tdd.sv(13) @ 0: uvm_test_top [INFO_TEST] tdd.\test_base::build_phase a info
UVM_FATAL @ 0: reporter [BUILDERR] stopping due to build errors
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 0: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 0: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 4
UVM_WARNING : 0
UVM_ERROR : 1
UVM_FATAL : 1
** Report counts by id
[BUILDERR] 1
[ERROR_INFO] 1
[INFO_TEST] 1
[RNTST] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 135.
$finish at simulation time 0
task phase执行和跳转
要点说明
- phase的跳转前最好是drop当前的phase，否则会有警告。跳转使用phase.jump(uvm_reset_phase::get());其中的uvm_reset_phase可以换成其它phase
- 该程序是一个无限循环的错误程序，默认9200s停止，为了尽快停止，使用uvm_top.set_timeout(200s, 0)，0表示不可覆盖。如果为1，则可以在Makefile中传入参数+UVM_TIMEOUT="100s, No"，No表示不可覆盖
- +UVM_PHASE_TRACE可以显示phase的轨迹，+UVM_OBJECTION_TRACE可以显示task_phase的raise和drop轨迹
- phase.raise_objection(this, "RESET_PHASE_NAME", 3)，默认的中间参数是该raise的名称，而3表示raise的数量，默认是1、通过+UVM_OBJECTION_TRACE可以查看。
- jump的过程，向前可以跳到pre_reset_phase，向后可以跳到final_phase(function phase).
- 在同一timeslot，各个组件的task phase 的启动过程和一般多数的phase相同，是自下而上启动的，运行是并行的。
- build_phase本身过程是一棵树，虽然自上而下，但是内部是深度优先的。
- 在component中，除了build_phase的父类写有内容，其余的如run_phase\connect_phase等等，都是为空的。
module tee ();
import uvm_pkg::*;
class my_test extends uvm_test;
`uvm_component_utils(my_test)
function new(string name="my_test", uvm_component parent);
super.new(name, parent);
endfunction: new
task reset_phase(uvm_phase phase);
phase.raise_objection(this, "RESET_PHASE_NAME", 3);
`uvm_info("RESET_PHASE", $sformatf("%m reset_phase, %t", $time), UVM_LOW)
#10;
phase.drop_objection(this, "RESET_PHASE_NAME", 3);
endtask: reset_phase
task main_phase(uvm_phase phase);
phase.raise_objection(this);
fork
begin
`uvm_info("MAIN_PHASE", $sformatf("%m main_phase %t", $time), UVM_LOW)
#30;
`uvm_info("MAIN_PHASE", $sformatf("%m main_phase %t", $time), UVM_LOW)
end
begin
#10
phase.drop_objection(this);
phase.jump(uvm_reset_phase::get());
end
join
phase.drop_objection(this);
endtask: main_phase
endclass : my_test
initial begin
uvm_top.set_timeout(200s, 0);
run_test("my_test");
end
endmodule
有OBJECTION_TRACE:
点击查看代码
UVM_INFO @ 0: reporter [RNTST] Running test my_test...
UVM_INFO @ 0: reporter [TIMOUTSET] '+UVM_TIMEOUT=100s, YES' provided on the command line is being applied.
UVM_INFO @ 0: reporter [NOTIMOUTOVR] The global timeout setting of 200 is not overridable to 100 due to a previous setting.
UVM_INFO @ 0: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 0: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 0: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 0
UVM_INFO @ 10: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 10: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 10: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 10: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 10: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 10: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 10: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 10
UVM_INFO @ 20: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 20: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 20: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 20: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 20: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 20: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 20: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 20: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 20
UVM_INFO @ 30: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 30: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 30: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 30: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 30: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 30: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 30: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 30
UVM_INFO @ 40: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 40: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 40: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 40: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 40: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 40: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 40: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 40: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 40
UVM_INFO @ 50: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 50: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 50: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 50: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 50: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 50: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 50: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 50
UVM_INFO @ 60: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 60: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 60: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 60: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 60: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 60: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 60: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 60: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 60
UVM_INFO @ 70: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 70: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 70: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 70: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 70: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 70: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 70: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 70
UVM_INFO @ 80: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 80: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 80: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 80: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 80: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 80: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 80: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 80: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 80
UVM_INFO @ 90: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 90: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 90: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 90: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 90: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 90: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 90: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 90
UVM_INFO @ 100: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 100: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 100: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 100: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 100: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 100: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 100: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 100: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 100
UVM_INFO @ 110: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 110: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 110: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 110: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 110: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 110: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 110: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 110
UVM_INFO @ 120: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 120: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 120: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 120: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 120: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 120: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 120: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 120: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 120
UVM_INFO @ 130: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 130: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 130: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 130: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 130: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 130: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 130: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 130
UVM_INFO @ 140: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 140: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 140: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 140: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 140: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 140: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 140: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 140: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 140
UVM_INFO @ 150: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 150: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 150: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 150: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 150: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 150: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 150: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 150
UVM_INFO @ 160: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 160: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 160: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 160: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 160: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 160: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 160: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 160: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 160
UVM_INFO @ 170: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 170: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 170: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 170: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 170: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 170: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 170: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 170
UVM_INFO @ 180: main_objection [OBJTN_TRC] Object uvm_test_top dropped 1 objection(s): count=0 total=0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 180: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO @ 180: main_objection [OBJTN_TRC] Object uvm_test_top all_dropped 1 objection(s): count=0 total=0
UVM_INFO @ 180: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 180: main_objection [OBJTN_TRC] Object uvm_top subtracted 1 objection(s) from its total (all_dropped from source object uvm_test_top): count=0 total=0
UVM_INFO @ 180: reset_objection [OBJTN_TRC] Object uvm_test_top raised 3 objection(s) (RESET_PHASE_NAME): count=3 total=3
UVM_INFO @ 180: reset_objection [OBJTN_TRC] Object uvm_top added 3 objection(s) to its total (raised from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=3
UVM_INFO tee.sv(13) @ 180: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 180
UVM_INFO @ 190: reset_objection [OBJTN_TRC] Object uvm_test_top dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 190: reset_objection [OBJTN_TRC] Object uvm_test_top all_dropped 3 objection(s) (RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 190: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 190: reset_objection [OBJTN_TRC] Object uvm_top subtracted 3 objection(s) from its total (all_dropped from source object uvm_test_top, RESET_PHASE_NAME): count=0 total=0
UVM_INFO @ 190: main_objection [OBJTN_TRC] Object uvm_test_top raised 1 objection(s): count=1 total=1
UVM_INFO @ 190: main_objection [OBJTN_TRC] Object uvm_top added 1 objection(s) to its total (raised from source object uvm_test_top): count=0 total=1
UVM_INFO tee.sv(22) @ 190: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 190
UVM_FATAL /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1510) @ 200: reporter [PH_TIMEOUT] Explicit timeout of 200 hit, indicating a probable testbench issue
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 200: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 200: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 150
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 1
** Report counts by id
[MAIN_PHASE] 10
[NOTIMOUTOVR] 1
[OBJTN_TRC] 116
[PH_JUMP] 9
[PH_TIMEOUT] 1
[RESET_PHASE] 10
[RNTST] 1
[TIMOUTSET] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 135.
$finish at simulation time 200
没有OBJECTION_TRACE：
点击查看代码
UVM_INFO @ 0: reporter [RNTST] Running test my_test...
UVM_INFO tee.sv(13) @ 0: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 0
UVM_INFO tee.sv(22) @ 10: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 10
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 20: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 20: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 20
UVM_INFO tee.sv(22) @ 30: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 30
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 40: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 40: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 40
UVM_INFO tee.sv(22) @ 50: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 50
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 60: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 60: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 60
UVM_INFO tee.sv(22) @ 70: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 70
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 80: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 80: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 80
UVM_INFO tee.sv(22) @ 90: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 90
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 100: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 100: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 100
UVM_INFO tee.sv(22) @ 110: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 110
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 120: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 120: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 120
UVM_INFO tee.sv(22) @ 130: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 130
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 140: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 140: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 140
UVM_INFO tee.sv(22) @ 150: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 150
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 160: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 160: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 160
UVM_INFO tee.sv(22) @ 170: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 170
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1556) @ 180: reporter [PH_JUMP] phase main (schedule uvm_sched, domain uvm) is jumping to phase reset
UVM_INFO tee.sv(13) @ 180: uvm_test_top [RESET_PHASE] tee.\my_test::reset_phase reset_phase, 180
UVM_INFO tee.sv(22) @ 190: uvm_test_top [MAIN_PHASE] tee.\my_test::main_phase main_phase 190
UVM_FATAL /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_phase.svh(1510) @ 200: reporter [PH_TIMEOUT] Explicit timeout of 200 hit, indicating a probable testbench issue
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 200: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 200: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 32
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 1
** Report counts by id
[MAIN_PHASE] 10
[PH_JUMP] 9
[PH_TIMEOUT] 1
[RESET_PHASE] 10
[RNTST] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 135.
$finish at simulation time 200
task的域domain
要点说明
- 默认的时间域为common_domain
- uvm_domain定义出一个domain，实例化以后，可以设置：set_domain(domain_name)
- uvm_domain的类型继承于uvm_phase，继承于uvm_object，继承于uvm_void
- 在不同的领域下，则其中的task_phase内的小phase是异步的。而run_phase、以及其它的function phase，仍然是是同步的。
- 调用在connect_phase中，是要等组件们都实例化。默认的set_domain有第二的参数hier，默认是继承的，为1.
module tff ();
import uvm_pkg::*;
class my_env1 extends uvm_component;
`uvm_component_utils(my_env1)
function new(string name="my_env1", uvm_component parent);
super.new(name, parent);
endfunction: new
task reset_phase(uvm_phase phase);
phase.raise_objection(this);
#10;
`uvm_info("RESET_PH", $sformatf("10 is finish"), UVM_LOW)
phase.drop_objection(this);
endtask: reset_phase
endclass : my_env1
class my_env2 extends uvm_component;
`uvm_component_utils(my_env2)
uvm_domain env2_domain;
function new(string name="my_env2", uvm_component parent);
super.new(name, parent);
env2_domain = new("env2_domain_name");
endfunction: new
function void connect_phase(uvm_phase phase);
super.connect_phase(phase);
set_domain(env2_domain);
endfunction:connect_phase
task reset_phase(uvm_phase phase);
#1;
`uvm_info("ENV2_RESET", $sformatf("1 is finish"), UVM_LOW)
endtask: reset_phase
endclass : my_env2
class base_test extends uvm_test;
`uvm_component_utils(base_test)
my_env1 env1;
my_env2 env2;
function new(string name="base_test", uvm_component parent);
super.new(name, parent);
endfunction: new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
env1 = my_env1::type_id::create("env1", this);
env2 = my_env2::type_id::create("env2", this);
endfunction: build_phase
endclass : base_test
initial begin
run_test("base_test");
end
endmodule
输出结果为
注释掉set_domain(env2_domain);，则不同。
UVM_INFO @ 0: reporter [RNTST] Running test base_test...
UVM_INFO tff.sv(15) @ 10: uvm_test_top.env1 [RESET_PH] 10 is finish
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 10: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 10: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 4
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 0
** Report counts by id
[RESET_PH] 1
[RNTST] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 527.
$finish at simulation time 10
sequence发送
要点说明
- uvm_do_on_pri_with(trans, seqr, weight, constraint)，可以去掉on、pri，或者with，都是发送的宏。分别表示了发送的内容，由谁发送，发送权重，以及约束。
- pri是优先级，默认优先级为-1，为低，数字越高则优先级越高。
- seq并行发送的时候，默认是fifo形式的，即不考虑优先级，不考虑随机性等。

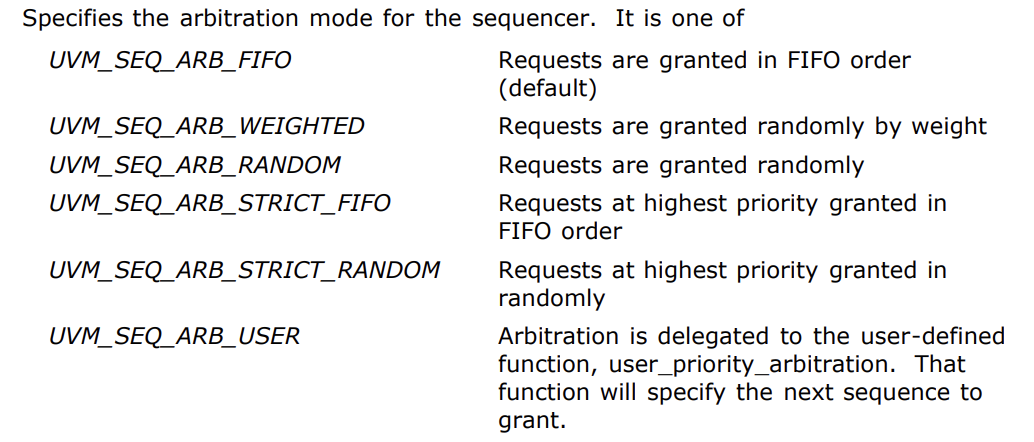

- seqr.set_arbitration()设置一个seqr上有多个seq发送的仲裁算法，UVM1.2变更了该方法为：添加了UVM_前缀。
- 其中的STRICT可以实现优先级控制，RANDOM完全随机，WEIGHT考虑权重。严格的FIFO、严格RANDOM，使得优先级更高的一直先发送。
- seqr内部是一个fifo的，而seq发送的时候按照该fifo顺序。
- lock、unlock用于锁定，在该seq_item到达后获得对seqr的独享权限，直到释放。
- grab、ungrab用于锁定，直接放到seqr的fifo队列最前，获得独享后，直到释放。
- function is_relevant 是在每次发送前检查的，返回值是0则该seq失效，不再发送。
- task wait_for_relevant和is_relevant配合，等到所有seq失效或者发送完，执行该函数，然后使得失效的seq重新生效。
- 必须使得is_relevant重新生效，否则该失效一直持续，则一直执行wait_for_relevant可能导致死循环（可能）
- uvm_create宏用于实例化seq_item，uvm_send_pri用于带着优先级发送。而添加约束则需要uvm_rand_send_pri_with，带着优先级和约束。uvm_create可以使用new替代，使用这样而不是uvm_do_on_pri_with的整套宏，可以使用randc等的方式，用同一块内存。
- uvm_send的本质上是uvm_do去掉了实例化过程（手册1.2）
- uvm_do的宏，包括了start_item\finish_item两个步骤。而其中的start_item有两个task，后一个task是pre_do。finish_item有一些function和task，最前的是function的mid_do，最后的是function的post_do
module tgg ();
import uvm_pkg::*;
class my_trans extends uvm_sequence_item;
rand int data;
`uvm_object_utils(my_trans)
function new(string name="my_trans");
super.new(name);
endfunction: new
endclass: my_trans
class my_seq1 extends uvm_sequence#(my_trans);
`uvm_object_utils(my_seq1)
my_trans mtr;
bit pre_mid_post=0;
function new(string name="my_seq1");
super.new(name);
endfunction: new
task body();
lock();
/* grab(); */
repeat (5) begin
`uvm_do_pri_with(mtr, 100, {data==1;})
end
unlock();
/* ungrab(); */
repeat (4) begin
`uvm_create(mtr);
`uvm_rand_send_pri_with(mtr, 100, {data==1;})
end
pre_mid_post = 1;
mtr = new("mtr");
start_item(mtr);
mtr.randomize() with {data==1;};
finish_item(mtr);
endtask: body
task pre_do(bit is_item);
if (pre_mid_post) begin
`uvm_info("PRE_DO", $sformatf("vaule param is %d", is_item), UVM_LOW)
end
endtask: pre_do
function void mid_do(uvm_sequence_item this_item);
my_trans mtr;
if (pre_mid_post) begin
$cast(mtr, this_item);
mtr.data +=10;
`uvm_info("MID_DO", $sformatf("value param is %d", mtr.data), UVM_LOW)
end
endfunction: mid_do
function void post_do(uvm_sequence_item this_item);
my_trans mtr;
if (pre_mid_post) begin
$cast(mtr, this_item);
`uvm_info("POST_DO", $sformatf("value param is %d", mtr.data), UVM_LOW)
end
endfunction: post_do
endclass: my_seq1
class my_seq2 extends uvm_sequence#(my_trans);
`uvm_object_utils(my_seq2)
my_trans mtr;
int count=0;
function new(string name="my_seq2");
super.new(name);
endfunction: new
task body();
repeat (20) begin
`uvm_do_on_pri_with(mtr, this.m_sequencer, 500, {data==2;});
count++;
end
endtask: body
function bit is_relevant();
if (count>=10) begin
return 0;
/* return 1; */
end else begin
return 1;
end
endfunction: is_relevant
task wait_for_relevant();
#2;
count = 0;
endtask: wait_for_relevant
endclass: my_seq2
typedef uvm_sequencer#(my_trans) my_seqr;
class my_drv extends uvm_driver#(my_trans);
`uvm_component_utils(my_drv)
function new(string name="my_drv", uvm_component parent);
super.new(name, parent);
endfunction: new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
endfunction: build_phase
task run_phase(uvm_phase phase);
my_trans mtr;
forever begin
seq_item_port.get_next_item(mtr);
`uvm_info("GET_DATA", $sformatf("%t, message %d",$time, mtr.data), UVM_LOW)
seq_item_port.item_done();
end
endtask: run_phase
endclass: my_drv
class my_test extends uvm_test;
my_seqr seqr;
my_drv drv;
`uvm_component_utils(my_test)
function new(string name="my_test", uvm_component parent);
super.new(name, parent);
endfunction: new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
seqr = my_seqr::type_id::create("seqr", this);
drv = my_drv::type_id::create("drv", this);
/* seqr.set_arbitration(UVM_SEQ_ARB_STRICT_FIFO); */
/* seqr.set_arbitration(UVM_SEQ_ARB_RANDOM); */
seqr.set_arbitration(UVM_SEQ_ARB_WEIGHTED);
/* seqr.set_arbitration(UVM_SEQ_ARB_STRICT_RANDOM); */
endfunction: build_phase
function void connect_phase(uvm_phase phase);
drv.seq_item_port.connect(seqr.seq_item_export);
endfunction: connect_phase
task run_phase(uvm_phase phase);
my_seq1 seq1 = new("seq1");
my_seq2 seq2 = new("seq2");
phase.raise_objection(this);
fork
seq2.start(seqr);
seq1.start(seqr);
join
#10;
phase.drop_objection(this);
endtask: run_phase
endclass: my_test
initial begin
run_test("my_test");
end
endmodule
输出结果
- 2的优先级高，先发送，但是1有lock，所以等到fifo后独占，如果是grab，则直接独占。
- 显示了pre_do\mid_do\post_do的过程，参数为is_item, this_item, this_item，用的时候需要cast转化。
- 2因为num计数达到，先发送，但是到10个就失效了，
- 等到时间为2的时候，生效，继续发送。
UVM_INFO @ 0: reporter [RNTST] Running test my_test...
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 2
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 1
UVM_INFO tgg.sv(43) @ 0: uvm_test_top.seqr@@seq1 [PRE_DO] vaule param is 1
UVM_INFO tgg.sv(52) @ 0: uvm_test_top.seqr@@seq1 [MID_DO] value param is 11
UVM_INFO tgg.sv(112) @ 0: uvm_test_top.drv [GET_DATA] 0, message 11
UVM_INFO tgg.sv(60) @ 0: uvm_test_top.seqr@@seq1 [POST_DO] value param is 11
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO tgg.sv(112) @ 2: uvm_test_top.drv [GET_DATA] 2, message 2
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_objection.svh(1276) @ 12: reporter [TEST_DONE] 'run' phase is ready to proceed to the 'extract' phase
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_catcher.svh(705) @ 12: reporter [UVM/REPORT/CATCHER]
--- UVM Report catcher Summary ---
Number of demoted UVM_FATAL reports : 0
Number of demoted UVM_ERROR reports : 0
Number of demoted UVM_WARNING reports: 0
Number of caught UVM_FATAL reports : 0
Number of caught UVM_ERROR reports : 0
Number of caught UVM_WARNING reports : 0
UVM_INFO /home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_report_server.svh(894) @ 12: reporter [UVM/REPORT/SERVER]
--- UVM Report Summary ---
** Report counts by severity
UVM_INFO : 37
UVM_WARNING : 0
UVM_ERROR : 0
UVM_FATAL : 0
** Report counts by id
[GET_DATA] 30
[MID_DO] 1
[POST_DO] 1
[PRE_DO] 1
[RNTST] 1
[TEST_DONE] 1
[UVM/RELNOTES] 1
[UVM/REPORT/CATCHER] 1
$finish called from file "/home/synopsys/vcs-mx/O-2018.09-1/etc/uvm-1.2/base/uvm_root.svh", line 527.
$finish at simulation time 12
Le vent se lève! . . . il faut tenter de vivre!
Le vent se lève! . . . il faut tenter de vivre!
浙公网安备 33010602011771号
