gRPC接入SpringBoot 2.x

对RPC有了初步了解之后，已知在高性能低延迟的场景下，可能RPC调用更适合作为系统服务之间的调用工具。

以下即为gRPC接入SpringBoot 的示例



一、创建server端project

framework	version
SpringBoot	2.5.8
gRPC	1.42.2
protobuf-maven-plugin	0.6.1
os-maven-plugin	1.6.2



1、添加依赖

server端pom.xml

 <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <!-- 父依赖 -->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.8</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <groupId>org.ashe</groupId>
    <artifactId>rpc</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-spring-boot-starter</artifactId>
            <version>2.13.1.RELEASE</version> <!-- 适用于 Spring Boot 2.x -->
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-protobuf</artifactId>
            <version>1.42.2</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-stub</artifactId>
            <version>1.42.2</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-netty-shaded</artifactId>
            <version>1.42.2</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

    </dependencies>

    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.6.2</version>
            </extension>
        </extensions>

        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.6.1</version>
                <configuration>
                    <!--suppress UnresolvedMavenProperty -->
                    <protocArtifact>com.google.protobuf:protoc:3.21.1:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <!--suppress UnresolvedMavenProperty -->
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.48.0:exe:${os.detected.classifier}</pluginArtifact>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>


</project>



2、定义.proto文件

在项目的src/main/proto目录下（如果没有则创建），定义你的服务.proto文件（比如rpc.proto）。

rpc.proto

 syntax = "proto3";

option java_multiple_files = true;
option java_package = "org.ashe.grpc";

service HelloService {
  rpc SayHello (HelloRequest) returns (HelloResponse);
}

message HelloRequest {
  string name = 1;
}

message HelloResponse {
  string message = 1;
}



3、生成代码

mvn clean compile

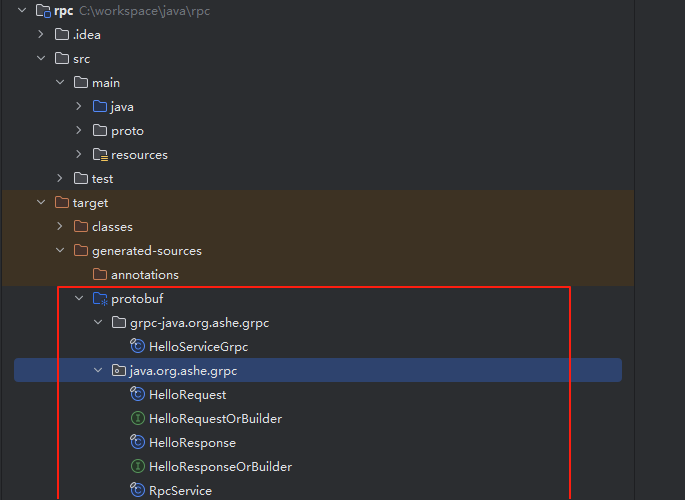

在target目录下可以看到生成的代码



4、创建sayHello服务

查看代码

 @GrpcService
public class HelloServiceImpl extends org.ashe.grpc.HelloServiceGrpc.HelloServiceImplBase {

    @Override
    public void sayHello(org.ashe.grpc.HelloRequest request, StreamObserver<org.ashe.grpc.HelloResponse> responseObserver) {
        // 提供的服务就简单的hello一下，这里的getName是因为在.proto文件中定义了请求体中的name属性
        String name = request.getName();
        String message = "Hello, " + name;

        org.ashe.grpc.HelloResponse response = org.ashe.grpc.HelloResponse.newBuilder()
                .setMessage(message)
                .build();

        responseObserver.onNext(response);
        responseObserver.onCompleted();
    }


}



从这里可以感受到RPC的理念是让开发者关注网络连接后的行为，不去关心网络连接的细节



二、创建client端project

1、添加依赖



client端pom.xml

 <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.ashe</groupId>
    <artifactId>rpc_client</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-netty-shaded</artifactId>
            <version>1.70.0</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-protobuf</artifactId>
            <version>1.70.0</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-stub</artifactId>
            <version>1.70.0</version>
        </dependency>

    </dependencies>

    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.6.2</version>
            </extension>
        </extensions>

        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.6.1</version>
                <configuration>
                    <!--suppress UnresolvedMavenProperty -->
                    <protocArtifact>com.google.protobuf:protoc:3.21.1:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <!--suppress UnresolvedMavenProperty -->
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.48.0:exe:${os.detected.classifier}</pluginArtifact>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>



2、定义.proto文件

在项目的src/main/proto目录下（如果没有则创建），定义你的服务.proto文件（比如client.proto）。

client.proto

 syntax = "proto3";

option java_multiple_files = true;
option java_package = "org.ashe";

service HelloService {
  rpc SayHello (HelloRequest) returns (HelloResponse);
}

message HelloRequest {
  string name = 1;
}

message HelloResponse {
  string message = 1;
}



3、生成代码

mvn clean compile

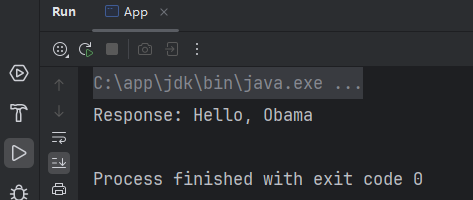

4.Main方法调用server端的sayHello服务

查看代码

 package org.ashe;

import io.grpc.ManagedChannel;
import io.grpc.ManagedChannelBuilder;

public class App {
    public static void main(String[] args) {
        // port要对应上server端应用的port
        ManagedChannel channel = ManagedChannelBuilder.forAddress("localhost",9090)
                .usePlaintext()
                .build();
        org.ashe.HelloServiceGrpc.HelloServiceBlockingStub stub = org.ashe.HelloServiceGrpc.newBlockingStub(channel);

        org.ashe.HelloRequest request = org.ashe.HelloRequest.newBuilder().setName("Obama").build();
        org.ashe.HelloResponse response = stub.sayHello(request);
        System.out.println("Response: " + response.getMessage());

        channel.shutdown();
    }
}
