实验12 SSH

实验任务一：SSH客户端登陆到服务器端

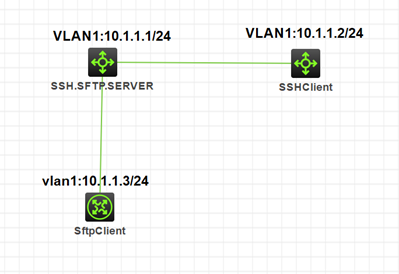

1. 建立物理连接


2. 配置SSH客户端SWA
   [SwitchA]INT VLAN 1
   [SwitchA-Vlan-interface1]ip ad 10.1.1.2 24
   [SwitchA]public-key local create dsa //生成DSA密钥对
   The range of public key modulus is (512 ~ 2048).
   If the key modulus is greater than 512, it will take a few minutes.
   Press CTRL+C to abort.
   Input the modulus length [default = 1024]:1024
   Generating Keys...
   ..
   Create the key pair successfully.
   [SwitchA]public-key local export dsa ssh2 key.pub
   //将生成的DSA主机公钥导出到只等KEY.PUB中，并上传到服务器的flash中。

3. 配置SSH服务器
   [SwitchB]int Vlan-interface 1
   [SwitchB-Vlan-interface1]ip ad 10.1.1.1 24
   [SwitchB]public-key local create dsa
   The local key pair already exists.
   Confirm to replace it? [Y/N]:y
   The range of public key modulus is (512 ~ 2048).
   If the key modulus is greater than 512, it will take a few minutes.
   Press CTRL+C to abort.
   Input the modulus length [default = 1024]:1024
   Generating Keys...
   .
   Create the key pair successfully.
   [SwitchB]public-key local create rsa
   The range of public key modulus is (512 ~ 2048).
   If the key modulus is greater than 512, it will take a few minutes.
   Press CTRL+C to abort.
   Input the modulus length [default = 1024]:1024
   Generating Keys...
   .
   Create the key pair successfully.
   [SwitchB]ssh server enable

[SwitchB]user-interface vty 0 63
[SwitchB-line-vty0-63]authentication-mode scheme
//设置SSH用户界面的认证方式为AAA认证
[SwitchB-line-vty0-63]protocol inbound ssh
//设置SWB远程用户登录协议为SSH
[SwitchB-line-vty0-63]user-role level-15

[SwitchB]public-key peer Switch001 import sshkey key.pub
Failed to read the file.//奇怪的是没办法读取到远端的公钥。
[SwitchB]ssh user client002 service-type stelnet authentication-type publickey a
ssign publickey Switch001
4．登陆到服务器端
ssh2 10.1.1.1
//理论上是可以登陆到服务器
5.检查SSH相关表项，能查看到SSH登陆用户
display ssh server session
UserPid SessID Ver Encrypt State Retries Serv Username

6.指定SSH客户端的源IP
[SwitchA]ssh client source ip 2.2.2.2
ssh2 10.1.1.1
Username: client002
Press CTRL+C to abort.
Connecting to 10.1.1.1 port 22.

[SwitchA]ssh client source ip 10.1.1.2
[SwitchA]qui
ssh2 10.1.1.1
Username: client002
Press CTRL+C to abort.
Connecting to 10.1.1.1 port 22.

实验任务二：SFTP客户端登陆到服务器端

1. 配置SFTP服务器SWB
   [SwitchB]public-key local create dsa
   [SwitchB]public-key local create rsa
   [SwitchB]sftp server enable

2. 创建本地用户testssh
   [SwitchB]local-user testssh class manage
   New local user added.
   [SwitchB-luser-manage-testssh]password simple aabbcc
   [SwitchB-luser-manage-testssh]service-type ssh
   [SwitchB]ssh user testssh service-type sftp authentication-type password
   //SSH用户认证方式为Password，服务类型为SFTP
   [SwitchB-luser-manage-testssh]authorization-attribute user-role network-admin
   3.SFTP客户端登陆服务器
   //开始只能出现这个，因为没有配置红色的命令，权限不足打不开文件
   sftp 10.1.1.1
   Username: testssh
   Press CTRL+C to abort.
   Connecting to 10.1.1.1 port 22.
   testssh@10.1.1.1's password:
   sftp>
   sftp>
   sftp> dir
   Couldn't read directory, Permission denied.
   //配置了权限后，可以看到sftp服务器的文件。
   sftp 10.1.1.1
   Username: testssh
   Press CTRL+C to abort.
   Connecting to 10.1.1.1 port 22.
   testssh@10.1.1.1's password:
   sftp>
   sftp>
   sftp> dir
   drwxrwxrwx 2 1 1 4096 Jun 2 20:08 diagfile
   -rwxrwxrwx 1 1 1 567 Jun 2 20:18 dsakey
   -rwxrwxrwx 1 1 1 735 Jun 2 20:18 hostkey
   -rwxrwxrwx 1 1 1 21632 Jun 2 20:08 licbackup
   drwxrwxrwx 3 1 1 4096 Jun 2 20:08 license
   -rwxrwxrwx 1 1 1 21632 Jun 2 20:08 licnormal
   drwxrwxrwx 2 1 1 4096 Jun 2 20:08 logfile
   -rwxrwxrwx 1 1 1 0 Jun 2 20:08 s5820v2_5830v2-cmw710-boot-a7514.bin
   -rwxrwxrwx 1 1 1 0 Jun 2 20:08 s5820v2_5830v2-cmw710-system-a7514.bin
   drwxrwxrwx 2 1 1 4096 Jun 2 20:08 seclog
   -rwxrwxrwx 1 1 1 591 Jun 2 20:18 serverkey
   sftp>

//ssh1与SSH2协议不兼容，意味着SSH1的客户端不能与允许SSH2的服务器连接。
