【Kubernetes】集成ELK收集日志
Kubernetes集成ELK日志
由于我们使用Helm部署ELK，这里将分别部署Elasticsearch、Kibana和Logstash。同时，我们还需要部署Filebeat作为日志收集器
步骤：
- 添加Elastic Helm仓库
- 部署Elasticsearch
- 部署Kibana
- 部署Logstash（可选，因为Filebeat也可以直接发送到Elasticsearch，但通常用于更复杂的处理）
- 部署Filebeat
各组件说明
Elasticsearch: 一个分布式、RESTful 风格的搜索和分析引擎。它是整个架构的核心，负责存储、搜索和分析从各种来源收集来的海量数据
Kibana: 一个为 Elasticsearch 设计的开源数据可视化和管理工具。用户可以通过 Kibana 在网页上直接与 Elasticsearch 中的数据交互
Logstash: 一个服务器端的数据处理管道，可以同时从多个来源接收数据，对数据进行转换和丰富，然后将其发送到像 Elasticsearch 这样的“存储库”中
Filebeat: 一个轻量级的、用于转发和集中日志数据的工具。Filebeat 被安装在需要收集日志的服务器上，监视指定的日志文件或位置，并将日志事件转发到 Logstash 或 Elasticsearch 进行索引
一个最常见的数据流是这样的：
应用日志 --> Filebeat --> Logstash --> Elasticsearch --> Kibana
前置条件
- 一个正在运行的 Kubernetes 集群。
参考: k8s入门
- 已安装
kubectl并配置好对集群的访问
- 已安装
Helm。
参考: k8s使用helm简化安装
部署ELK Stack到Kubernetes
1. 添加Elastic Helm仓库
# 添加Elastic官方仓库
helm repo add elastic https://helm.elastic.co
helm repo update elastic
2. 创建命名空间
kubectl create namespace logging
3. 部署Elasticsearch
3.1 创建自定义values文件
elasticsearch-values.yaml
# elasticsearch-values.yaml
clusterName: "elasticsearch"
nodeGroup: "master"
replicas: 2
# 资源配置
resources:
requests:
cpu: "1000m"
memory: "2Gi"
limits:
cpu: "2000m"
memory: "4Gi"
# 持久化配置
volumeClaimTemplate:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "local-path" # 根据你的存储类修改
resources:
requests:
storage: 50Gi
# 配置参数
esConfig:
elasticsearch.yml: |
xpack.security.enabled: true
xpack.monitoring.collection.enabled: true
# 环境变量
extraEnvs:
- name: "ES_JAVA_OPTS"
value: "-Xms2g -Xmx2g"
# 启用服务
service:
type: ClusterIP
loadBalancerIP: ""
# 安全配置
secret:
enabled: true
passwords:
elastic: "admin123!" # 修改为强密码
# 探针配置
readinessProbe:
failureThreshold: 3
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 3
timeoutSeconds: 5
livenessProbe:
failureThreshold: 3
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 3
timeoutSeconds: 5
3.2 部署Elasticsearch
helm install elasticsearch elastic/elasticsearch \
--namespace logging \
--values elasticsearch-values.yaml \
--version 8.5.1
3.3 验证Elasticsearch部署
# 检查Pod状态
kubectl get pods -n logging -l app=elasticsearch-master
# 检查服务
kubectl get svc -n logging
# 端口转发
kubectl port-forward svc/elasticsearch-master -n logging 9200:9200
# curl
curl -u elastic:elastic123! http://localhost:9200
正常应该有下面这样输出
{
"name" : "elasticsearch-master-0",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "iZdUU_7eSDGOtwcg6KqRaQ",
"version" : {
"number" : "7.17.3",
"build_flavor" : "default",
"build_type" : "docker",
"build_hash" : "5ad023604c8d7416c9eb6c0eadb62b14e766caff",
"build_date" : "2022-04-19T08:11:19.070913226Z",
"build_snapshot" : false,
"lucene_version" : "8.11.1",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
4. 部署Kibana
4.1 创建Kibana values文件
kibana-values.yaml
# kibana-values.yaml
elasticsearchHosts: "http://elasticsearch-master.logging.svc.cluster.local:9200"
# 服务配置
service:
type: LoadBalancer # 或者使用NodePort/ClusterIP + Ingress
loadBalancerIP: ""
port: 5601
# Elasticsearch连接配置
elasticsearch:
username: "elastic"
password: "YourElasticPassword123" # 与Elasticsearch相同的密码
# 配置参数
kibanaConfig:
kibana.yml: |
server:
name: kibana
host: "0.0.0.0"
monitoring:
ui:
enabled: true
xpack:
security:
enabled: true
# 探针配置
readinessProbe:
httpGet:
path: /api/status
port: 5601
initialDelaySeconds: 10
timeoutSeconds: 5
periodSeconds: 10
livenessProbe:
httpGet:
path: /api/status
port: 5601
initialDelaySeconds: 10
timeoutSeconds: 5
periodSeconds: 30
4.2 部署Kibana
helm install kibana elastic/kibana \
--namespace logging \
--values kibana-values.yaml \
--version 7.17.3
4.3 访问Kibana
kubectl get svc -n logging kibana-kibana
kubectl port-forward -n logging svc/kibana-kibana 5601:5601
访问 http://localhost:5601，用户名：elastic，密码：elastic123!
4.4 使用Ingress暴露Kibana
kibana-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kibana-ingress
namespace: logging
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
nginx.ingress.kubernetes.io/ssl-redirect: "false"
nginx.ingress.kubernetes.io/force-ssl-redirect: "false"
spec:
ingressClassName: nginx
rules:
- host: kibana.wilson.local
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kibana-kibana
port:
number: 5601
部署Kibana Ingress
kubectl apply -f kibana-ingress.yaml
5. 部署Filebeat
5.1 创建Filebeat values文件
创建 filebeat-values.yaml
# filebeat-values-clean.yaml
clusterRoleRules:
- apiGroups: [coordination.k8s.io]
resources: [leases]
verbs: ['get', 'create', 'update']
- apiGroups: [""]
resources: ["nodes", "nodes/stats", "events", "endpoints", "pods", "services"]
verbs: ["get", "list", "watch"]
# 如果不需要采集容器日志，可以注释掉以下部分
daemonset:
enabled: true
# 确保卷定义不重复
volumes:
- name: varlog
hostPath:
path: /var/log
- name: varlibdockercontainers
hostPath:
path: /var/lib/docker/containers
- name: varlogpods
hostPath:
path: /var/log/pods
- name: varlibcontainers
hostPath:
path: /var/lib/containers
volumeMounts:
- name: varlog
mountPath: /var/log
readOnly: true
- name: varlibdockercontainers
mountPath: /var/lib/docker/containers
readOnly: true
- name: varlogpods
mountPath: /var/log/pods
readOnly: true
- name: varlibcontainers
mountPath: /var/lib/containers
readOnly: true
# 环境变量配置 - 确保不重复
env:
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
filebeatConfig:
filebeat.yml: |
filebeat.inputs:
- type: container
paths:
- /var/log/containers/*.log
processors:
- add_kubernetes_metadata:
host: ${NODE_NAME}
matchers:
- logs_path:
logs_path: "/var/log/containers/"
output.elasticsearch:
hosts: ['elasticsearch-master:9200']
username: "elastic"
password: "elastic123!"
5.2 部署Filebeat
helm install filebeat elastic/filebeat \
--namespace logging \
--values filebeat-values.yaml \
--version 7.17.3
5.3 验证Filebeat部署
kubectl get pods --namespace=logging -l app=filebeat-filebeat -w
kubectl get svc -n logging
6. 部署Logstash
6.1 创建Logstash values文件
创建 logstash-values.yaml
6.2 部署Logstash
helm install logstash elastic/logstash \
--namespace logging \
--values logstash-values.yaml \
--version 7.17.3
6.3 验证Logstash部署
kubectl get pods --namespace=logging -l app=logstash-logstash -w
测试日志收集
kubectl run test-logger --image=busybox --restart=Never -- /bin/sh -c 'i=0; while true; do echo "$(date) - Test log message $i"; i=$((i+1)); sleep 5; done'
在Kibana中创建索引模式并查看日志
Java应用日志写入ELK
Java应用 → 日志文件 → Filebeat → Logstash → Elasticsearch → Kibana
添加依赖
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
<version>7.4</version>
</dependency>
Logback 配置
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
<!-- 控制台输出 -->
<appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
</encoder>
</appender>
<!-- 文件输出 -->
<appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<file>logs/app.log</file>
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>logs/app.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<maxHistory>30</maxHistory>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
</rollingPolicy>
<encoder>
<pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
</encoder>
</appender>
<!-- Logstash JSON 输出 -->
<appender name="LOGSTASH" class="ch.qos.logback.core.rolling.RollingFileAppender">
<file>logs/logstash.json</file>
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>logs/logstash.%d{yyyy-MM-dd}.%i.json</fileNamePattern>
<maxHistory>7</maxHistory>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>100MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
</rollingPolicy>
<encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers>
<timestamp/>
<version/>
<logLevel/>
<loggerName/>
<message/>
<mdc/>
<stackTrace/>
<threadName/>
<pattern>
<pattern>
{
"app": "spring-k8s-demo",
"env": "${ENV:-dev}"
}
</pattern>
</pattern>
</providers>
</encoder>
</appender>
<root level="INFO">
<appender-ref ref="CONSOLE" />
<appender-ref ref="FILE" />
<appender-ref ref="LOGSTASH" />
</root>
</configuration>
应用写入日志
@GetMapping("/")
public String hello() {
if (firstTime == null) {
firstTime = new Date();
}
// 测试日志
logger.info("request in " + formatter.format(new Date()));
return "Hello from Spring Boot on Kubernetes! first time: " + formatter.format(firstTime);
}

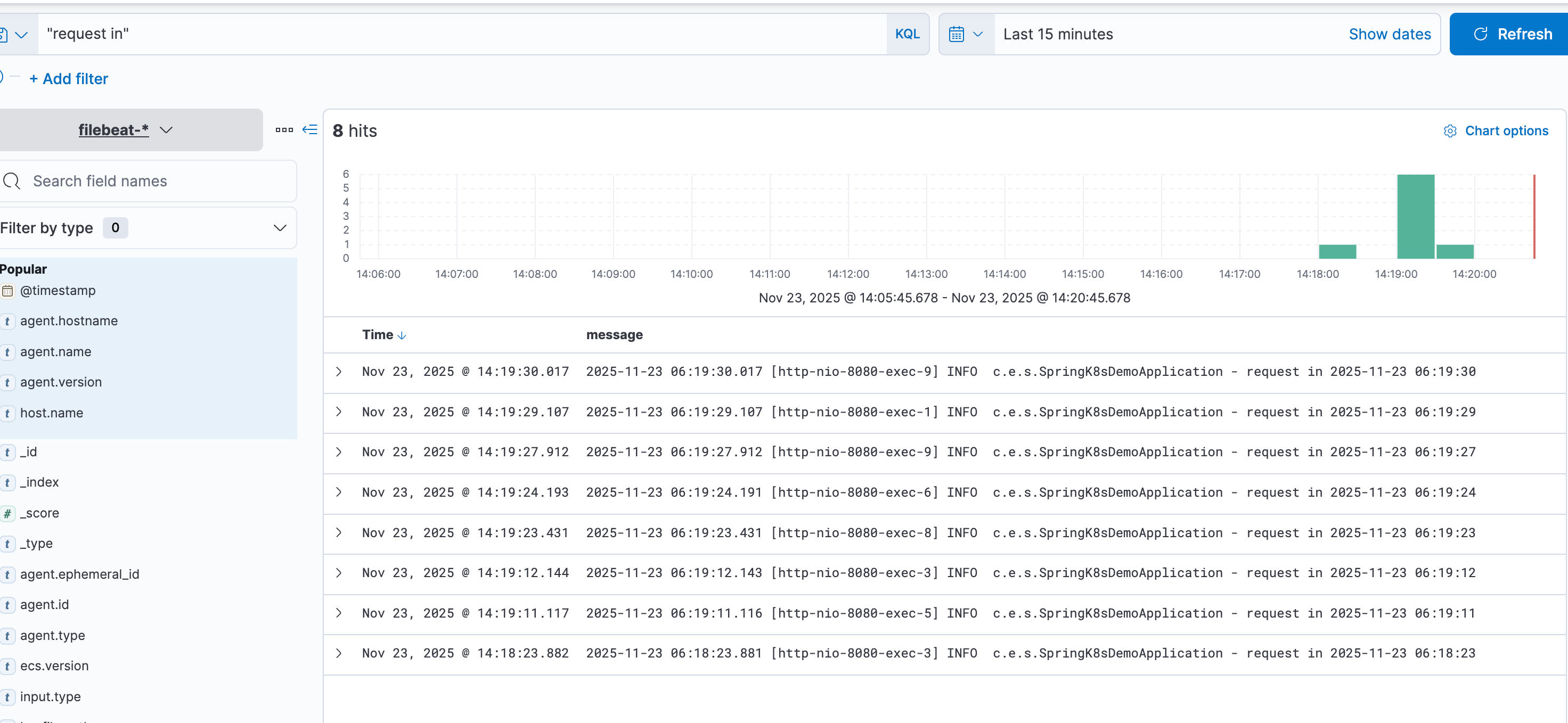

Kibana 搜索日志
清理资源
# 删除所有ELK组件
helm uninstall filebeat -n logging
helm uninstall logstash -n logging
helm uninstall kibana -n logging
helm uninstall elasticsearch -n logging
# 删除命名空间
kubectl delete namespace logging
# 清理持久卷（如果不再需要）
kubectl delete pvc -n logging --all
