2025腾讯游戏安全技术竞赛PC端初赛wp
还不是很会调驱动，所以这次都是做的静态分析
ACEFirstRound.exe

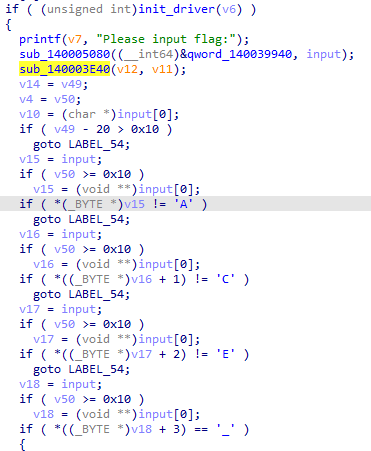

挂载完驱动后，首先对输入进行前四位的判断，要求前四位为“ACE_”

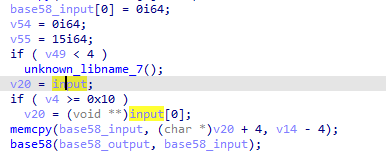

然后对输入进行base58

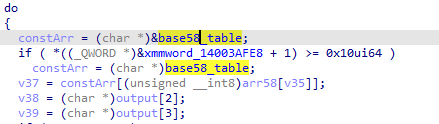

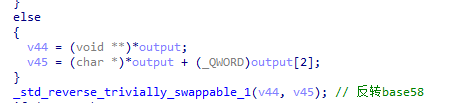

base58函数中使用了自定义的base58表，同时在base58后对结果进行了反转

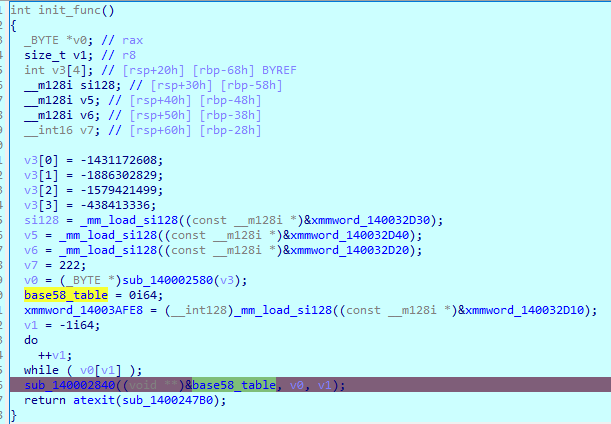

查看base58表的交叉引用，发现在sub_140001000进行了初始化，动态调试dump出表abcdefghijkmnopqrstuvwxyzABCDEFGHJKLMNPQRSTUVWXYZ1234567890!@+/

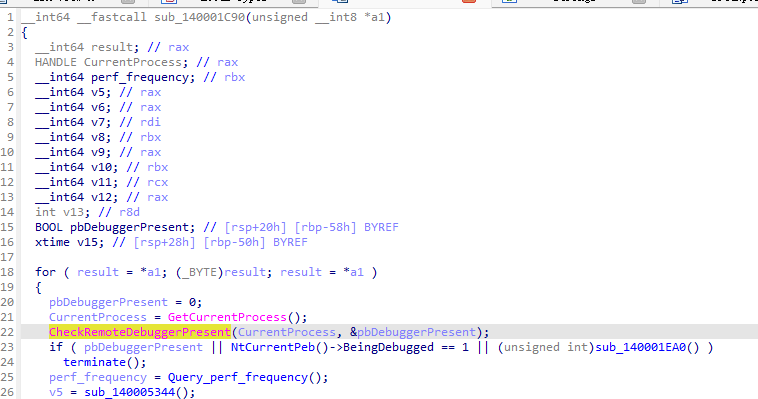

动态调试前需要绕过140001c90处的反调，这里是开了一个线程来反调，直接patch掉函数ret就行

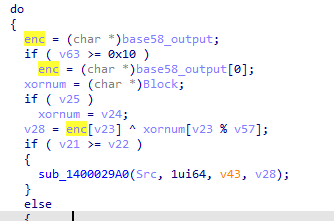

后面对base58编码后的结果进行了异或

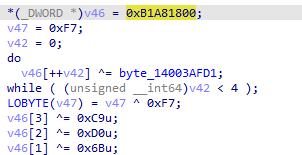

异或的数组来自v46，v46中数据为{0x18,0xa8,0xb1}异或{0x6b,0xd0,0xc9}后的结果，即"sxx"

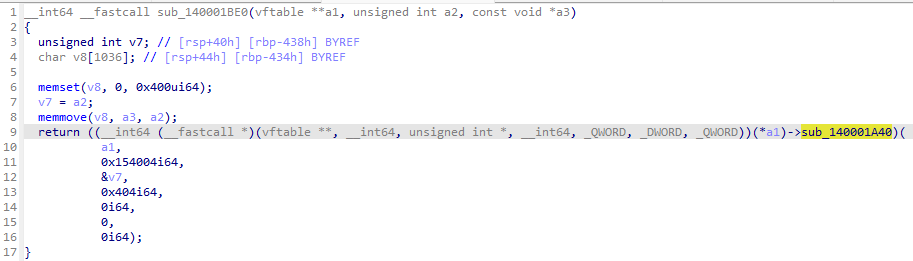

最后调用虚表中的函数进行check
一路跟进发现是调用了FilterSendMessage与驱动进行通信
ACEDriver.sys
发现驱动层有tvm混淆，但混淆强度不大，都是简单的花指令，大致为把跳转地址存入寄存器中再jmp，用特征码大法把push和pop中间的代码nop掉就可以了（有些混淆的跳转地址是跳转到别的地方，这里也是直接nop掉了，但不影响分析程序的大致逻辑）
#patch脚本
from idc import get_wide_byte
def add_patch(idx):
# r8~r15
if get_wide_byte(idx-12)==0x41:
for i in range(idx-12,idx+15):
patch_byte(i,0x90)
return idx+15
# rax
else:
for i in range(idx-11,idx+13):
patch_byte(i,0x90)
return idx+13
def lea_patch_r8(idx):
for i in range(idx-2,idx+20):
patch_byte(i,0x90)
return idx+20
def lea_patch_rax(idx):
for i in range(idx-1,idx+18):
patch_byte(i,0x90)
return idx+18
if __name__ == "__main__":
idx = 0x140001000
while idx < 0x140015194:
if get_wide_byte(idx) == 0x9c and get_wide_byte(idx+8) == 0x9d:
idx = add_patch(idx)
elif get_wide_byte(idx) == 0x4c and get_wide_byte(idx+1) == 0x8d and get_wide_byte(idx+7) == 0x4d and get_wide_byte(idx+8) == 0x8d and get_wide_byte(idx-2) == 0x41:
idx = lea_patch_r8(idx)
elif get_wide_byte(idx) == 0x48 and get_wide_byte(idx+1) == 0x8d and get_wide_byte(idx+7) == 0x48 and get_wide_byte(idx+8) == 0x8d and get_wide_byte(idx+14) == 0xff:
idx = lea_patch_rax(idx)
else:
idx += 1

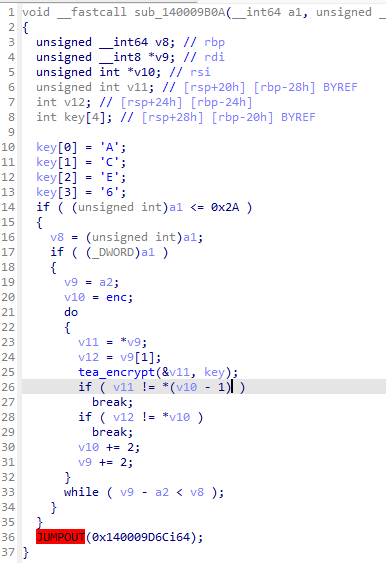

随便乱点发现140001000有一个tea加密，交叉引用可以看到tea的调用，其中密钥和密文已知，注意这里是每次传入tea函数的是一个byte而不是dword

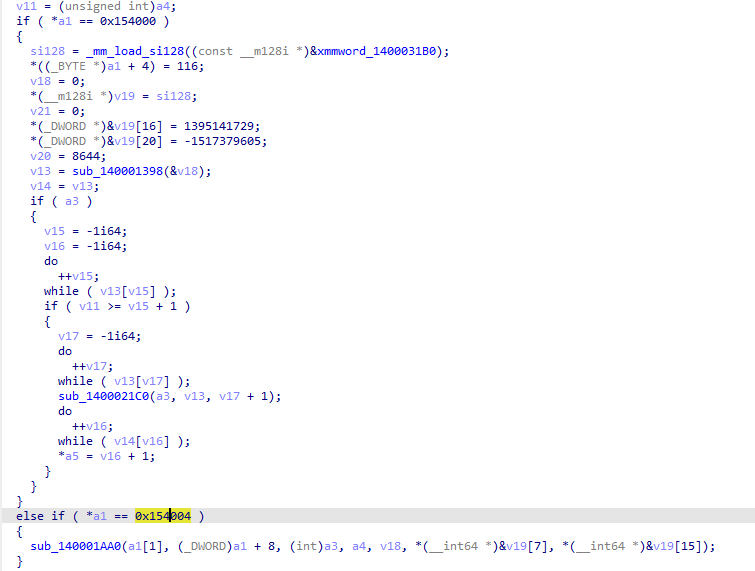

溯源tea的调用函数，可以看到1400087F1有一个0x154004的判断，和在r3层传入的数据相同，这里应该是一个操作码的判断

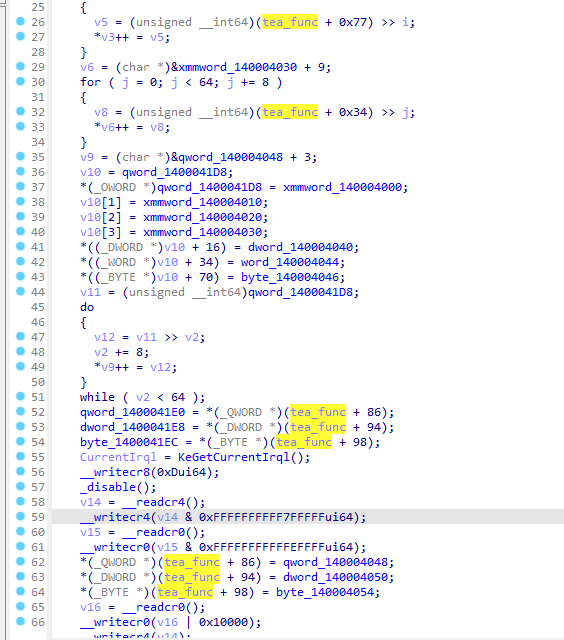

交叉引用发现还有一处地方引用了tea函数，发现14000A35B对tea函数进行了hook
由于不会调驱动，这里只能把tea函数和hook函数整个dump下来然后自己跑一遍😓
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#define _DWORD int
#define _BYTE char
#define _QWORD long long
#define _OWORD __int128
#define _WORD short
unsigned char unk_140004000[] =
{
0x58, 0x41, 0x8B, 0xC9, 0x41, 0x8B, 0xC1, 0xC1, 0xE0, 0x04,
0xC1, 0xE9, 0x05, 0x33, 0xC8, 0x41, 0x8B, 0xC3, 0x48, 0xC1,
0xE8, 0x0B, 0x41, 0x03, 0xC9, 0x83, 0xE0, 0x03, 0x41, 0x8B,
0x44, 0x85, 0x00, 0x41, 0x03, 0xC3, 0x33, 0xC8, 0x44, 0x03,
0xD1, 0x48, 0x83, 0xEA, 0x01, 0x48, 0xB8, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x48, 0xB9, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x75, 0x02, 0xFF, 0xE0, 0xFF,
0xE1, 0x00, 0x50, 0x48, 0xB8, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0xFF, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xB8, 0x67, 0xC3, 0x0E,
0x44, 0x90, 0xDA, 0xC9, 0xEB, 0x2D, 0x6C, 0xDA, 0xC3, 0xC9,
0xDD, 0x88, 0x75, 0x15, 0xA0, 0x32, 0xB4, 0xD0, 0x1D, 0x23,
0x74, 0x8A, 0x9E, 0x4B, 0x74, 0x3E, 0x5D, 0xD7, 0x12, 0x87,
0xAB, 0xEA, 0x88, 0xE8, 0x04, 0xE7, 0xAC, 0x31, 0x1A, 0xE0,
0x5C, 0x20, 0xAE, 0xEC, 0x67, 0x74, 0xBE, 0xA7, 0xA3, 0x52,
0x62, 0x0C, 0x4E, 0xEC, 0xEF, 0x1A, 0x44, 0xED, 0x0D, 0xC4,
0xCC, 0x42, 0xC8, 0xC3, 0x0E, 0x0C, 0x4A, 0xDE, 0xFC, 0xF3,
0x24, 0x7C, 0x01, 0xD0, 0xB8, 0x8F, 0x6E, 0x3E, 0x15, 0x11,
0x5C, 0xD1, 0x0E, 0x53, 0x11, 0x48, 0x21, 0xF4, 0xE0, 0x17,
0xB5, 0xBE, 0x34, 0x16, 0xF9, 0x63, 0xA5, 0xF8, 0x96, 0x4D,
0xC8, 0xEA, 0x23, 0xFE, 0xDF, 0x7A, 0x60, 0x2C, 0x5C, 0xD8,
0x43, 0xCC, 0x5B, 0x6C, 0x18, 0xFF, 0xA5, 0xE1, 0x63, 0x87,
0x58, 0xBD, 0x87, 0x91, 0x9B, 0x06, 0xD1, 0x87, 0x7B, 0x8D,
0x87, 0xD7, 0x68, 0x6B, 0x6E, 0x83, 0x3F, 0xC6, 0xA0, 0x55,
0xB3, 0xFD, 0x79, 0xD9, 0xEE, 0x4D, 0x52, 0x3E, 0x82, 0x5C,
0xB3, 0x7A, 0x8D, 0xDA, 0xF4, 0xA2, 0x4C, 0xBA, 0x08, 0x17,
0xE6, 0x53, 0x06, 0x71, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x32, 0xA2, 0xDF, 0x2D, 0x99, 0x2B, 0x00, 0x00,
0xCD, 0x5D, 0x20, 0xD2, 0x66, 0xD4, 0xFF, 0xFF, 0x30, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x31, 0x00, 0x40,
0x01, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x0F, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xBC, 0x01, 0x00, 0x00,
0x18, 0x44, 0x00, 0x40, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x50, 0x41, 0x00, 0x40, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
};
unsigned char mem[0x1000] = { 0 };
unsigned char tea_encrypt[] =
{
0x48, 0x8B, 0xC4, 0x48, 0x89, 0x58, 0x08, 0x48, 0x89, 0x68,
0x10, 0x48, 0x89, 0x70, 0x18, 0x48, 0x89, 0x78, 0x20, 0x41,
0x55, 0x4C, 0x8B, 0xEA, 0x8B, 0x1A, 0x45, 0x33, 0xDB, 0x8B,
0x7A, 0x04, 0x4C, 0x8B, 0xC1, 0x8B, 0x72, 0x08, 0x8B, 0x6A,
0x0C, 0x44, 0x8B, 0x09, 0x41, 0x8D, 0x53, 0x20, 0x44, 0x8B,
0x51, 0x04, 0x41, 0x8B, 0xCA, 0x45, 0x8D, 0x9B, 0xB9, 0x79,
0x37, 0x9E, 0xC1, 0xE9, 0x05, 0x41, 0x8B, 0xC2, 0x03, 0xCF,
0xC1, 0xE0, 0x04, 0x03, 0xC3, 0x33, 0xC8, 0x43, 0x8D, 0x04,
0x13, 0x33, 0xC8, 0x44, 0x03, 0xC9, 0x41, 0x8B, 0xC9, 0x41,
0x8B, 0xC1, 0xC1, 0xE9, 0x05, 0xC1, 0xE0, 0x04, 0x03, 0xCD,
0x03, 0xC6, 0x33, 0xC8, 0x43, 0x8D, 0x04, 0x0B, 0x33, 0xC8,
0x44, 0x03, 0xD1, 0x48, 0x83, 0xEA, 0x01, 0x75, 0xBD, 0x41,
0x5D, 0x48, 0x8B, 0x5C, 0x24, 0x08, 0x48, 0x8B, 0x6C, 0x24,
0x10, 0x48, 0x8B, 0x74, 0x24, 0x18, 0x48, 0x8B, 0x7C, 0x24,
0x20, 0x45, 0x89, 0x08, 0x45, 0x89, 0x50, 0x04, 0xC3
};
void __fastcall tea_hook(__int64 a1)
{
int v2; // ebx
char* v3; // rdx
int i; // ecx
unsigned __int64 v5; // rax
char* v6; // rdx
int j; // ecx
unsigned __int64 v8; // rax
char* v9; // rdx
_OWORD* v10; // rcx
unsigned __int64 v11; // r8
unsigned __int64 v12; // rax
unsigned __int8 CurrentIrql; // dl
unsigned __int64 v14; // rcx
unsigned __int64 v15; // rax
unsigned __int64 v16; // rax
*(_QWORD*)&unk_140004000[0x1d8] = (_QWORD)malloc(0x1000);
v2 = 0;
v3 = (char*)(&unk_140004000[0x20] + 15);
for (i = 0; i < 64; i += 8)
{
v5 = (unsigned __int64)(a1 + 0x77) >> i;
*v3++ = v5;
}
v6 = (char*)(&unk_140004000[0x30] + 9);
for (j = 0; j < 64; j += 8)
{
v8 = (unsigned __int64)(a1 + 0x34) >> j;
*v6++ = v8;
}
v9 = (char*)&unk_140004000[0x48] + 3;
v10 = (_OWORD*)*(_QWORD*)&unk_140004000[0x1d8];
v10[0] = *(_OWORD*)unk_140004000;//xmmword_140004000;
v10[1] = *(_OWORD*)&unk_140004000[0x10];
v10[2] = *(_OWORD*)&unk_140004000[0x20];
v10[3] = *(_OWORD*)&unk_140004000[0x30];
*((_DWORD*)v10 + 16) = *(_DWORD*)&unk_140004000[0x40];
*((_WORD*)v10 + 34) = *(_WORD*)&unk_140004000[0x44];
*((_BYTE*)v10 + 70) = *(_BYTE*)&unk_140004000[0x46];
v11 = *(unsigned __int64*)&unk_140004000[0x1d8];
do
{
v12 = v11 >> v2;
v2 += 8;
*v9++ = v12;
} while (v2 < 64);
*(_QWORD*)&unk_140004000[0x1e0] = *(_QWORD*)(a1 + 86);
*(_DWORD*)&unk_140004000[0x1e8] = *(_DWORD*)(a1 + 94);
*(_BYTE*)&unk_140004000[0x1ec] = *(_BYTE*)(a1 + 98);
// CurrentIrql = KeGetCurrentIrql();
// __writecr8(0xDui64);
// _disable();
// v14 = __readcr4();
// __writecr4(v14 & 0xFFFFFFFFFF7FFFFFui64);
// v15 = __readcr0();
// __writecr0(v15 & 0xFFFFFFFFFFFEFFFFui64);
*(_QWORD*)(a1 + 86) = *(_QWORD*)&unk_140004000[0x48];
*(_DWORD*)(a1 + 94) = *(_DWORD*)&unk_140004000[0x50];
*(_BYTE*)(a1 + 98) = *(_BYTE*)&unk_140004000[0x54];
// v16 = __readcr0();
// __writecr0(v16 | 0x10000);
// __writecr4(v14);
// _enable();
// __writecr8(CurrentIrql);
// *((_BYTE*)P + 340) = 1;
}
int main()
{
tea_hook((__int64)tea_encrypt);
return 0;
}

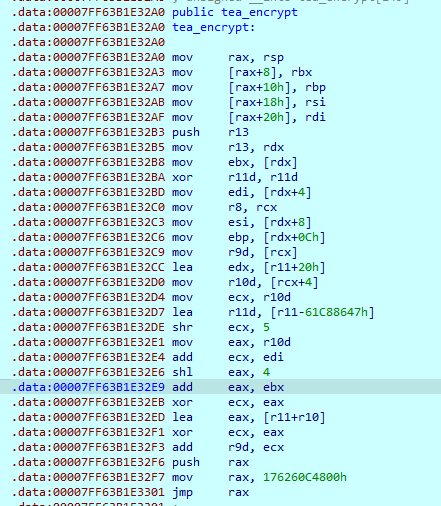

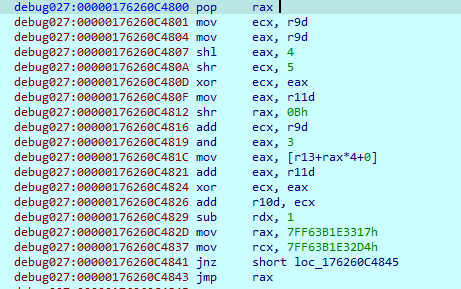

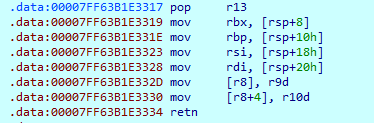

然后ida动态调试，hook过后的代码仍然有混淆，一共有三部分，这里把这三部分手动dump下来，去混淆并修复jmp地址

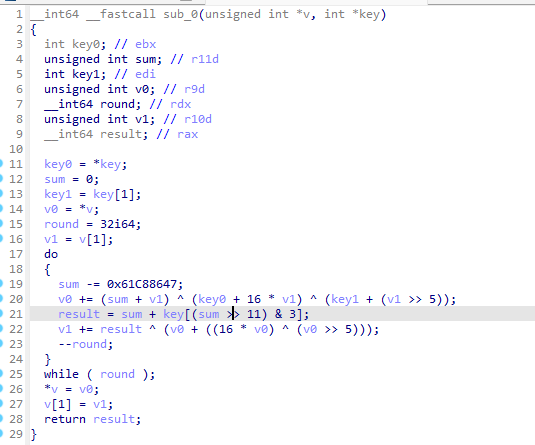

最终还原效果如下，把tea和xtea结合起来了：
然后写解密脚本得到base58后的字符串@PksUn39kYj763ggA1HLBUCaWSZv4vs4CwSevAnQEs
#include <stdio.h>
#include <string.h>
#define DELTA 0x9e3779b9
void tea_decrypt(unsigned int* text, int* key)
{
unsigned int v0 = text[0];
unsigned int v1 = text[1];
int sum = 0xC6EF3720;
for (int i = 0;i < 32;i++)
{
v1 -= (sum + key[(sum >> 11) & 3]) ^ (v0 + ((16 * v0) ^ (v0 >> 5)));
v0 -= ((v1 << 4) + key[0]) ^ (v1 + sum) ^ ((v1 >> 5) + key[1]);
sum -= DELTA;
}
text[0] = v0;
text[1] = v1;
}
int main()
{
unsigned int text[] =
{
0x0EC367B8, 0xC9DA9044, 0xDA6C2DEB, 0x88DDC9C3, 0x32A01575, 0x231DD0B4, 0x4B9E8A74, 0xD75D3E74, 0xEAAB8712,
0xE704E888, 0xE01A31AC, 0xECAE205C, 0xA7BE7467, 0x0C6252A3, 0x1AEFEC4E, 0xC40DED44, 0xC3C842CC,
0xDE4A0C0E, 0x7C24F3FC, 0x8FB8D001, 0x11153E6E, 0x530ED15C, 0xF4214811, 0xBEB517E0, 0x63F91634,
0x4D96F8A5, 0xFE23EAC8, 0x2C607ADF, 0xCC43D85C, 0xFF186C5B, 0x8763E1A5, 0x9187BD58, 0x87D1069B,
0xD7878D7B, 0x836E6B68, 0x55A0C63F, 0xD979FDB3, 0x3E524DEE, 0x7AB35C82, 0xA2F4DA8D, 0x1708BA4C,
0x710653E6, 0x00000000, 0x00000000
};
int key[4] = { 'A','C','E','6' };
int n = 42;
for (int i = 0;i < n;i += 2)
tea_decrypt(&text[i], key);
char xornum[] = { 0x18,0xa8,0xb1 };
xornum[0] ^= 0x6b;
xornum[1] ^= 0xd0;
xornum[2] ^= 0xc9;
for (int i = 0;i < n;i++)
text[i] ^= xornum[i % 3];
for (int i = 0;i < n;i++)
printf("%c", text[i]);
return 0;
}

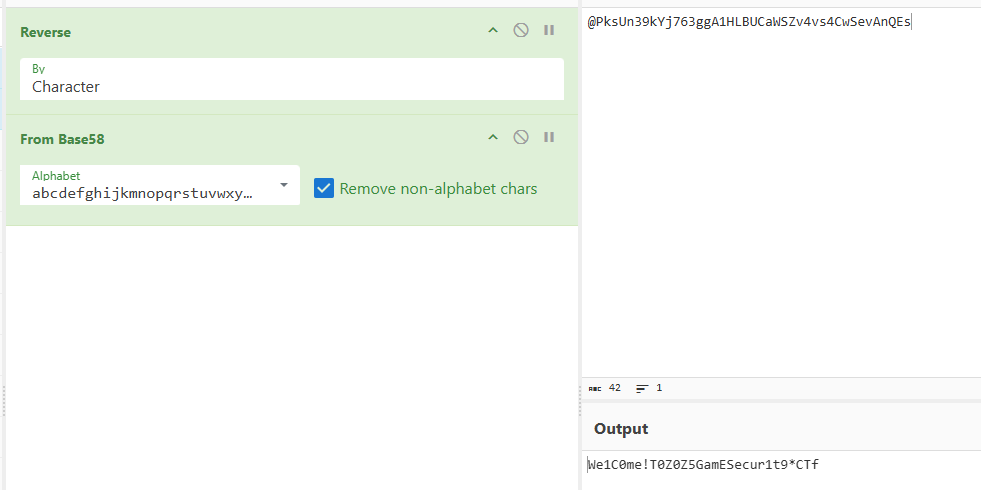

扔到cyberchef解码即得到flag：ACE_We1C0me!T0Z0Z5GamESecur1t9*CTf
