基于ArcEngine进行数据共边检查

问题描述：

用户提供的数据经常会存在共边问题，将数据提报给上级后审核不通过，导致需要数据反复修改，因此需要增加数据共边检查，自行检查无误后再进行上报，因为这些问题人工检查比较困难，因此考虑使用工具进行检查。

问题分析：

从用户提供数据分析，主要存在下面几种问题：

1、存在点偏移，应该是同一个点的坐标有细微偏差，可能会导致两个图形之间存在轻微的压盖、或者碎屑多边形等；

2、共边的点数不一致；

思路整理：

考虑使用ArcEngine工具编写相关的分析功能，主要是调用ToolBox工具箱中的工具以及GP服务进行分析，整理思路如下：

1、进行图形相交处理分析，输出结果为面，如果存在相交，则不合格，返回相关记录；

2、进行图形之间距离计算，如果距离大于0并小于阈值，则认为其应该是共点或者共边，返回相关记录；

3、进行数据擦除分析，使用数据的公共外接矩形擦除分析数据（我这里为了方便直接使用行政区的外接矩形），擦除后进行图形打散（因为擦除后返回一个图形，可能是多部件），检查是否存在碎屑多边形（面积小于阈值），返回相关记录；

4、进行分析数据相交处理，设置返回结果为线，获取到图形的公共边；循环每条公共边，获取和公共边线相交的图形（不包含点相交），然后判断公共边上面的点是否都图形之上，如果不符合则返回相关记录；

环境：

ArcEngine10.1   VS2012   DevExpress15.2

主要代码：

1、主程序窗口：

using DevExpress.XtraEditors;
using ESRI.ArcGIS.AnalysisTools;
using ESRI.ArcGIS.DataManagementTools;
using ESRI.ArcGIS.DataSourcesGDB;
using ESRI.ArcGIS.esriSystem;
using ESRI.ArcGIS.Geodatabase;
using ESRI.ArcGIS.Geometry;
using ESRI.ArcGIS.Geoprocessing;
using ESRI.ArcGIS.Geoprocessor;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace SDECatalog
{
    public partial class frmMain : Form
    {
        public frmMain()
        {
            InitializeComponent();
        }
        /// <summary>
        /// 加载数据源
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btn_AddShape_ButtonClick(object sender, DevExpress.XtraEditors.Controls.ButtonPressedEventArgs e)
        {
            //打开文件对话框
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Title = "加载shapefile数据";//设置title
            openFileDialog.Filter = "(*.shp)|*.shp";//设置过滤模式
            if (openFileDialog.ShowDialog() == DialogResult.OK)
            {
                //设置路径
                btn_AddShape.Text = openFileDialog.FileName;//全部路径
            }
        }

        private void btn_check_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(btn_AddShape.Text) || string.IsNullOrEmpty(btn_AddShape.Text.Trim()))
            {
                XtraMessageBox.Show("请先选择shape文件路径!");
                return;
            }
            if (!btn_AddShape.Text.EndsWith("shp") && !btn_AddShape.Text.EndsWith("SHP"))
            {
                XtraMessageBox.Show("请选择shape文件!");
                return;
            }
            //创建工作空间
            string strDataPath = Application.StartupPath + @"\data\" + DateTime.Now.ToString("yyyyMMddHHmmss");
            if (!Directory.Exists(strDataPath))
            {
                Directory.CreateDirectory(strDataPath);
            }
            string strMDBTemp = Application.StartupPath + @"\DataMDB\DataCheck.mdb";
            File.Copy(strMDBTemp, strDataPath + @"/DataCheck.mdb");
            string strResult = GISOper.GP_Copy(btn_AddShape.Text, strDataPath + @"\DataCheck.mdb", "PDDK");
            if (strResult != "SUCCESS")
            {
                MessageBox.Show("复制shape到mdb失败，请检查shape文件是否存在！" + strResult);
                return;
            }
            //存储结果的表格
            DataTable dt = CreateTable();
            strResult = GISOper.GP_Intersect(strDataPath + @"/DataCheck.mdb/PDDK", strDataPath + @"/DataCheck.mdb/GGLINE", "LINE");
            if (strResult != "SUCCESS")
            {
                MessageBox.Show("提取公共边失败！" + strResult);
                return;
            }
            //进行相交检查
            strResult = GISOper.GP_Intersect(strDataPath + @"/DataCheck.mdb/PDDK", strDataPath + @"/DataCheck.mdb/PDIntersect", null);
            if (strResult != "SUCCESS")
            {
                MessageBox.Show("进行图形相交失败！" + strResult);
                return;
            }
            //开始用gp工具的擦除来做，擦除之后在进行拆分，但是擦除一直报ERROR 000824: The tool is not licensed.错误，因此改用了拓扑来做
            //如果用擦除工具，效果会更好，但是注意一定要设置容差（0.0001），用拓扑对于差距很小的无法识别出来
            strResult = GISOper.GP_Erase(strDataPath + @"\DataCheck.mdb\XZQ", strDataPath + @"\DataCheck.mdb\PDDK", strDataPath + @"\DataCheck.mdb\CCJG");
            if (strResult != "SUCCESS")
            {
                MessageBox.Show("进行图形擦除失败！" + strResult);
                return;
            }
            IWorkspaceFactory pWF = new AccessWorkspaceFactoryClass();
            IWorkspace pWS = pWF.OpenFromFile(strDataPath + @"\DataCheck.mdb", 0);
            IFeatureWorkspace pFeatWorkspace = pWS as IFeatureWorkspace;
            IFeatureClass feaClsPDIntersect = pFeatWorkspace.OpenFeatureClass("PDIntersect");
            IFeatureClass feaClsXZQ = pFeatWorkspace.OpenFeatureClass("XZQ");
            IFeatureClass feaClsPDDK = pFeatWorkspace.OpenFeatureClass("PDDK");
            //进行相交检查
            IFeatureCursor feaCurTemp = feaClsPDIntersect.Search(null, false);
            IFeature feaPDIntersect = feaCurTemp.NextFeature();
            while (feaPDIntersect != null)
            {
                IArea are = feaPDIntersect.ShapeCopy as IArea;
                if (are.Area > 0)
                {
                    DataRow dr = dt.NewRow();
                    dr[0] = feaPDIntersect.OID;
                    dr[1] = "无";
                    dr[2] = "";
                    dr[3] = "存在图形相交，请检查图形";
                    dt.Rows.Add(dr);
                }
                feaPDIntersect = feaCurTemp.NextFeature();
            }
            //进行图形之间的距离检查
            IFeatureCursor feaCurTTemp = feaClsPDDK.Search(null, false);
            IFeature feaPDDK = feaCurTTemp.NextFeature();
            while (feaPDDK != null)
            {
                IGeometry geo = feaPDDK.ShapeCopy;
                ITopologicalOperator pTopo = geo as ITopologicalOperator;
                IGeometry pGeoBuffer = pTopo.Buffer(5);
                ISpatialFilter filter = new SpatialFilterClass();
                filter.Geometry = pGeoBuffer;
                filter.SpatialRel = esriSpatialRelEnum.esriSpatialRelIntersects;
                IFeatureCursor curT = feaClsPDDK.Search(filter, false);
                if (curT == null)
                {
                    feaPDDK = feaCurTTemp.NextFeature();
                    continue;
                }
                IFeature feaTT = curT.NextFeature();
                while (feaTT != null)
                {
                    double dis = GISOper.GetTwoGeometryDistance(feaPDDK.ShapeCopy, feaTT.ShapeCopy);
                    if (dis != 0)
                    {
                        DataRow dr = dt.NewRow();
                        dr[0] = feaPDDK.OID;
                        dr[1] = feaTT.OID;
                        dr[2] = dis;
                        dr[3] = "存在图形距离过近，请检查图形";
                        dt.Rows.Add(dr);
                    }
                    feaTT = curT.NextFeature();
                }
                feaPDDK = feaCurTTemp.NextFeature();
            }
            IFeature fea = feaClsXZQ.Search(null, false).NextFeature();
            if (fea == null)
            {
                MessageBox.Show("获取裁剪的空间图形失败！");
                return;
            }
            //如果擦除工具有问题，可以用图形循环擦除的方法
            //EraseClass eraseCls = new EraseClass(fea, feaClsPDDK);
            //bool bSuccess = eraseCls.EraseOperate();
            //if (!bSuccess)
            //{
            //    MessageBox.Show("进行图形擦除失败！");
            //    return;
            //}
            //strResult = GISOper.GP_MultipartToSinglepart(strDataPath + @"\DataCheck.mdb\XZQ", strDataPath + @"\DataCheck.mdb\XZQ_SPLIT");
            strResult = GISOper.GP_MultipartToSinglepart(strDataPath + @"\DataCheck.mdb\CCJG", strDataPath + @"\DataCheck.mdb\XZQ_SPLIT");
            if (strResult != "SUCCESS")
            {
                MessageBox.Show("擦除后结果进行多部件拆分失败！" + strResult);
                return;
            }

            IFeatureClass feaClsXZQ_SPLIT = pFeatWorkspace.OpenFeatureClass("XZQ_SPLIT");
            IFeatureCursor feaCursor = feaClsXZQ_SPLIT.Search(null, false);
            if (feaCursor != null)
            {
                IFeature feaTT = feaCursor.NextFeature();
                while (feaTT != null)
                {
                    IArea area = (IArea)feaTT.ShapeCopy;
                    double d = area.Area;
                    if (d < 50)
                    {
                        DataRow dr = dt.NewRow();
                        dr[0] = d.ToString();
                        dr[1] = "无";
                        dr[2] = "";
                        dr[3] = "存在碎屑多边形(面积小于50)，请检查图形";
                        dt.Rows.Add(dr);
                    }
                    feaTT = feaCursor.NextFeature();
                }
            }

            IFeatureClass feaclsLINE = pFeatWorkspace.OpenFeatureClass("GGLINE");
            IFeatureCursor feaCur = feaclsLINE.Search(null, false);
            IFeature feaLINE = feaCur.NextFeature();
            while (feaLINE != null)
            {
                ISpatialFilter filterTemp = new SpatialFilterClass();
                filterTemp.Geometry = feaLINE.Shape as IGeometry;
                //这里用相交，会出现线两头的面也会被搜索出来，而不仅仅是线所在的面,但是别的没法返回想要的结果
                filterTemp.SpatialRel = esriSpatialRelEnum.esriSpatialRelIntersects;

                IFeatureCursor feacurTemp = feaClsPDDK.Search(filterTemp, false);
                IFeature feaTemp = feacurTemp.NextFeature();
                int i = 0;
                while (feaTemp != null)
                {
                    //相交可能只有一个点相交，对于这种情况应该排除掉
                    ITopologicalOperator topoOperator = feaTemp.ShapeCopy as ITopologicalOperator;
                    IGeometry geo = topoOperator.Intersect(feaLINE.ShapeCopy, esriGeometryDimension.esriGeometry1Dimension);
                    if (!geo.IsEmpty)
                    {
                        IPointCollection Pc = geo as IPointCollection;
                        if (Pc.PointCount <= 1)
                        {
                            feaTemp = feacurTemp.NextFeature();
                            continue;
                        }
                    }
                    else
                    {
                        feaTemp = feacurTemp.NextFeature();
                        continue;
                    }
                    IPointCollection pcPDDK = feaTemp.Shape as IPointCollection;
                    IPointCollection pcLINE = feaLINE.Shape as IPointCollection;
                    bool bcontain = bPcContainsPc(pcLINE, pcPDDK);
                    if (bcontain)
                    {
                        DataRow dr = dt.NewRow();
                        dr[0] = feaLINE.OID;
                        dr[1] = feaTemp.OID;
                        //dr[2] = feaTemp.OID;
                        dr[3] = "公共边所有的点都包含在地块要素上";
                        dt.Rows.Add(dr);
                    }
                    else
                    {
                        DataRow dr = dt.NewRow();
                        dr[0] = feaLINE.OID;
                        dr[1] = feaTemp.OID;
                        //dr[2] = feaTemp.get_Value(feaclsPDDK.FindField("KCDJDKID")).ToString();
                        dr[3] = "！！！注意：存在公共边的点不在在地块要素上！！！";
                        dt.Rows.Add(dr);
                    }

                    //不管用，好像一直返回线图层的点信息
                    //ITopologicalOperator topoOperator = feaLINE.Shape as ITopologicalOperator;
                    //IGeometry geo = topoOperator.Intersect(feaTemp.Shape as IGeometry, esriGeometryDimension.esriGeometryNoDimension);
                    //if (!geo.IsEmpty)
                    //{
                    //IPointCollection Pc = geo as IPointCollection;
                    //}
                    feaTemp = feacurTemp.NextFeature();
                }
                feaLINE = feaCur.NextFeature();
            }

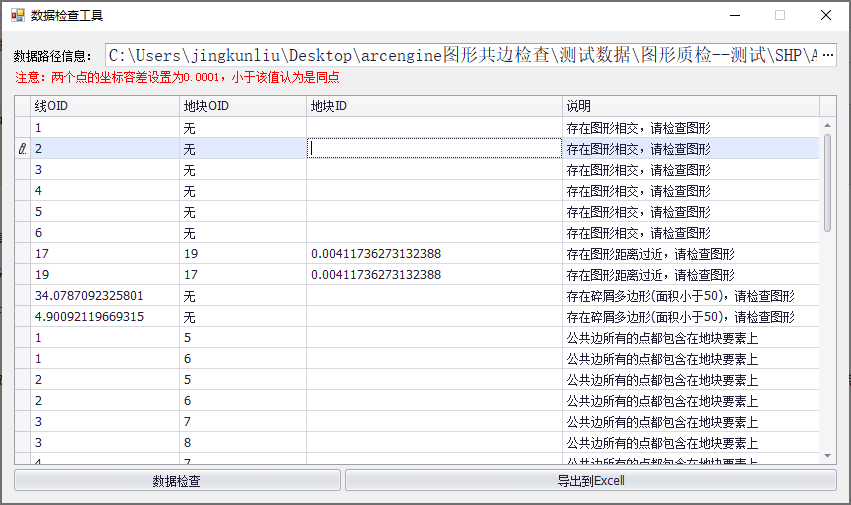

            grdCtrlResult.DataSource = dt;
            grdCtrlResult.RefreshDataSource();
        }
        /// <summary>
        /// 点集pc1是否完全在pc2中
        /// </summary>
        /// <param name="pc1"></param>
        /// <param name="pc2"></param>
        /// <returns></returns>
        public bool bPcContainsPc(IPointCollection pc1, IPointCollection pc2)
        {
            int mixCount = 0;
            for (int i = 0; i < pc1.PointCount; i++)
            {
                IPoint pp = pc1.get_Point(i);
                for (int a = 0; a < pc2.PointCount; a++)
                {
                    //double dd = Math.Abs(pp.X - pc2.get_Point(a).X);
                    //double ss = Math.Abs(pp.Y - pc2.get_Point(a).Y);
                    //注意这里的容差，必须设置，现在的图形为保留三维小数
                    if (Math.Abs(pp.X - pc2.get_Point(a).X) < 0.0001 && Math.Abs(pp.Y - pc2.get_Point(a).Y) < 0.001)
                    {
                        mixCount++;
                        break;
                    }
                }
            }
            if (mixCount == pc1.PointCount)
            {
                return true;
            }
            else
            {
                return false;
            }
        }

        /// <summary>
        /// 创建结果datatable
        /// </summary>
        /// <returns></returns>
        public DataTable CreateTable()
        {
            DataTable dt = new DataTable();
            try
            {
                DataColumn dcDsName = new DataColumn("线OID");
                DataColumn dcFeaClsName = new DataColumn("地块OID");
                DataColumn dcDKID = new DataColumn("地块ID");
                DataColumn dcFeaClsAliasName = new DataColumn("说明");
                dt.Columns.Add(dcDsName);
                dt.Columns.Add(dcFeaClsName);
                dt.Columns.Add(dcDKID);
                dt.Columns.Add(dcFeaClsAliasName);
                return dt;
            }
            catch (Exception)
            {
                return null;
            }
        }

        private void btn_exportExcel_Click(object sender, EventArgs e)
        {
            SaveFileDialog saveFileDialog = new SaveFileDialog();
            saveFileDialog.Title = "导出Excel";
            saveFileDialog.FileName = DateTime.Now.Year.ToString() + DateTime.Now.Month.ToString() + DateTime.Now.Day.ToString() + DateTime.Now.Hour.ToString() + DateTime.Now.Minute.ToString() + DateTime.Now.Millisecond.ToString();
            saveFileDialog.Filter = "Excel文件(*.xls)|*.xls";
            DialogResult dialogResult = saveFileDialog.ShowDialog(this);
            if (dialogResult == DialogResult.OK)
            {
                DevExpress.XtraPrinting.XlsExportOptions options = new DevExpress.XtraPrinting.XlsExportOptions();
                grdCtrlResult.ExportToXls(saveFileDialog.FileName);
                XtraMessageBox.Show("保存成功！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
            }
        }

    }
}

2、主要GP分析函数：

using ESRI.ArcGIS.Carto;
using ESRI.ArcGIS.DataManagementTools;
using ESRI.ArcGIS.DataSourcesFile;
using ESRI.ArcGIS.DataSourcesGDB;
using ESRI.ArcGIS.esriSystem;
using ESRI.ArcGIS.Geodatabase;
using ESRI.ArcGIS.Geometry;
using ESRI.ArcGIS.Geoprocessing;
using ESRI.ArcGIS.Geoprocessor;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace SDECatalog
{
    public class GISOper
    {
        /// <summary>
        /// 复制SHAPE到mdb
        /// </summary>
        /// <param name="inPath"></param>
        /// <param name="strOutPath"></param>
        /// <returns></returns>
        public static string GP_Copy(string inPath, string strOutPath, string strOutName)
        {
            Geoprocessor GP = new Geoprocessor();
            GP.OverwriteOutput = true;  //覆盖原有文件并重写
            try
            {
                ESRI.ArcGIS.ConversionTools.FeatureClassToFeatureClass feaClsToFeaCls = new ESRI.ArcGIS.ConversionTools.FeatureClassToFeatureClass();
                feaClsToFeaCls.in_features = inPath;
                feaClsToFeaCls.out_path = strOutPath;
                feaClsToFeaCls.out_name = strOutName;
                Geoprocessor gp = new Geoprocessor { OverwriteOutput = true };
                IGeoProcessorResult2 result = gp.Execute(feaClsToFeaCls as IGPProcess, null) as IGeoProcessorResult2;
                return "SUCCESS";
            }
            catch (Exception ex)
            {
                string str = "";
                for (int i = 0; i < GP.MessageCount; i++)
                {
                    str += GP.GetMessage(i);
                    str += "\n";
                }
                return "执行复制操作失败！" + str;
            }
        }
        /// <summary>
        /// 执行GP相交
        /// 这里注意，如果是多个图层做相交处理，in_features参数如下：XXX图层全路径 + ";" + XXX图层全路径;
        /// </summary>
        public static string GP_Intersect(string strINPath, string strOutPutPath, string strOutType)
        {
            Geoprocessor GP = new Geoprocessor();
            GP.OverwriteOutput = true;  //覆盖原有文件并重写
            try
            {
                //初始化Merge
                ESRI.ArcGIS.AnalysisTools.Intersect intersect = new ESRI.ArcGIS.AnalysisTools.Intersect();
                intersect.in_features = strINPath;
                intersect.join_attributes = "ALL";
                intersect.out_feature_class = strOutPutPath;
                if (!string.IsNullOrEmpty(strOutType))
                {
                    intersect.output_type = strOutType;
                }
                IGeoProcessorResult tGeoResult = GP.Execute(intersect, null) as IGeoProcessorResult;
                return "SUCCESS";
            }
            catch (Exception ex)
            {
                string str = "";
                for (int i = 0; i < GP.MessageCount; i++)
                {
                    str += GP.GetMessage(i);
                    str += "\n";
                }
                return "执行相交操作失败！" + str;
            }
        }
        /// <summary>
        /// 执行GP擦除
        /// 因为一直出现ERROR 000824: The tool is not licensed.错误，因此改用了拓扑来实现
        /// </summary>
        public static string GP_Erase(string strINPath, string strINPath2, string strOutPutPath)
        {
            Geoprocessor GP = new Geoprocessor();
            GP.OverwriteOutput = true;  //覆盖原有文件并重写
            try
            {
                //初始化Merge
                ESRI.ArcGIS.AnalysisTools.Erase erase = new ESRI.ArcGIS.AnalysisTools.Erase();
                erase.in_features = strINPath;
                erase.erase_features = strINPath2;
                erase.cluster_tolerance = 0.0001;
                erase.out_feature_class = strOutPutPath;
                IGeoProcessorResult tGeoResult = GP.Execute(erase, null) as IGeoProcessorResult;
                //IFeatureClass resultFeaCls = GP.Open(tGeoResult.ReturnValue) as IFeatureClass;
                return "SUCCESS";
            }
            catch (Exception ex)
            {
                string str = "";
                for (int i = 0; i < GP.MessageCount; i++)
                {
                    str += GP.GetMessage(i);
                    str += "\n";
                }
                return "执行擦除操作失败！" + str;
            }
        }
        /// <summary>
        /// 拆分多部件
        /// </summary>
        public static string GP_MultipartToSinglepart(string strINPath, string strOutPutPath)
        {
            Geoprocessor GP = new Geoprocessor();
            GP.OverwriteOutput = true;  //覆盖原有文件并重写
            try
            {
                ESRI.ArcGIS.DataManagementTools.MultipartToSinglepart cf = new MultipartToSinglepart();
                cf.in_features = strINPath;
                cf.out_feature_class = strOutPutPath;
                IGeoProcessorResult tGeoResult = GP.Execute(cf, null) as IGeoProcessorResult;
                //IFeatureClass resultFeaCls = GP.Open(tGeoResult.ReturnValue) as IFeatureClass;
                return "SUCCESS";
            }
            catch (Exception ex)
            {
                string str = "";
                for (int i = 0; i < GP.MessageCount; i++)
                {
                    str += GP.GetMessage(i);
                    str += "\n";
                }
                return "执行拆分操作失败！" + str;
            }
        }
        /// <summary>
        /// 获取两个几何图形的距离
        /// </summary>
        /// <param name="pGeometryA">几何图形A</param>
        /// <param name="pGeometryB">几何图形B</param>
        /// <returns>两个几何图形的距离</returns>
        public static double GetTwoGeometryDistance(IGeometry pGeometryA, IGeometry pGeometryB)
        {
            IProximityOperator pProOperator = pGeometryA as IProximityOperator;
            if (pGeometryA != null || pGeometryB != null)
            {
                double distance = pProOperator.ReturnDistance(pGeometryB);
                return distance;
            }
            else
            {
                return 0;
            }
        }
    }
}







TRANSLATE with x

English

Arabic	Hebrew	Polish
Bulgarian	Hindi	Portuguese
Catalan	Hmong Daw	Romanian
Chinese Simplified	Hungarian	Russian
Chinese Traditional	Indonesian	Slovak
Czech	Italian	Slovenian
Danish	Japanese	Spanish
Dutch	Klingon	Swedish
English	Korean	Thai
Estonian	Latvian	Turkish
Finnish	Lithuanian	Ukrainian
French	Malay	Urdu
German	Maltese	Vietnamese
Greek	Norwegian	Welsh
Haitian Creole	Persian



TRANSLATE with

COPY THE URL BELOW

Back

EMBED THE SNIPPET BELOW IN YOUR SITE

Enable collaborative features and customize widget: Bing Webmaster Portal

Back





此页面的语言为中文（简体）



翻译为









• 中文（简体）
• 中文（繁体）
• 丹麦语
• 乌克兰语
• 乌尔都语
• 亚美尼亚语
• 俄语
• 保加利亚语
• 克罗地亚语
• 冰岛语
• 加泰罗尼亚语
• 匈牙利语
• 卡纳达语
• 印地语
• 印尼语
• 古吉拉特语
• 哈萨克语
• 土耳其语
• 威尔士语
• 孟加拉语
• 尼泊尔语
• 布尔语(南非荷兰语)
• 希伯来语
• 希腊语
• 库尔德语
• 德语
• 意大利语
• 拉脱维亚语
• 挪威语
• 捷克语
• 斯洛伐克语
• 斯洛文尼亚语
• 旁遮普语
• 日语
• 普什图语
• 毛利语
• 法语
• 波兰语
• 波斯语
• 泰卢固语
• 泰米尔语
• 泰语
• 海地克里奥尔语
• 爱沙尼亚语
• 瑞典语
• 立陶宛语
• 缅甸语
• 罗马尼亚语
• 老挝语
• 芬兰语
• 英语
• 荷兰语
• 萨摩亚语
• 葡萄牙语
• 西班牙语
• 越南语
• 阿塞拜疆语
• 阿姆哈拉语
• 阿尔巴尼亚语
• 阿拉伯语
• 韩语
• 马尔加什语
• 马拉地语
• 马拉雅拉姆语
• 马来语
• 马耳他语
• 高棉语



随时将中文（简体）翻译为
一律不翻译中文（简体）
一律不翻译i.cnblogs.com
