javaEE期末准备
JAVA SSM

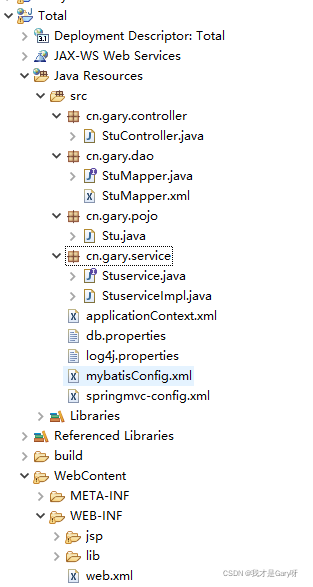

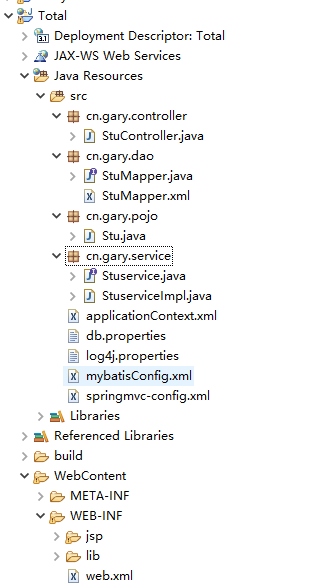

结构图
编写配置文件
db.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/test(你的数据库名)
jdbc.username=root
jdbc.password=root
log4j.properties
# Global logging configuration
log4j.rootLogger=debug,ERROR,stdout
# MyBatis logging configuration...
log4j.logger.com.itheima=DEBUG
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n
mybatisConfig.xml
加入分页配置
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!--别名定义-->
<typeAliases>
<!--name为你实体对象的包-->
<package name="cn.gary.pojo"/>
</typeAliases>
<plugins>
<plugin interceptor="com.github.pagehelper.PageHelper">
<property name="helperDialect" value="mysql"/>
<property name="reasonable" value="true"/>
</plugin>
</plugins>
</configuration>
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">
<!-- 数据源配置 -->
<context:property-placeholder location="classpath:db.properties"/>
<bean id = "dataSource" class= "org.apache.commons.dbcp2.BasicDataSource">
<property name="driverClassName" value = "${jdbc.driver}" />
<property name="url" value = "${jdbc.url}" />
<property name="username" value ="${jdbc.username}" />
<property name="password" value = "${jdbc.password}" />
</bean>
<!--配置事务管理器 开启事务注解-->
<bean id = "transctionManager"
class = "org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref = "dataSource"></property>
</bean>
<tx:annotation-driven transaction-manager="transctionManager" />
<!--配置mybatis工厂-->
<bean id = "sqlSessionFactory"
class = "org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref = "dataSource" />
<property name="configLocation" value = "classpath:mybatisConfig.xml" />
</bean>
<!--配置mapper扫描器-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!--value值为你数据库操作的包-->
<property name="basePackage" value="cn.gary.dao"/>
</bean>
<context:component-scan base-package="cn.gary.service" />
</beans>
springmvc-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-4.3.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">
<context:component-scan
base-package="com.itheima.controller" />
<mvc:annotation-driven />
<!--视图解析器，描述前缀和后缀 -->
<bean
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/jsp/" />
<property name="suffix" value=".jsp" />
</bean>
</beans>
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
id="WebApp_ID" version="3.1">
<display-name>exam</display-name>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
<!-- 配置spring文件监听器，就是配置你数据源的那个文件-->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 编码过滤器 -->
<filter>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 配置mvc前端控制器 ，就是你配置视图解析器那个文件 -->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc-config.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
主体
pojo包
在该包下创建你所需的对应实体类
dao包（接口和mapper）
增删改查样例
先创建一个接口（最好与接下来的Mapper同名）
StuMapper.java
package cn.gary.dao;
import java.util.List;
import cn.gary.pojo.Stu;
public interface StuMapper {
public Stu getStuBySno(int sno);
public List<Stu> getAllStu();
public List<Stu> getBysname(String sname) ;
public int addStu(Stu stu);
public int deleStu(int sno);
public int updateStu(Stu stu);
}
StuMapper.xml(注意接口中方法与xml中id名相同)
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.gary.dao.StuMapper">
<!-- 查询单个 -->
<select id="getStuBySno" parameterType="Integer" resultType="cn.gary.pojo.Stu">
select * from stu_tab where sno=#{_parameter}
</select>
<!-- 查询所有 -->
<select id = "getAllStu" resultType="cn.gary.pojo.Stu" >
select * from stu_tab
</select>
<!-- 模糊查询 -->
<select id = "getBysname" parameterType="String" resultType="cn.gary.pojo.Stu" >
select * from stu_tab where sname like concat('%',#{_parameter},'%')
</select>
<!-- 添加 -->
<insert id="addStu" parameterType="cn.gary.pojo.Stu">
insert into
stu_tab(sname,sclass,age) values(#{sname},#{sclass},#{age})
</insert>
<!-- 删除 -->
<delete id="deleStu" parameterType="Integer">
delete from stu_tab where sid = #{_parameter}
</delete>
<!-- 更新 -->
<update id="updateStu" parameterType="cn.gary.pojo.Stu">
update stu_tab
set sname = #{sname},
sclass = #{sclass},
age = #{age},
where sid = #{sid}
</update>
</mapper>
service包
同样先写一个对应的接口
Stuservice.java
package cn.gary.service;
import java.util.List;
import cn.gary.pojo.Stu;
public interface Stuservice {
public Stu getStuBySno(int sno);
public List<Stu> getAllStu();
public List<Stu> getBysname(String sname) ;
public int addStu(Stu stu);
public int deleStu(int sno);
public int updateStu(Stu stu);
}
serviceimpl.java(在这里对应实现)（没写全hh）
package cn.gary.service;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import cn.gary.dao.StuMapper;
import cn.gary.pojo.Stu;
@Service
public class StuserviceImpl implements Stuservice {
@Autowired
StuMapper stuMapper;
@Override
public Stu getStuBySno(int sno) {
return stuMapper.getStuBySno(sno);
}
@Override
public List<Stu> getAllStu() {
return stuMapper.getAllStu();
}
}
controller包（分页使用与其jsp页面）
其中更新操作流程 ：先在页面取得sid(主键)，通过controller传到修改页面，最后再执行更新
package cn.gary.controller;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import cn.gary.pojo.Stu;
import cn.gary.service.Stuservice;
@Controller
@RequestMapping("/stu")
public class StuController {
@Autowired
Stuservice stuservice;
@RequestMapping("/getStu")
public String getStu (int sno, Model model) {
Stu stu = stuservice.getStuBySno(sno);
model.addAttribute("stu",stu);
return "stuinfo";
}
@RequestMapping("/getAll")
public String getAll(Model model,@RequestParam(defaultValue = "1")int pageNum,
@RequestParam(defaultValue = "3")int pageSize) {
PageHelper.startPage(pageNum,pageSize);//页码和页大小
List<Stu> uList = stuservice.getAllStu();
PageInfo<Stu> p = new PageInfo<Stu>(uList);
model.addAttribute("ulist",uList);
model.addAttribute("pageinfo",p);
return "stuAll";
}
//添加
@RequestMapping("/toaddstu")
public String toAdd() {
return "addstuP";
}
@RequestMapping("/addStu")
public String addStu(Stu stu) {
int t = stuservice.addStu(stu);
if(t>0) {
return "forward:getAll";
}
else
return "erro";
}
//更新
@RequestMapping("/toupstu")
public String toupdate(int sno,Model model) {
model.addAttribute("sno",sno);
return "upstuP";
}
@RequestMapping("/upStu")
public String upStu(Stu stu) {
int t = stuservice.updateStu(stu);
if(t>0) {
return "forward:getAll";
}
else
return "erro";
}
//删除
public String deleStu(int sno) {
int t = stuservice.deleStu(sno);
if(t>0) {
return "forward:getAll";
}
else
return "erro";
}
}
jsp页面
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<form method = "post" action = "${pageContext.request.contextPath}/stu/getstu">
<input type = "text" name = "sname"/>
<input type = "submit" value = "提交"/>
</form> <a href = "#">添加</a>
<table border="1px" width = "500px">
<tr>
<th>学号</th>
<th>姓名</th>
<th>年级</th>
<th>年龄</th>
</tr>
<c:forEach items="${ulist}" var = "x">
<tr>
<th>${x.sno}</th>
<th>${x.sname}</th>
<th>${x.sclass}</th>
<th>${x.age}</th>
</tr>
</c:forEach>
</table>
第${pageinfo.pageNum}页/共${pageinfo.pages}页
<a href="${pageContext.request.contextPath}/stu/getAll?pageNum=${pageinfo.prePage}">上一页</a>
<c:forEach begin="1" end = "${pageinfo.pages}" step = "1" var = "y">
<a href="${pageContext.request.contextPath}/stu/getAll?pageNum=${y}">${y}</a>
</c:forEach>
<a href="${pageContext.request.contextPath}/stu/getAll?pageNum=${pageinfo.nextPage}">下一页</a>
</body>
</html>
