C# get pc total memory and available memory, process private workingset and workingset64

Install-Package System.Management;
Install-Package System.Diagnostics.PerformanceCounter;





using System.Diagnostics;
using System.Management;




public class MemoryMonitor
{
    private static PerformanceCounter memoryCounter = null;

    //Get the current private memory usage in MB.
    public static int GetPrivateMemoryMB()
    {
        if (memoryCounter == null)
        {
            memoryCounter=new PerformanceCounter("Process", "Working Set - Private",
                Process.GetCurrentProcess().ProcessName);
        }
        return (int)(memoryCounter.NextValue()/1024f/1024f);
    }

    //Gets the total working set memory in MB
    public static int GetWorkingSetMemoryMB()
    {
        using (var proc = Process.GetCurrentProcess())
        {
            return (int)(proc.WorkingSet64/1024f/1024f);
        }
    }

    //Total physical memory
    public static double GetTotalPhysicalMemory()
    {
        using (var searcher = new ManagementObjectSearcher("select TotalPhysicalMemory from win32_computersystem"))
        {
            foreach (ManagementObject item in searcher.Get())
            {
                return Convert.ToDouble(item["TotalPhysicalMemory"])/1024f/1024f;
            }
        }
        return 0;
    }

    //Available memory
    public static double GetAvailablePhysicalMemory()
    {
        using (var searcher = new ManagementObjectSearcher("select availablebytes from win32_perfformatteddata_perfos_memory"))
        {
            foreach (ManagementObject item in searcher.Get())
            {
                return Convert.ToDouble(item["availableBytes"])/1024f/1024f;
            }
        }
        return 0;
    }
}





According to AI

Key Differences: Working Set vs Private Working Set

1. Working Set (WorkingSet64)

csharp

using (var process = Process.GetCurrentProcess())
{
    long workingSet = process.WorkingSet64; // Total physical RAM used
}

What it measures:

• Total physical RAM currently allocated to the process

• Includes both private and shared memory

• Shared memory = memory-mapped files, DLLs, shared libraries used by multiple processes

• Represents: The process's current "footprint" in physical RAM

2. Private Working Set (PerformanceCounter)

csharp

var privateCounter = new PerformanceCounter("Process", "Working Set - Private",
                                          process.ProcessName);
long privateWorkingSet = privateCounter.NextValue();

What it measures:

• Exclusively owned memory - cannot be shared with other processes

• Includes: Heap allocations, stack memory, unique data structures

• Excludes: Shared DLLs, memory-mapped files, system libraries

• Represents: The memory cost that would be freed if the process terminated

🎯 Visual Comparison

text

Process Memory Usage
├── Working Set (Total Physical RAM)
│   ├── Private Working Set (40%) - Your app's exclusive memory
│   └── Shared Memory (60%) - DLLs, system libraries, shared resources
└── Virtual Memory (Disk + RAM)





















using System.Diagnostics;
using System.Management;

namespace ConsoleApp33
{
    internal class Program
    {
        static UInt128 idx = 0;
        static List<string> guidsList;
        static object objLock=new object();
        static void Main(string[] args)
        {
            guidsList = new List<string>();
            PopulateListStrings();
        }

        static void PopulateListStrings()
        {
            while(++idx>0)
            {
                guidsList.Add($"{idx}_{Guid.NewGuid().ToString()}");
                if(idx%10000000==0)
                {
                    string memoryStr = $"Count:{guidsList.Count}\n" +
                       $"Private memory:{MemoryMonitor.GetPrivateMemoryMB()} MB\n" +
                       $"Workingset:{MemoryMonitor.GetWorkingSetMemoryMB()} MB\n"+
                       $"PC total memory:{MemoryMonitor.GetTotalPhysicalMemory()} MB\n"+
                       $"PC available memory:{MemoryMonitor.GetAvailablePhysicalMemory()} MB\n";

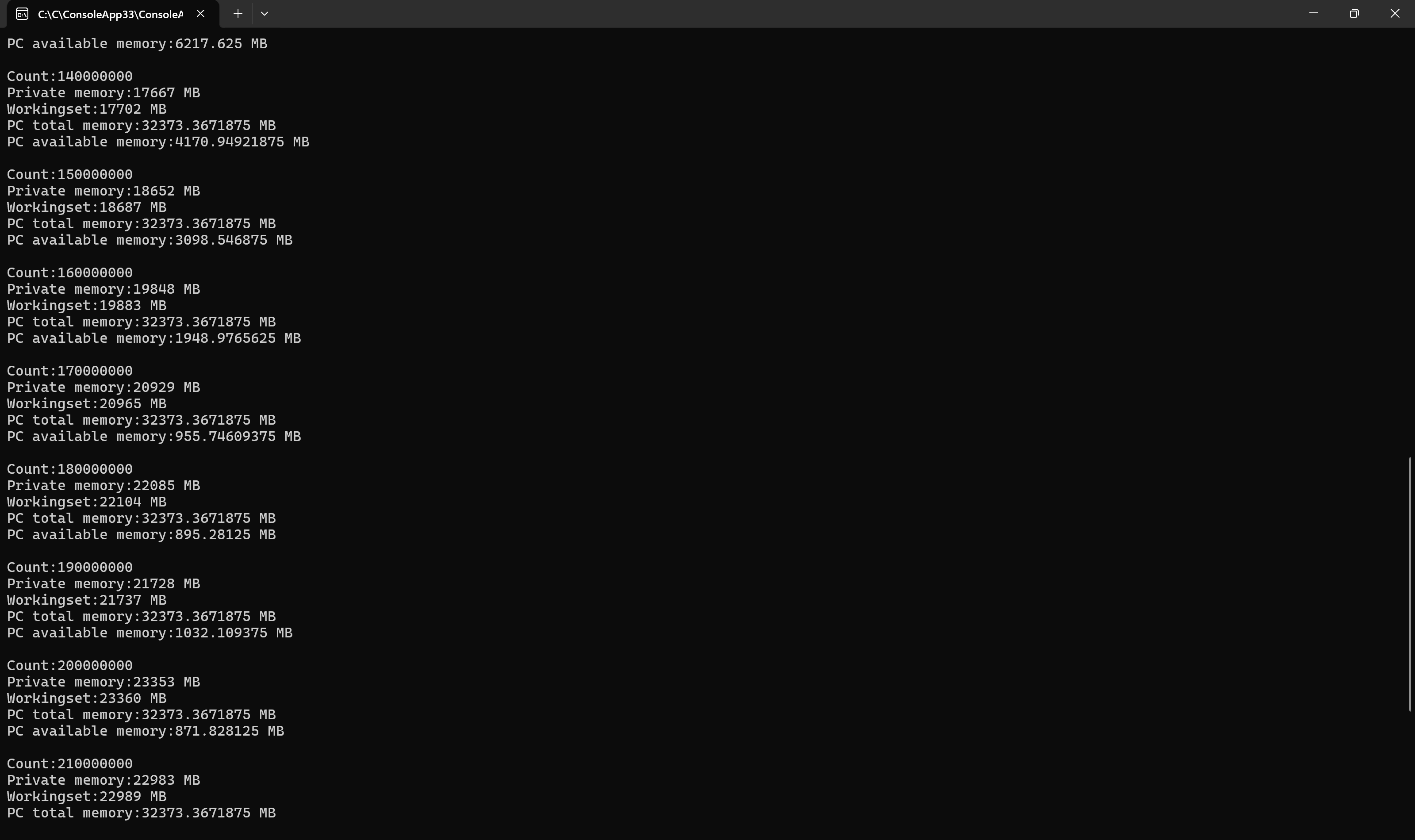

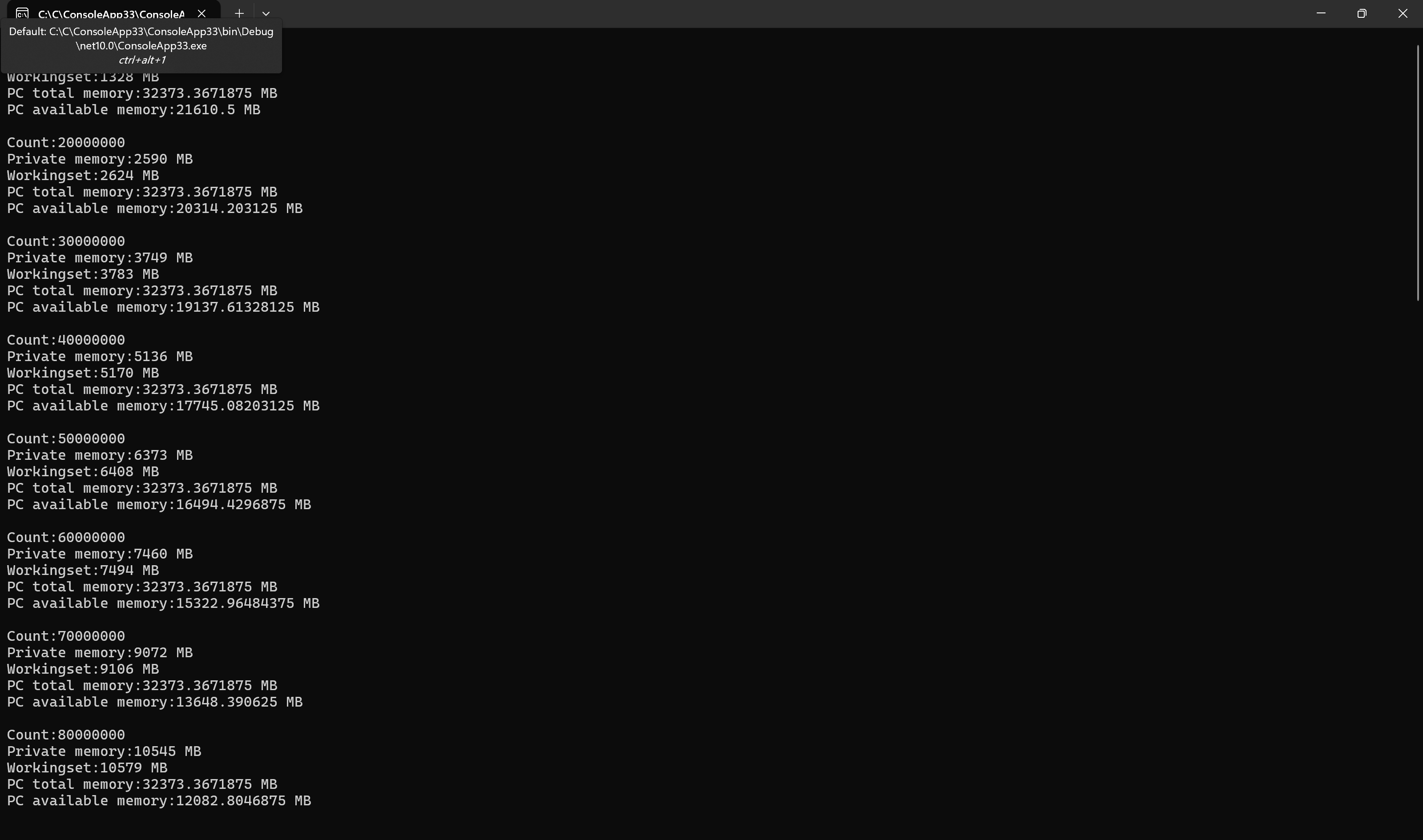

                    Console.WriteLine(memoryStr);
                }
            }
        }
    }

    public class MemoryMonitor
    {
        private static PerformanceCounter memoryCounter = null;

        //Get the current private memory usage in MB.
        public static int GetPrivateMemoryMB()
        {
            if (memoryCounter == null)
            {
                memoryCounter=new PerformanceCounter("Process", "Working Set - Private",
                    Process.GetCurrentProcess().ProcessName);
            }
            return (int)(memoryCounter.NextValue()/1024f/1024f);
        }

        //Gets the total working set memory in MB
        public static int GetWorkingSetMemoryMB()
        {
            using (var proc = Process.GetCurrentProcess())
            {
                return (int)(proc.WorkingSet64/1024f/1024f);
            }
        }

        //Total physical memory
        public static double GetTotalPhysicalMemory()
        {
            using (var searcher = new ManagementObjectSearcher("select TotalPhysicalMemory from win32_computersystem"))
            {
                foreach (ManagementObject item in searcher.Get())
                {
                    return Convert.ToDouble(item["TotalPhysicalMemory"])/1024f/1024f;
                }
            }
            return 0;
        }

        //Available memory
        public static double GetAvailablePhysicalMemory()
        {
            using (var searcher = new ManagementObjectSearcher("select availablebytes from win32_perfformatteddata_perfos_memory"))
            {
                foreach (ManagementObject item in searcher.Get())
                {
                    return Convert.ToDouble(item["availableBytes"])/1024f/1024f;
                }
            }
            return 0;
        }
    }
}
