游玩神器Frida

0x00 Frida是什么

这是一个神通广大的框架，已经编写好的程序只能运行同一结果太无趣？Frida可以让你注入/预加载/集成你自己的代码，于是就能愉快的和已经写好的程序交互，让你拦截、记录、修改程序的运行过程，乐趣多多。支持Windows, macOS, GNU/Linux, iOS, Android, and QNX.

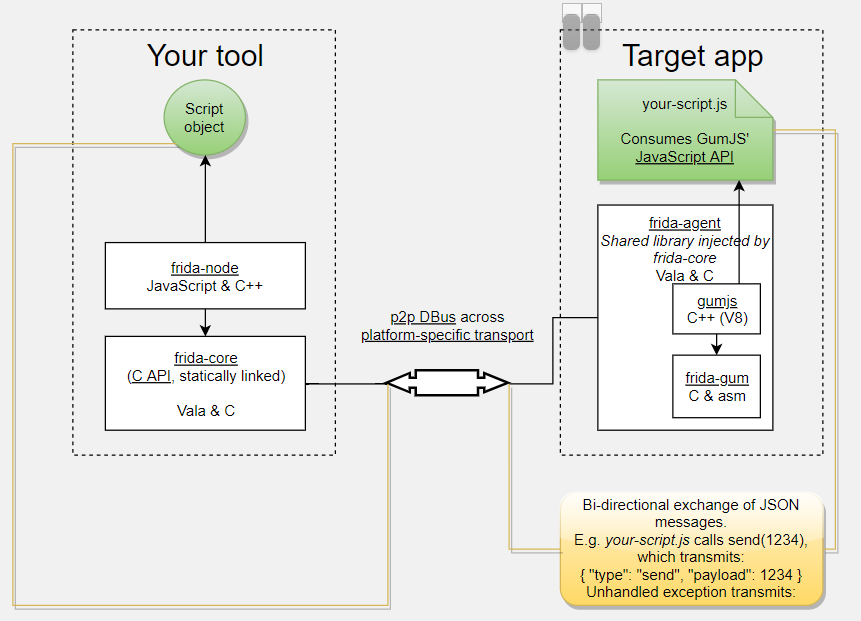

0x01 Frida原理(简单介绍版)

frida-core - Frida core library intended for static linking into bindings. frida-core对服务端监听，注入，控制执行等通用操作进行API抽象管理。

frida-gum - Low-level code instrumentation library used by frida-core. frida-gum提供底层代码执行的支持，如果你在安卓则执行安卓兼容的控制代码，同样的，其他Linux平台IOS平台都使用会对应frida-gum的底层执行版本。

在注入一个脚本时，脚本将通过frida-core核心控制通过TCP协议推送到frida-server注入到目标进程，之后通过frida-gum解释执行底层代码并回传结果。



0x02 Frida自带功能组件

除了自己写功能，frida也提供了一些现成的实用工具。

组件名称

功能描述

实例

frida-server

如果你正在对远程系统，例如USB连接的手机，这个组件将作为中间件提供统一的API访问。因此本地运行无需额外开启frida-server。

Github下载对应版本frida-server推送到远程设备ROOT运行即可。

https://github.com/frida/frida/releases

frida-ps

列举正在运行的进程名和进程号。



frida-ps --help

Usage: frida-ps [options]



Options:

--version show program's version number and exit

-h, --help show this help message and exit

-D ID, --device=ID connect to device with the given ID

-U, --usb connect to USB device

-R, --remote connect to remote frida-server

-H HOST, --host=HOST connect to remote frida-server on HOST

-a, --applications list only applications

-i, --installed include all installed applications

>frida-ps



PID Name

-----------------------------

7008 ApplicationFrameHost.exe

6008 Calculator.exe

6744 svchost.exe

5888 taskhostw.exe

...

frida-CLI

frida控制台游乐园模式开启入口。

允许你将frida框架对目标程序进行启动/附加，之后可以进行控制台交互。



frida --help

Usage: frida [options] target



Options:

--version show program's version number and exit

-h, --help show this help message and exit

-D ID, --device=ID connect to device with the given ID

-U, --usb connect to USB device

-R, --remote connect to remote frida-server

-H HOST, --host=HOST connect to remote frida-server on HOST

-f FILE, --file=FILE spawn FILE

-n NAME, --attach-name=NAME

attach to NAME

-p PID, --attach-pid=PID

attach to PID

--debug enable the Node.js compatible script debugger

--enable-jit enable JIT

-l SCRIPT, --load=SCRIPT

load SCRIPT

-c CODESHARE_URI, --codeshare=CODESHARE_URI

load CODESHARE_URI

-e CODE, --eval=CODE evaluate CODE

-q quiet mode (no prompt) and quit after -l and -e

--no-pause automatically start main thread after startup

-o LOGFILE, --output=LOGFILE

output to log file

# 首先，在本机Windows上运行calc，即计算器。



>frida-ps | findstr /I calc

6008 Calculator.exe



>frida -p 6008

____

/ _ | Frida 12.6.8 - A world-class dynamic instrumentation toolkit

| (_| |

> _ | Commands:

/_/ |_| help -> Displays the help system

. . . . object? -> Display information about 'object'

. . . . exit/quit -> Exit

. . . .

. . . . More info at http://www.frida.re/docs/home/



[Local::PID::6008]-> var a = 123;

undefined

[Local::PID::6008]-> a;

123



# 由于frida的注入使用GoogleV8引擎来执行，后面的都是JavaScript语法

操作。

frida-discover

frida-discover is a tool for discovering internal functions in a program, which can then be traced by using frida-trace.



在执行期间内对目标进行Profiling，用于发现有追踪价值的函数。



frida-discover --help

Usage: frida-discover [options] target



Options:

--version show program's version number and exit

-h, --help show this help message and exit

-D ID, --device=ID connect to device with the given ID

-U, --usb connect to USB device

-R, --remote connect to remote frida-server

-H HOST, --host=HOST connect to remote frida-server on HOST

-f FILE, --file=FILE spawn FILE

-n NAME, --attach-name=NAME

attach to NAME

-p PID, --attach-pid=PID

attach to PID

--debug enable the Node.js compatible script debugger

--enable-jit enable JIT



>frida-ps | findstr /I calc

35112 Calculator.exe

>frida-discover -p 35112



Attaching...

Injecting script...

Tracing 24 threads. Press ENTER to stop.



Windows.UI.Xaml.dll

Calls Function

24121 sub_35d540

1486 sub_121d20

601 sub_121d90

51 sub_17ae60

49 sub_353368

48 sub_168870

1 sub_22b37c

1 sub_1620f0



ntdll.dll

Calls Function

1600 RtlEnterCriticalSection

1595 RtlLeaveCriticalSection

435 RtlAcquireSRWLockShared

1 sub_1c690

1 AlpcInitializeMessageAttribute

1 ZwAlpcQueryInformation



KERNELBASE.dll

Calls Function

212 GetProcessHeap

157 GetLastError

133 sub_896e0

76 sub_8a78c

76 QuirkIsEnabled

1 CallbackMayRunLong

1 sub_8bfbc

1 FlsGetValue



# 吐槽一下，控制不是很完善，Ctrl+C都停不下来非要关掉目标进程。但总体还是很实用的。

frida-trace

frida-trace is a tool for dynamically tracing function calls.



用于动态追踪函数调用。



frida-trace --help

Usage: frida-trace [options] target



Options:

--version show program's version number and exit

-h, --help show this help message and exit

-D ID, --device=ID connect to device with the given ID

-U, --usb connect to USB device

-R, --remote connect to remote frida-server

-H HOST, --host=HOST connect to remote frida-server on HOST

-f FILE, --file=FILE spawn FILE

-n NAME, --attach-name=NAME

attach to NAME

-p PID, --attach-pid=PID

attach to PID

--debug enable the Node.js compatible script debugger

--enable-jit enable JIT

-I MODULE, --include-module=MODULE

include MODULE

-X MODULE, --exclude-module=MODULE

exclude MODULE

-i FUNCTION, --include=FUNCTION

include FUNCTION

-x FUNCTION, --exclude=FUNCTION

exclude FUNCTION

-a MODULE!OFFSET, --add=MODULE!OFFSET

add MODULE!OFFSET

-T, --include-imports

include program's imports

-t MODULE, --include-module-imports=MODULE

include MODULE imports

-m OBJC_METHOD, --include-objc-method=OBJC_METHOD

include OBJC_METHOD

-M OBJC_METHOD, --exclude-objc-method=OBJC_METHOD

exclude OBJC_METHOD

-s DEBUG_SYMBOL, --include-debug-symbol=DEBUG_SYMBOL

include DEBUG_SYMBOL

-q, --quiet do not format output messages

-o OUTPUT, --output=OUTPUT

dump messages to file

#上面的frida-discover追踪到了模块KERNELBASE.dll里面有调用函数GetProcessHeap，那么frida-trace追踪一下调用吧。



>frida-trace -p 36164 -i GetProcessHeap

Instrumenting functions...

GetProcessHeap: Auto-generated handler at "Desktop\test\__handlers__\KERNELBASE.dll\GetProcessHeap.js"

GetProcessHeap: Auto-generated handler at "Desktop\test\__handlers__\KERNEL32.DLL\GetProcessHeap.js"

Started tracing 2 functions. Press Ctrl+C to stop.

/* TID 0x97ec */

860 ms GetProcessHeap()

860 ms GetProcessHeap()

860 ms GetProcessHeap()

860 ms GetProcessHeap()

860 ms GetProcessHeap()

...



# 比较鸡肋，传入参数传出返回值都没有log，sub_8bfbc这种匿名函数还不识别。

frida-ls-devices

This is a command-line tool for listing attached devices, which is very useful when interacting with multiple devices.



有多个设备时用于区分ID。

>frida-ls-devices

Id Type Name

-------- ------ ------------------

local local Local System

beac33b8 usb Xiaomi MI NOTE LTE

tcp remote Local TCP

frida-kill

杀死进程



frida-kill --help

Usage: frida-kill [options] process



Options:

--version show program's version number and exit

-h, --help show this help message and exit

-D ID, --device=ID connect to device with the given ID

-U, --usb connect to USB device

-R, --remote connect to remote frida-server

-H HOST, --host=HOST connect to remote frida-server on HOST



0x03 做个小实验，熟悉一下Frida的运行环境

// test.c
#include <stdio.h>
#include <unistd.h>
void f(int n)
{
  printf ("Number: %d\n", n);
}

int main (int argc,  char * argv[])
{
  int i = 0;
  printf ("f() is at %p\n", f);
  while (1)
  {
    f(i++);
    sleep (1);
  }
}

$ gcc test -o test.c
$ ./test
f() is at 0x400544
Number: 0
Number: 1
Number: 2
…

以上这段C程序将打印出f函数的地址，然后循环每间隔1秒将调用一次f函数。Frida有附加进程并注入代码运行的能力，那么来一段hook代码，在f函数执行时同步触发执行我们的函数。

import frida
import sys

# 获取进程会话
session = frida.attach("test")

# 对当前进程会话创建一个脚本
script = session.create_script("""
Interceptor.attach(ptr("%s"), {
    onEnter: function(args) {
        send(args[0].toInt32());
    }
});
""" % int(sys.argv[1], 16))
# 回调函数
def on_message(message, data):
    print(message, data)
# 绑定回调事件
script.on('message', on_message)
# 将脚本注入会话进程
script.load()

# 阻塞主线程，防止脚本主动退出
sys.stdin.read()



//-------Shell Code-------//
$ sudo /usr/bin/python3 /home/root2/Desktop/Test2/frida/test.py 0x400544
# 以上命令最后传了一个地址，正是之前C代码运行出来的f函数地址
{'type': 'send', 'payload': 310} None
{'type': 'send', 'payload': 311} None
{'type': 'send', 'payload': 312} None
...
# 'payload'就是Js层send函数发出来的值，也就是当时传入f函数的值

修改注入脚本Interceptor.attach的onEnter事件，就可以实现读取写入，阻塞等基本功能。

Frida的用法精髓在于活用内置函数，且数目巨大不便挨个翻译讲解，还需参考官方文档。

https://www.frida.re/docs/javascript-api/
