一、实验目的

  1. 能够编写程序调用OpenDaylight REST API实现特定网络功能；
  2. 能够编写程序调用Ryu REST API实现特定网络功能。

二、实验环境

  1. 下载虚拟机软件Oracle VisualBox或VMware；
  2. 在虚拟机中安装Ubuntu 20.04 Desktop amd64，并完整安装Mininet、OpenDaylight（Carbon版本）、Postman和Ryu；

三、实验要求

（一）基本要求

  1. 编写Python程序，调用OpenDaylight的北向接口实现以下功能

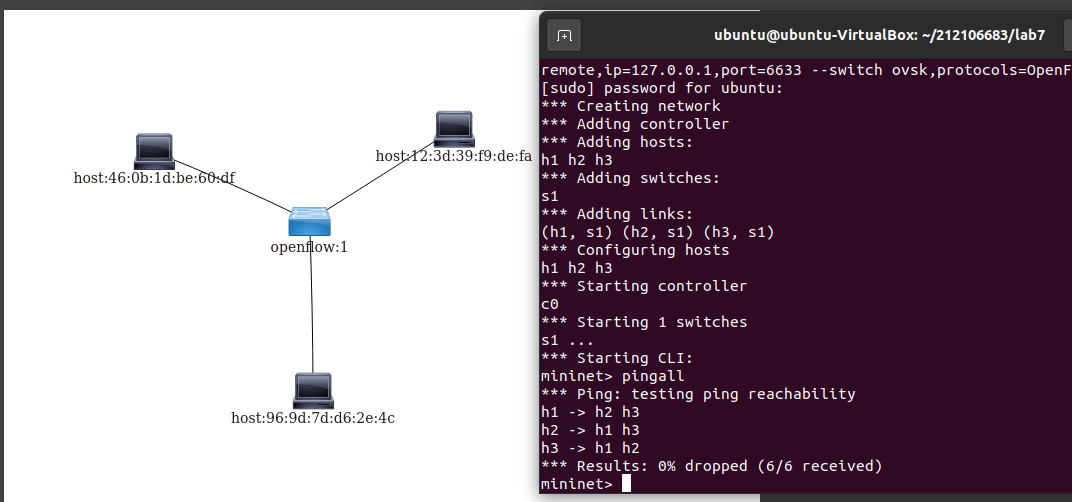

    （1） 利用Mininet平台搭建下图所示网络拓扑，并连接OpenDaylight；

    • 使用命令./distribution-karaf-0.6.4-Carbon/bin/karaf打开ODL控制器
    • 使用命令sudo mn --topo=single,3 --controller=remote,ip=127.0.0.1,port=6633 --switch ovsk,protocols=OpenFlow13创建拓扑并连接控制器



 （2） 下发指令删除s1上的流表数据。

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/'
    headers = {'Content-Type': 'application/json'}
    res = requests.delete(url, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

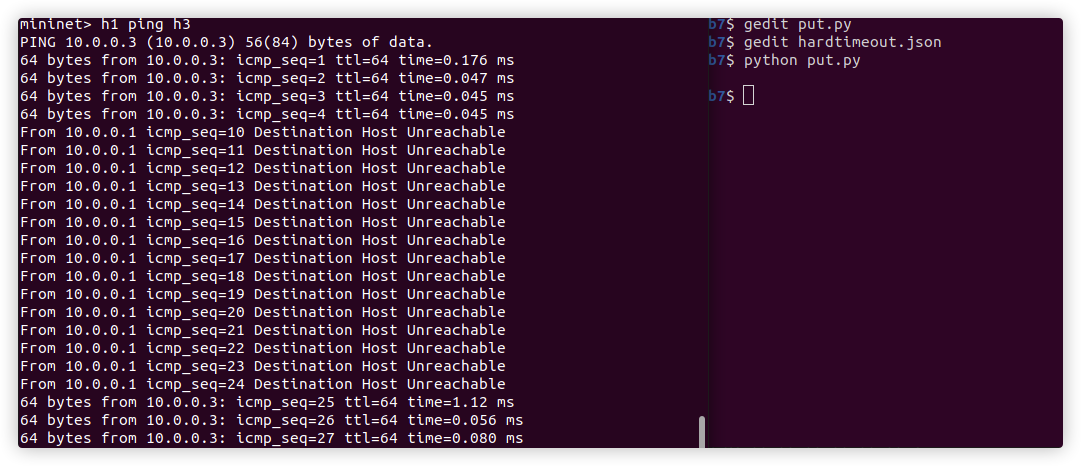

（3） 下发硬超时流表，实现拓扑内主机h1和h3网络中断20s。

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/flow/1'
    with open("./flowtimeout.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.put(url, str, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

json文件：

{
  "flow": [
    {
      "id": "1",
      "match": {
        "in-port": "1",
        "ethernet-match": {
          "ethernet-type": {
            "type": "0x0800"
          }
        },
        "ipv4-destination": "10.0.0.3/32"
      },
      "instructions": {
        "instruction": [
          {
            "order": "0",
            "apply-actions": {
              "action": [
                {
                  "order": "0",
                  "drop-action": {}
                }
              ]
            }
          }
        ]
      },
      "flow-name": "flow",
      "priority": "65535",
      "hard-timeout": "20",
      "cookie": "2",
      "table_id": "0"
    }
  ]
}



 （4） 获取s1上活动的流表数。

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/operational/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/opendaylight-flow-table-statistics:flow-table-statistics'
    headers = {'Content-Type': 'application/json'}
    res = requests.get(url,headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

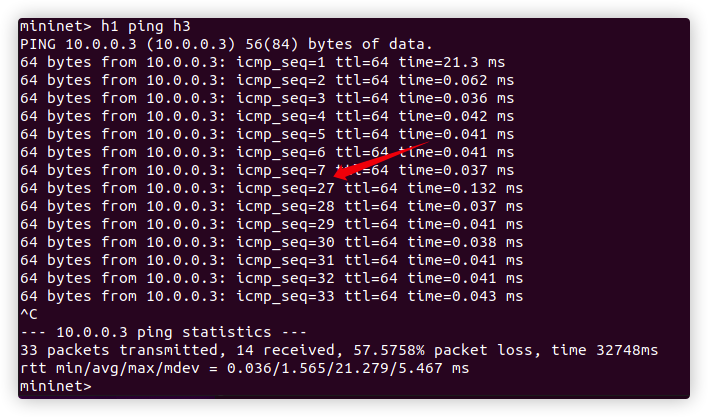

编写Python程序，调用Ryu的北向接口实现以下功能
（1） 实现上述OpenDaylight实验拓扑上相同的硬超时流表下发。

    • 关闭ODL控制器，关闭上次的拓扑并清除拓扑后

    • 使用命令ryu-manager ryu.app.simple_switch_13 ryu.app.ofctl_rest打开Ryu控制器

    • 使用命令sudo mn --topo=single,3 --mac --controller=remote,ip=127.0.0.1,port=6633 --switch ovsk,protocols=OpenFlow13创建拓扑

    • #!/usr/bin/python
import requests
if __name__ == "__main__":
    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    with open("./hardtimeout.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.post(url, str, headers=headers)
    print (res.content)

      json文件：

    • {
    "dpid": 1,
    "cookie": 1,
    "cookie_mask": 1,
    "table_id": 0,
    "hard_timeout": 20,
    "priority": 65535,
    "flags": 1,
    "match":{
        "in_port":1
    },
    "actions":[

    ]
 }



       （2） 参考Ryu REST API的文档，基于VLAN实验的网络拓扑，编程实现相同的VLAN配置。
      提示：拓扑生成后需连接Ryu，且Ryu应能够提供REST API服务

    • #topo.py
from mininet.topo import Topo

class MyTopo(Topo):
    def __init__(self):
        # initilaize topology
        Topo.__init__(self)

        self.addSwitch("s1")
        self.addSwitch("s2")

        self.addHost("h1")
        self.addHost("h2")
        self.addHost("h3")
        self.addHost("h4")

        self.addLink("s1", "h1")
        self.addLink("s1", "h2")
        self.addLink("s2", "h3")
        self.addLink("s2", "h4")
        self.addLink("s1", "s2")

topos = {'mytopo': (lambda: MyTopo())}

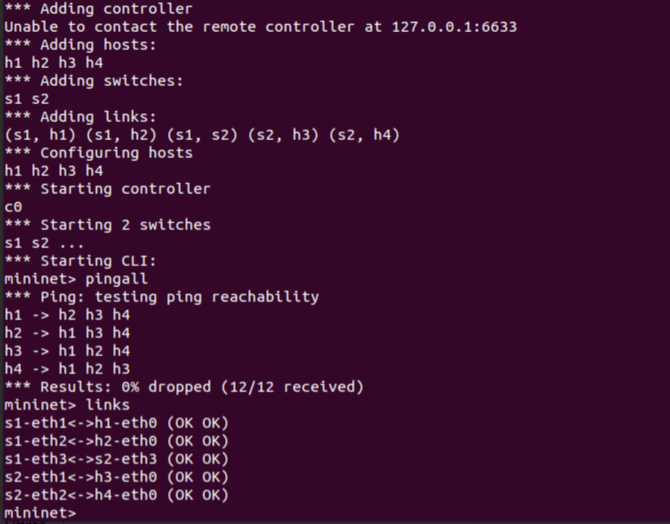

      • 关闭控制器，关闭上一次实验的拓扑并清除拓扑

      • 使用命令ryu-manager ryu.app.simple_switch_13 ryu.app.ofctl_rest打开Ryu控制器

      • 使用命令sudo mn --custom topo.py --topo mytopo --mac --controller=remote,ip=127.0.0.1,port=6633 --switch ovsk,protocols=OpenFlow13创建拓扑

      •



        VLAN_IDHosts
        0 h1 h3
        1 h2 h4

        • 使用命令

        • curl -X DELETE http://127.0.0.1:8080/stats/flowentry/clear/1

        • curl -X DELETE http://127.0.0.1:8080/stats/flowentry/clear/2

        • 删除流表

        • 使用命令python运行下列程序

        • #!/usr/bin/python
import json

import requests

if __name__ == "__main__":
    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    headers = {'Content-Type': 'application/json'}
    flow1 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "in_port": 1
        },
        "actions":[
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4096
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow2 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "in_port": 2
        },
        "actions":[
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4097
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow3 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "vlan_vid": 0
        },
        "actions":[
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 1
            }
        ]
    }
    flow4 = {
        "dpid": 1,
        "priority": 1,
        "match": {
            "vlan_vid": 1
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 2
            }
        ]
    }
    flow5 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "in_port": 1
        },
        "actions": [
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4096
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow6 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "in_port": 2
        },
        "actions": [
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4097
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow7 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "vlan_vid": 0
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 1
            }
        ]
    }
    flow8 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "vlan_vid": 1
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 2
            }
        ]
    }
    res1 = requests.post(url, json.dumps(flow1), headers=headers)
    res2 = requests.post(url, json.dumps(flow2), headers=headers)
    res3 = requests.post(url, json.dumps(flow3), headers=headers)
    res4 = requests.post(url, json.dumps(flow4), headers=headers)
    res5 = requests.post(url, json.dumps(flow5), headers=headers)
    res6 = requests.post(url, json.dumps(flow6), headers=headers)
    res7 = requests.post(url, json.dumps(flow7), headers=headers)
    res8 = requests.post(url, json.dumps(flow8), headers=headers)

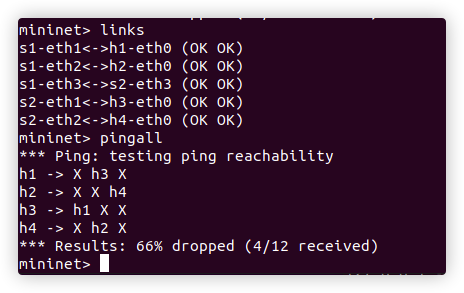

          （二）进阶要求

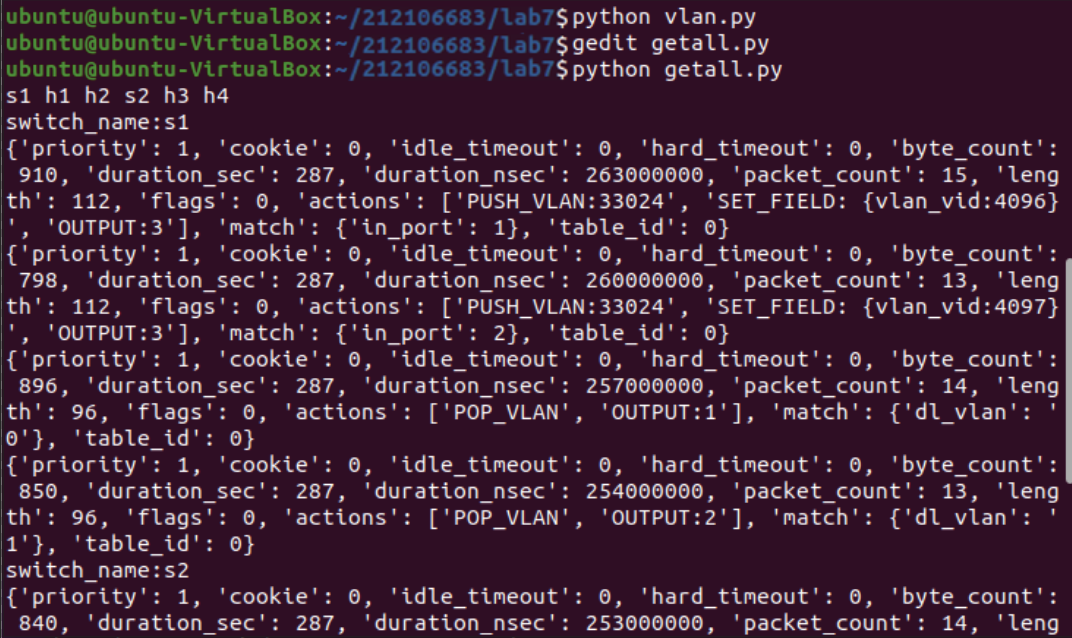

          OpenDaylight或Ryu任选其一，编程实现查看前序VLAN实验拓扑中所有节点（含交换机、主机）的名称，以及显示每台交换机的所有流表项。

          • 运行下述代码：
        • #getnodes.py
import requests
import time
import re


class GetNodes:
    def __init__(self, ip):
        self.ip = ip

    def get_switch_id(self):
        url = 'http://' + self.ip + '/stats/switches'
        re_switch_id = requests.get(url=url).json()
        switch_id_hex = []
        for i in re_switch_id:
            switch_id_hex.append(hex(i))

        return switch_id_hex

    def getflow(self):
        url = 'http://' + self.ip + '/stats/flow/%d'
        switch_list = self.get_switch_id()
        ret_flow = []
        for switch in switch_list:
            new_url = format(url % int(switch, 16))
            re_switch_flow = requests.get(url=new_url).json()
            ret_flow.append(re_switch_flow)
        return ret_flow

    def show(self):
        flow_list = self.getflow()
        for flow in flow_list:
            for dpid in flow.keys():
                dp_id = dpid
                switchnum= '{1}'.format(hex(int(dp_id)), int(dp_id))
                print('s'+switchnum,end = " ")
                switchnum = int(switchnum)
            for list_table in flow.values():
                for table in list_table:
                    string1 = str(table)
                    if re.search("'dl_vlan': '(.*?)'", string1) is not None:
                       num = re.search("'dl_vlan': '(.*?)'", string1).group(1);
                       if num == '0' and switchnum == 1:
                          print('h1',end = " ")
                       if num == '1' and switchnum == 1:
                          print('h2',end = " ")
                       if num == '0' and switchnum == 2:
                          print('h3',end = " ")
                       if num == '1' and switchnum == 2:
                          print('h4',end = " ")
        print("")
        flow_list = self.getflow()
        for flow in flow_list:
            for dpid in flow.keys():
                dp_id = dpid
                print('switch_name:s{1}'.format(hex(int(dp_id)), int(dp_id)))
            for list_table in flow.values():
                for table in list_table:
                    print(table)
s1 = GetNodes("127.0.0.1:8080")
s1.show()





           个人总结

          这次实验有较大的难度也比较综合，用到了之前OpenDaylight和Ryu的相关知识，经过复习才顺利完成。经过这次实验，我大致了编写程序调用OpenDaylight REST API和Ryu REST API实现特定网络功能。重新回顾PDF文档熟悉了相关控制器的使用，对控制器的启动，下发流表等操作更熟悉了，并且在实践中通过阅读相关文档，查阅资料，了解到了北向接口API其实并没有一个统一的标准，不同的控制器对应着的API也有所区别，体会到了SDN框架的灵活性和可编程性。
