SimpleMongoDbFactory类已经失效，被SimpleMongoClientDbFactory替代

老版本的mongodbtemplate连接池的用法




spring:
  data:
    mongodb:
      address: 127.0.0.1:37017
      replica-set:
      database: xxx
      username: xxx
      password: xxxx
      # Configure spring.data.mongodbDB Pool
      min-connections-per-host: 10
      max-connections-per-host: 100
      threads-allowed-to-block-for-connection-multiplier: 5
      server-selection-timeout: 30000
      max-wait-time: 120000
      max-connection-idle-time: 0
      max-connection-life-time: 0
      connect-timeout: 10000
      socket-timeout: 0
      socket-keep-alive: false
      ssl-enabled: false
      ssl-invalid-host-name-allowed: false
      always-use-m-beans: false
      heartbeat-socket-timeout: 20000
      heartbeat-connect-timeout: 20000
      min-heartbeat-frequency: 500
      heartbeat-frequency: 10000
      local-threshold: 15
      authentication-database: admin
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.



import java.util.List;

import lombok.Data;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;

@Data
@Component
//@PropertySource(value = "classpath:mongo-pool.properties")
@ConfigurationProperties(prefix = "spring.data.mongodb")
public class MongoSettingsProperties {

    private List<String> address;
    private String replicaSet;
    private String database;
    private String username;
    private String password;
    private Integer minConnectionsPerHost = 0;
    private Integer maxConnectionsPerHost = 100;
    private Integer threadsAllowedToBlockForConnectionMultiplier = 5;
    private Integer serverSelectionTimeout = 30000;
    private Integer maxWaitTime = 120000;
    private Integer maxConnectionIdleTime = 0;
    private Integer maxConnectionLifeTime = 0;
    private Integer connectTimeout = 10000;
    private Integer socketTimeout = 0;
    private Boolean socketKeepAlive = false;
    private Boolean sslEnabled = false;
    private Boolean sslInvalidHostNameAllowed = false;
    private Boolean alwaysUseMBeans = false;
    private Integer heartbeatConnectTimeout = 20000;
    private Integer heartbeatSocketTimeout = 20000;
    private Integer minHeartbeatFrequency = 500;
    private Integer heartbeatFrequency = 10000;
    private Integer localThreshold = 15;
    private String authenticationDatabase;


}
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.



import java.util.ArrayList;
import java.util.List;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.mongodb.MongoDbFactory;
import org.springframework.data.mongodb.core.SimpleMongoClientDbFactory;
import org.springframework.data.mongodb.core.SimpleMongoDbFactory;

import com.mongodb.MongoClient;
import com.mongodb.MongoClientOptions;
import com.mongodb.MongoCredential;
import com.mongodb.ServerAddress;

@Configuration
public class MongoConfig {
    // 覆盖默认的MongoDbFactory
    @Bean
    public MongoDbFactory mongoDbFactory(MongoSettingsProperties mongoSettingsProperties) {
        // 客户端配置（连接数、副本集群验证）
        MongoClientOptions.Builder builder = new MongoClientOptions.Builder();
        builder.connectionsPerHost(mongoSettingsProperties.getMaxConnectionsPerHost());
        builder.minConnectionsPerHost(mongoSettingsProperties.getMinConnectionsPerHost());
        if (mongoSettingsProperties.getReplicaSet() != null) {
            builder.requiredReplicaSetName(mongoSettingsProperties.getReplicaSet());
        }
        builder.threadsAllowedToBlockForConnectionMultiplier(
                mongoSettingsProperties.getThreadsAllowedToBlockForConnectionMultiplier());
        builder.serverSelectionTimeout(mongoSettingsProperties.getServerSelectionTimeout());
        builder.maxWaitTime(mongoSettingsProperties.getMaxWaitTime());
        builder.maxConnectionIdleTime(mongoSettingsProperties.getMaxConnectionIdleTime());
        builder.maxConnectionLifeTime(mongoSettingsProperties.getMaxConnectionLifeTime());
        builder.connectTimeout(mongoSettingsProperties.getConnectTimeout());
        builder.socketTimeout(mongoSettingsProperties.getSocketTimeout());
        builder.sslEnabled(mongoSettingsProperties.getSslEnabled());
        builder.sslInvalidHostNameAllowed(mongoSettingsProperties.getSslInvalidHostNameAllowed());
        builder.alwaysUseMBeans(mongoSettingsProperties.getAlwaysUseMBeans());
        builder.heartbeatFrequency(mongoSettingsProperties.getHeartbeatFrequency());
        builder.minHeartbeatFrequency(mongoSettingsProperties.getMinHeartbeatFrequency());
        builder.heartbeatConnectTimeout(mongoSettingsProperties.getHeartbeatConnectTimeout());
        builder.heartbeatSocketTimeout(mongoSettingsProperties.getHeartbeatSocketTimeout());
        builder.localThreshold(mongoSettingsProperties.getLocalThreshold());

        MongoClientOptions mongoClientOptions = builder.build();

        // MongoDB地址列表
        List<ServerAddress> serverAddresses = new ArrayList<>();
        for (String address : mongoSettingsProperties.getAddress()) {
            String[] hostAndPort = address.split(":");
            String host = hostAndPort[0];
            Integer port = Integer.parseInt(hostAndPort[1]);
            ServerAddress serverAddress = new ServerAddress(host, port);
            serverAddresses.add(serverAddress);
        }
        System.out.println("serverAddresses:" + serverAddresses.toString());

        // 连接认证
        //List<MongoCredential> mongoCredentialList = new ArrayList<>();
        // 创建客户端和Factory
        MongoClient mongoClient =null;
        if (mongoSettingsProperties.getUsername() != null) {
            MongoCredential mongoCredential= MongoCredential.createScramSha1Credential(
                            mongoSettingsProperties.getUsername(),
                            mongoSettingsProperties.getAuthenticationDatabase() != null ? mongoSettingsProperties
                                    .getAuthenticationDatabase() : mongoSettingsProperties.getDatabase(),
                            mongoSettingsProperties.getPassword().toCharArray());
            mongoClient= new MongoClient(serverAddresses,mongoCredential, mongoClientOptions);
        }
        else{
            mongoClient= new MongoClient(serverAddresses, mongoClientOptions);
        }


        MongoDbFactory mongoDbFactory = new SimpleMongoDbFactory(mongoClient,mongoSettingsProperties.getDatabase());

        return mongoDbFactory;
    }
}
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
  • 50.
  • 51.
  • 52.
  • 53.
  • 54.
  • 55.
  • 56.
  • 57.
  • 58.
  • 59.
  • 60.
  • 61.
  • 62.
  • 63.
  • 64.
  • 65.
  • 66.
  • 67.
  • 68.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 75.
  • 76.
  • 77.
  • 78.



SimpleMongoDbFactory类已经失效，被SimpleMongoClientDbFactory替代_连接数



 SimpleMongoDbFactory类已经失效，被SimpleMongoClientDbFactory替代_spring_02

springboot2.2.0升级过程

 MongoDB Driver：使用正确的姿势连接复制集



MongoDB Driver：使用正确的姿势连接复制集

MongoDB复制集（Replica Set）通过存储多份数据副本来保证数据的高可靠，通过自动的主备切换机制来保证服务的高可用。但需要注意的时，连接副本集的姿势如果不对，服务高可用将不复存在。

使用复制集时你需要知道的

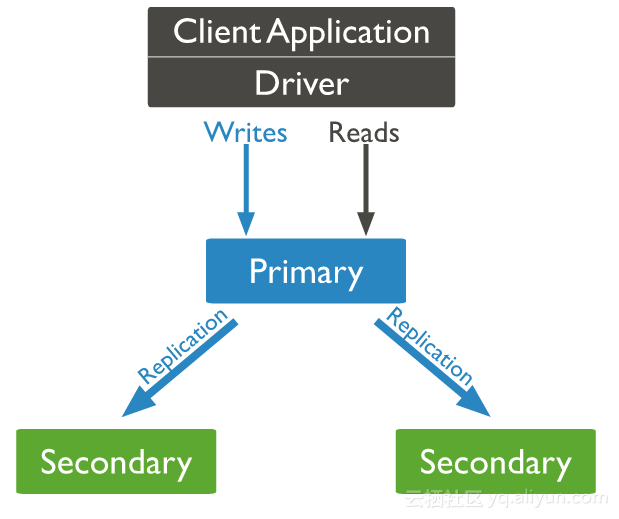

MongoDB复制集里Primary节点是不固定的，当遇到复制集轮转升级、Primary宕机、网络分区等场景时，复制集可能会选举出一个新的Primary，而原来的Primary则会降级为Secondary，即发生主备切换。

总而言之，MongoDB复制集里Primary节点是不固定的，不固定的，不固定的，重要的事情说3遍。

当连接复制集时，如果直接指定Primary的地址来连接，当时可能可以正确读写数据的，但一旦复制集发生主备切换，你连接的Primary会降级为Secondary，你将无法继续执行写操作，这将严重影响到你的线上服务。

所以生产环境千万不要直连Primary，千万不要直连Primary，千万不要直连Primary。

说了这么多，到底该如何连接复制集？

正确连接复制集的姿势

要正确连接复制集，需要先了解下MongoDB的Connection String URI，所有官方的driver都支持以Connection String的方式来连接MongoDB。

下面就是Connection String包含的主要内容

mongodb://[username:password@]host1[:port1][,host2[:port2],...[,hostN[:portN]]][/[database][?options]]
  • mongodb:// 前缀，代表这是一个Connection String
  • username:password@ 如果启用了鉴权，需要指定用户密码
  • hostX:portX 复制集成员的ip:port信息，多个成员以逗号分割
  • /database 鉴权时，用户帐号所属的数据库
  • ?options 指定额外的连接选项

以连接AliCloudDB for MongoDB为例，当你购买阿里云MongoDB复制集时，就会得到复制集的名称、以及复制集成员的地址信息。

为了方便用户使用，控制台上也生成了连接复制集的Connection String及通过Mongo Shell连接到命令。

例如通过java来连接，更多的DEMO

MongoClientURI connectionString = new MongoClientURI("mongodb://root:****@dds-bp114e3f1fc441342.mongodb.rds.aliyuncs.com:3717,dds-bp114e3f1fc441341.mongodb.rds.aliyuncs.com:3717/admin?replicaSet=mgset-677201"); // ****替换为root密码
MongoClient client = new MongoClient(connectionString);
MongoDatabase database = client.getDatabase("mydb");
MongoCollection collection = database.getCollection("mycoll");

通过正确的Connection String来连接MongoDB复制集时，客户端会自动检测复制集的主备关系，当主备关系发生变化时，自动将写切换到新的主上，以保证服务的高可用。

常用连接参数

如何实现读写分离？

在options里添加readPreference=secondaryPreferred即可实现，读请求优先到Secondary节点，从而实现读写分离的功能，更多读选项参考Read preferences

如何限制连接数?

在options里添加maxPoolSize=xx即可将客户端连接池限制在xx以内。

如何保证数据写入到大多数节点后才返回?

在options里添加w= majority即可保证写请求成功写入大多数节点才向客户端确认，更多写选项参考Write Concern

作者简介

张友东，阿里巴巴技术专家，主要关注分布式存储、Nosql数据库等技术领域，先后参与TFS（淘宝分布式文件系统)、AliCloudDB for Redis等项目，目前主要从事AlidCloud For MongoDB的研发工作，致力于让开发者用上最好的MongoDB云服务。
