LeetGPU的MOJO🔥实践

本博客原文地址：https://www.cnblogs.com/BobHuang/p/18890009

Chris Lattner最近AI民主化的文章写得很爽，并在Modular’s bet to break out of the Matrix 强烈推荐了他在做的MOJO🔥。

学习MOJO可以看官方文档、开源库的代码和开源大礼包，实际开发中应该享受的是Write CPU+GPU code together, unlocking incredible performance的slogan开发快感，学习算子的我仅是来体验下。

目前都是写了native的方法，等我有时间再探索探索。很像写CUDA，感觉还是Triton和CuTeDSL更胜一筹。以下代码已push到LeetGPU Github仓库，看代码更方便。同系列文章还有LeetGPU入门教程 (CUDA guide最佳实践)。

一、* 关于 Chris Lattner

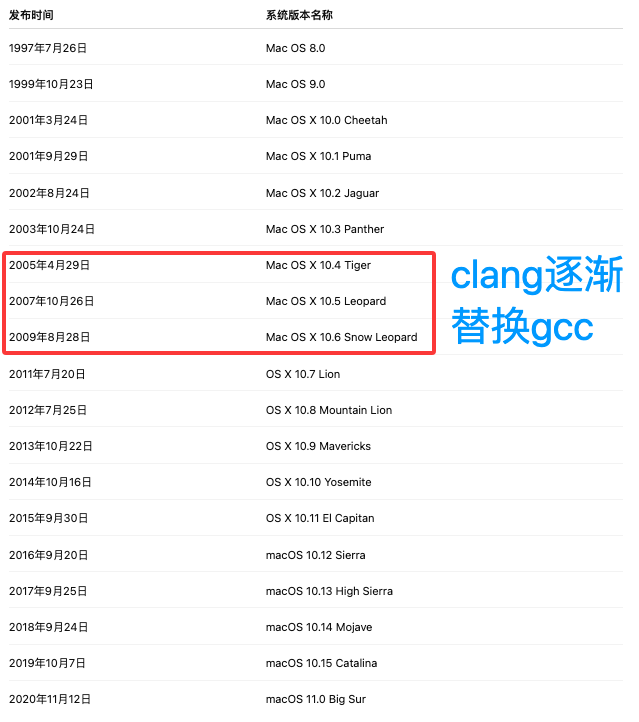

Chris Lattner是LLVM项目的发起人，他在 2000 年至 2005 年期间独立开发了 LLVM 的早期版本，并编写了大部分初始代码。曾任苹果公司编译器团队的首席架构师，是苹果自创编程语言Swift的创造者。初中读书时我了解到了Mac上的clang和Swift，clang在10.4开始用于底层优化（如 OpenGL 着色器编译），10.5作为实验性，并在10.6作为编译可选项，具体Mac版本如下所示。

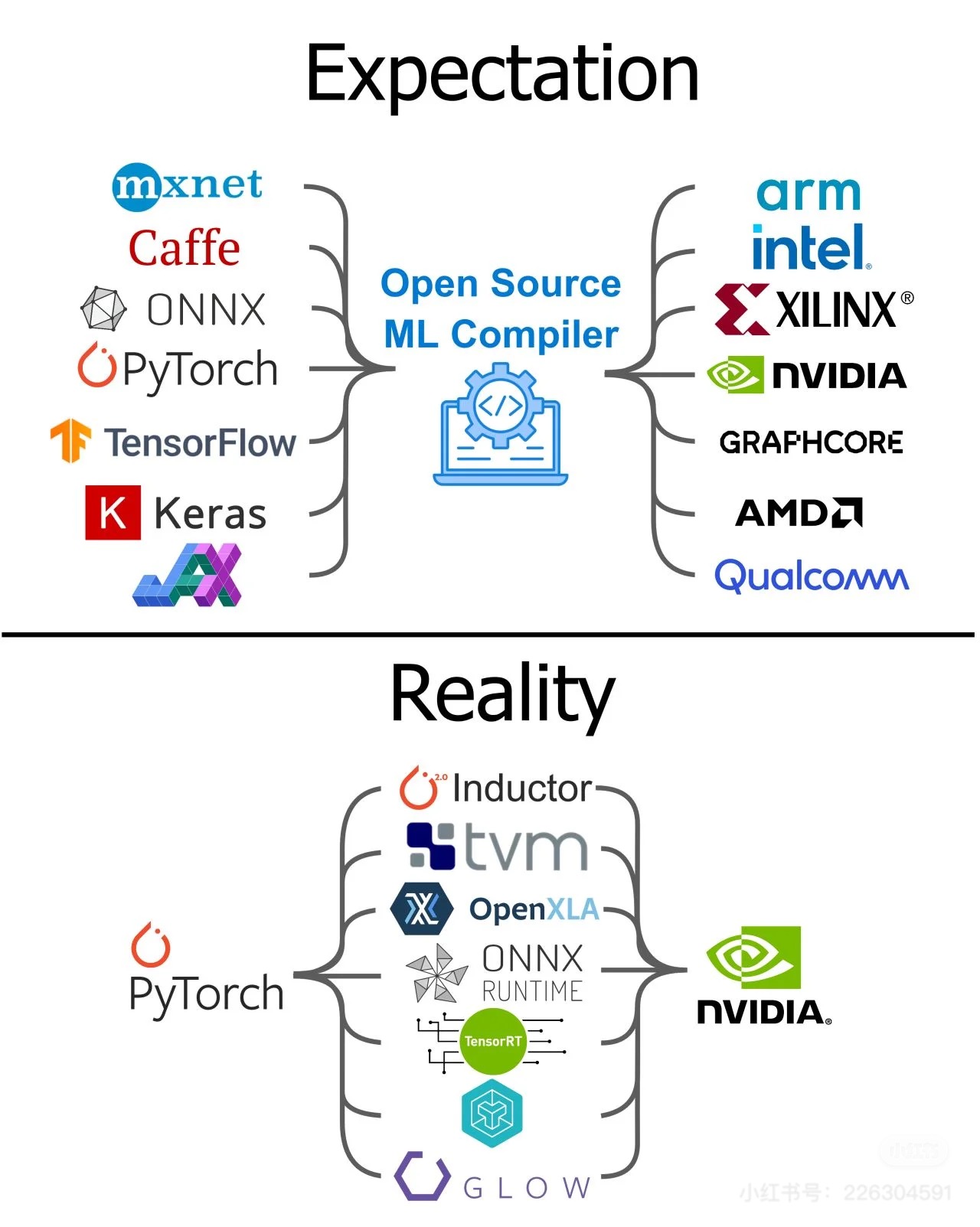

Chris Lattner2018年在Google Brain主导开发了MLIR，并在2019年4月正式开源出来。感谢Chris哥哥赏饭吃，个人认为这个编译器基础设施设计得不错，催生了Triton的诞生。Chris Lattner设计 MLIR 的初衷是解决 AI 编译器生态的碎片化问题，但是好像都是Nvidia的形状。Triton能开源出来，还是非常感动的，会有点机会。Modular看起来并不会开源底层编译器，要吃饭的，都是Python kernel mode，并用MLIR做的后端。

二、Vector Addition

向量C=向量A + 向量B，和 CUDA 写起来没太多不同，是线程级的编程，语言是Python。它是statically typed静态类型的，不支持implicit conversions隐式类型转换，所以算完idx和N比较需要显式类型转换。注意使用@parameter，注释解释这个装饰器The function that will be launched and distributed across GPU threads.，其实就是编译期常量参数（compile-time constant）的修饰符。

from gpu.host import DeviceContext
from gpu.id import block_dim, block_idx, thread_idx
from memory import UnsafePointer
from math import ceildiv

@parameter
fn vector_add_kernel(A: UnsafePointer[Float32], B: UnsafePointer[Float32], C: UnsafePointer[Float32], N: Int32):
    var idx = block_dim.x * block_idx.x + thread_idx.x
    if Int32(idx) < N:
        C[idx] = A[idx] + B[idx]

# A, B, C are device pointers (i.e. pointers to memory on the GPU)
@export
def solve(A: UnsafePointer[Float32], B: UnsafePointer[Float32], C: UnsafePointer[Float32], N: Int32):
    var BLOCK_SIZE: Int32 = 128
    var ctx = DeviceContext()
    var num_blocks = ceildiv(N, BLOCK_SIZE)

    ctx.enqueue_function[vector_add_kernel](
        A, B, C, N,
        grid_dim  = num_blocks,
        block_dim = BLOCK_SIZE
    )

    ctx.synchronize()

三、matrix-multiplication

C=A*B，矩阵A是M*N，矩阵B是N*K, 得到的矩阵C是M*K，C[m][k]的值将由A的一行A[m][i]和对应的B的一列B[i][k]相乘得到，在KMN的循环顺序下我们串行的代码是这样的。

void matmul(const float* A, const float* B, float* C, int M, int N, int K) {
    memset(C, 0, M * K * sizeof(float));
    for (int col = 0; col < K; col++) {
        for (int row = 0; row < M; row++) {
            for (int i = 0; i < N; i++) {
                C[row * K + k] += A[row * N + i] * B[i * K + col];
            }
        }
    }
}

继续按照CUDA的方法重写一遍。

from gpu.host import DeviceContext
from gpu.id import block_dim, block_idx, thread_idx
from memory import UnsafePointer
from math.math import ceildiv

@parameter
fn matrix_multiplication_kernel(A: UnsafePointer[Float32], B: UnsafePointer[Float32], C: UnsafePointer[Float32], M: Int32, N: Int32, K: Int32):
    var col = block_idx.x * block_dim.x + thread_idx.x
    var row = block_idx.y * block_dim.y + thread_idx.y

    if Int32(row) < M and Int32(col) < K:
        var sum : Float32 = 0.0
        for i in range(N):
            sum += A[row * N + i] * B[i * K + col]
        C[row * K + col] = sum

# A, B, C are device pointers (i.e. pointers to memory on the GPU)
@export
def solve(A: UnsafePointer[Float32], B: UnsafePointer[Float32], C: UnsafePointer[Float32], M: Int32, N: Int32, K: Int32):
    var BLOCK_SIZE: Int32 = 16
    var ctx = DeviceContext()

    var grid_dim_x = ceildiv(K, BLOCK_SIZE)
    var grid_dim_y = ceildiv(M, BLOCK_SIZE)

    ctx.enqueue_function[matrix_multiplication_kernel](
        A, B, C, M, N, K,
        grid_dim = (grid_dim_x, grid_dim_y),
        block_dim = (BLOCK_SIZE, BLOCK_SIZE)
    )

    ctx.synchronize()

开源kernel更优秀max/kernels/src/linalg/matmul_sm90.mojo，等我周末也试试

四、Matrix Transpose

naive的方法就是转换索引，照抄之前CUDA的写法吧

from gpu.host import DeviceContext
from gpu.id import block_dim, block_idx, thread_idx
from memory import UnsafePointer
from math import ceildiv

fn matrix_transpose_kernel(input: UnsafePointer[Float32], output: UnsafePointer[Float32], rows: Int32, cols: Int32):
    var col = block_idx.x * block_dim.x + thread_idx.x
    var row = block_idx.y * block_dim.y + thread_idx.y
    if Int32(col) < cols and Int32(row) < rows:
        output[col * rows + row] = input[row * cols + col]

# input, output are device pointers (i.e. pointers to memory on the GPU)
@export
def solve(input: UnsafePointer[Float32], output: UnsafePointer[Float32], rows: Int32, cols: Int32):
    var BLOCK_SIZE: Int32 = 32
    var ctx = DeviceContext()

    var grid_dim_x = ceildiv(cols, BLOCK_SIZE)
    var grid_dim_y = ceildiv(rows, BLOCK_SIZE)

    ctx.enqueue_function[matrix_transpose_kernel](
        input, output, rows, cols,
        grid_dim = (grid_dim_x, grid_dim_y),
        block_dim = (BLOCK_SIZE, BLOCK_SIZE)
    )

    ctx.synchronize()

五、softmax

softmax所用公式为\(\sigma(\mathbf{z})_i \;=\; \frac{\exp\bigl(z_i - \max_k z_k\bigr)} {\displaystyle\sum_{j=1}^{K} \exp\bigl(z_j - \max_k z_k\bigr)}\)，那我mojo肯定能享受到reduce的高级操作吧，确实有的。

from gpu.host import DeviceContext
from gpu.id import block_dim, block_idx, thread_idx
from gpu import barrier
from memory import UnsafePointer
from buffer import NDBuffer
from math import ceildiv, exp
from gpu.memory import AddressSpace
from algorithm._gpu.reduction import block_reduce

@parameter
fn softmax_kernel(input: UnsafePointer[Float32], output: UnsafePointer[Float32], N: Int32):
    alias BLOCK_SIZE: Int = 1024
    var tid = thread_idx.x
    if tid == 0:
        output[0] = 1
    var max_buf = NDBuffer[
        DType.float32, 1, MutableAnyOrigin, 1, address_space = AddressSpace.SHARED
    ].stack_allocation()
    var sum_buf = NDBuffer[
        DType.float32, 1, MutableAnyOrigin, 1, address_space = AddressSpace.SHARED
    ].stack_allocation()

    # Step 1: compute max
    var local_max = Scalar[DType.float32](input[tid])
    for i in range(tid + BLOCK_SIZE, N, BLOCK_SIZE):
        local_max = max(local_max, input[i])

    @parameter
    @always_inline
    fn _max[
        type: DType, width: Int
    ](x: SIMD[type, width], y: SIMD[type, width]) -> SIMD[type, width]:
        return max(x,y)

    var block_max = block_reduce[BLOCK_SIZE, _max](local_max, 0)

    if tid == 0:
        max_buf[0] = block_max
    barrier()

    # Step 2: out[i] = exp(in[i] - max) and compute sum of out[i]
    var local_sum = Scalar[DType.float32](0)
    for i in range(tid, N, BLOCK_SIZE):
        local_sum += exp(input[i] - max_buf[0])

    @parameter
    @always_inline
    fn _sum[
        type: DType, width: Int
    ](x: SIMD[type, width], y: SIMD[type, width]) -> SIMD[type, width]:
        return x+y

    var block_sum = block_reduce[BLOCK_SIZE, _sum](local_sum, 0)

    if tid == 0:
        sum_buf[0] = block_sum
    barrier()

    # Step 3: Normalize output
    for i in range(tid, N, BLOCK_SIZE):
        output[i] = exp(input[i] - max_buf[0]) / sum_buf[0]

@export
def solve(input: UnsafePointer[Float32], output: UnsafePointer[Float32], N: Int32):
    var BLOCK_SIZE: Int32 = 1024
    var ctx = DeviceContext()
    var num_blocks = ceildiv(N, BLOCK_SIZE)

    ctx.enqueue_function[softmax_kernel](
        input, output, N,
        grid_dim  = num_blocks,
        block_dim = BLOCK_SIZE
    )

    ctx.synchronize()
