NETCORE - OpenId 鉴权模式

　　环境：.net8 + efcore8 + mysql8 + openIddict7 ，不集成ASP.NET Core Identity ，使用自已的用户表登录

一、修改数据库

　　数据库使用 mysql，创建数据库 openauth，字符集为 utf8mb3

二、创建服务端

1. 项目搭建

　　项目框架：.net8 + webapi

　　项目插件：EfCore8 + OpenIddict7

2. 配置文件　

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",

  "ConnectionStrings": {
    "DefaultConnection": "Server=localhost;Port=3306;Database=openauth;Uid=root;Pwd=123456;Charset=utf8mb3;SslMode=Preferred;AllowPublicKeyRetrieval=true;"
  }
}

3. 生成数据库上下文文件

在程序包管理器控制台中执行：

Scaffold-DbContext -Connection "server=localhost;userid=root;password=123456;database=openauth;" -Provider Pomelo.EntityFrameworkCore.MySql -OutputDir Models -ContextDir Context -Context DataBaseOpenAuth -UseDatabaseNames -Force -NoOnConfiguring

创建部分类 Context / DataBaseOpenAuth.OpenIddict.cs

using Microsoft.EntityFrameworkCore;
using OpenIddict.EntityFrameworkCore.Models;

namespace Rail.AuthServer.Context
{
    public partial class DataBaseOpenAuth
    {
        // OpenIddict实体集
        public DbSet<OpenIddictEntityFrameworkCoreApplication> Applications { get; set; }
        public DbSet<OpenIddictEntityFrameworkCoreAuthorization> Authorizations { get; set; }
        public DbSet<OpenIddictEntityFrameworkCoreScope> Scopes { get; set; }
        public DbSet<OpenIddictEntityFrameworkCoreToken> Tokens { get; set; }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder)
        {
            // 配置OpenIddict
            modelBuilder.UseOpenIddict();

            // 这里可以添加其他自定义配置
        }
    }
}

4. 注入OpenId

编辑 Program.cs

using Microsoft.EntityFrameworkCore;
using OpenIddict.Abstractions;
using OpenIddict.Validation.AspNetCore;
using Rail.AuthServer.Context;
using static OpenIddict.Abstractions.OpenIddictConstants;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.


//Scaffold-DbContext -Connection "server=localhost;userid=root;password=123456;database=openauth;" -Provider Pomelo.EntityFrameworkCore.MySql -OutputDir Models -ContextDir Context -Context DataBaseOpenAuth -UseDatabaseNames -Force -NoOnConfiguring




// 添加数据库上下文
var connectionString = builder.Configuration.GetConnectionString("DefaultConnection");
builder.Services.AddDbContext<DataBaseOpenAuth>(options =>
{
    options.UseMySql(connectionString, ServerVersion.AutoDetect(connectionString));
    options.UseOpenIddict();
});


// 添加OpenIddict服务
builder.Services.AddOpenIddict()
    .AddCore(options =>
    {
        options.UseEntityFrameworkCore()
               .UseDbContext<DataBaseOpenAuth>();
    })
    .AddServer(options =>
    {
        // 设置端点
        options.SetTokenEndpointUris("connect/token");
        options.SetAuthorizationEndpointUris("connect/authorize");

        // 配置支持的授权类型
        options.AllowPasswordFlow()
               .AllowRefreshTokenFlow()
               .AllowClientCredentialsFlow()
               .AllowAuthorizationCodeFlow();

        // 各种token的默认过期时间
        options.SetAccessTokenLifetime(TimeSpan.FromHours(1));          // 访问令牌：1小时
        options.SetRefreshTokenLifetime(TimeSpan.FromDays(30));         // 刷新令牌：30天
        options.SetAuthorizationCodeLifetime(TimeSpan.FromMinutes(10)); // 授权码：10分钟
        options.SetIdentityTokenLifetime(TimeSpan.FromHours(1));        // 身份令牌：1小时
        options.SetUserCodeLifetime(TimeSpan.FromMinutes(5));           // 用户码：5分钟
        options.SetDeviceCodeLifetime(TimeSpan.FromMinutes(15));        // 设备码：15分钟

        // 刷新令牌设置 ,滚动刷新令牌配置 - OpenIddict 7 方式
        options.SetRefreshTokenReuseLeeway(TimeSpan.Zero); // 设置为0表示禁用重用



        // 注册签名和加密证书
        options.AddDevelopmentEncryptionCertificate()
               .AddDevelopmentSigningCertificate();

        // 注册范围
        options.RegisterScopes(
            Scopes.Email,
            Scopes.Profile,
            Scopes.Roles,
            Scopes.OfflineAccess); // 包含刷新令牌

        // 注册ASP.NET Core主机并配置选项
        options.UseAspNetCore()
               .EnableTokenEndpointPassthrough()
               .EnableAuthorizationEndpointPassthrough();


    })
    .AddValidation(options =>
    {
        options.UseLocalServer();
        options.UseAspNetCore();
    });

// 添加认证服务
builder.Services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme;
});

// 添加授权服务
builder.Services.AddAuthorization();



builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();








var app = builder.Build();

// 初始化OpenIddict数据库
using (var scope = app.Services.CreateScope())
{
    var context = scope.ServiceProvider.GetRequiredService<DataBaseOpenAuth>();
    await context.Database.EnsureCreatedAsync();

    var manager = scope.ServiceProvider.GetRequiredService<IOpenIddictApplicationManager>();

    // 创建客户端应用（如果不存在）
    if (await manager.FindByClientIdAsync("console_app") is null)
    {
        await manager.CreateAsync(new OpenIddictApplicationDescriptor
        {
            ClientId = "console_app",
            ClientSecret = "console_app_secret",
            DisplayName = "Console Application",
            Permissions =
            {
                Permissions.Endpoints.Token,
                Permissions.Endpoints.Authorization,
                Permissions.GrantTypes.Password,
                Permissions.GrantTypes.RefreshToken,
                Permissions.GrantTypes.ClientCredentials,
                Permissions.ResponseTypes.Code,
                Permissions.Scopes.Email,
                Permissions.Scopes.Profile,
                Permissions.Scopes.Roles
            }
        });
    }
}


// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseHttpsRedirection();


app.UseAuthentication();
app.UseAuthorization();


app.MapControllers();

app.Run();

5. 运行

　　运行后自动生成4张权限表

6. 发现文档

https://localhost:7231/.well-known/openid-configuration

返回结果：

{
    "issuer": "https://localhost:7231/",
    "authorization_endpoint": "https://localhost:7231/connect/authorize",
    "token_endpoint": "https://localhost:7231/connect/token",
    "jwks_uri": "https://localhost:7231/.well-known/jwks",
    "grant_types_supported": [
        "password",
        "refresh_token",
        "client_credentials"
    ],
    "scopes_supported": [
        "openid",
        "offline_access"
    ],
    "claims_supported": [
        "aud",
        "exp",
        "iat",
        "iss",
        "sub"
    ],
    "id_token_signing_alg_values_supported": [
        "RS256"
    ],
    "subject_types_supported": [
        "public"
    ],
    "prompt_values_supported": [
        "consent",
        "login",
        "none",
        "select_account"
    ],
    "token_endpoint_auth_methods_supported": [
        "client_secret_post",
        "private_key_jwt",
        "client_secret_basic"
    ],
    "require_pushed_authorization_requests": false,
    "claims_parameter_supported": false,
    "request_parameter_supported": false,
    "request_uri_parameter_supported": false,
    "tls_client_certificate_bound_access_tokens": false,
    "authorization_response_iss_parameter_supported": true
}

7. 创建Token控制器

using Microsoft.AspNetCore.Authentication;
using Microsoft.AspNetCore;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using OpenIddict.Abstractions;
using OpenIddict.Server.AspNetCore;
using System.Security.Claims;

namespace Rail.AuthServer.Controllers
{
    [ApiController]
    [Route("connect")]
    public class TokenController : ControllerBase
    {
        private readonly IOpenIddictApplicationManager _applicationManager;

        public TokenController(IOpenIddictApplicationManager applicationManager)
        {
            _applicationManager = applicationManager;
        }

        [HttpPost("token")]
        public async Task<IActionResult> Exchange()
        {
            var request = HttpContext.GetOpenIddictServerRequest();
            if (request == null)
            {
                return BadRequest("Invalid OpenID Connect request.");
            }

            if (request.IsPasswordGrantType())
            {
                return await HandlePasswordGrantType(request);
            }
            else if (request.IsClientCredentialsGrantType())
            {
                return await HandleClientCredentialsGrantType(request);
            }
            else if (request.IsRefreshTokenGrantType())
            {
                return await HandleRefreshTokenGrantType(request);
            }

            return BadRequest("The specified grant type is not supported.");
        }

        private async Task<IActionResult> HandlePasswordGrantType(OpenIddictRequest request)
        {
            // 这里实现您的用户验证逻辑
            // 注意：这不使用ASP.NET Core Identity

            var username = request.Username;
            var password = request.Password;

            // 示例：验证用户凭据
            if (username == "admin" && password == "password")
            {
                var identity = new ClaimsIdentity(
                    OpenIddictServerAspNetCoreDefaults.AuthenticationScheme,
                    OpenIddictConstants.Claims.Name,
                    OpenIddictConstants.Claims.Role);

                // 添加声明
                identity.AddClaim(OpenIddictConstants.Claims.Subject, username);
                identity.AddClaim(OpenIddictConstants.Claims.Name, username);
                identity.AddClaim(ClaimTypes.Role, "Administrator");

                var principal = new ClaimsPrincipal(identity);
                principal.SetScopes(new[]
                {
                    OpenIddictConstants.Scopes.OpenId,
                    OpenIddictConstants.Scopes.Email,
                    OpenIddictConstants.Scopes.Profile,
                    OpenIddictConstants.Scopes.Roles
                });

                return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
            }

            return BadRequest("Invalid username or password.");
        }

        private async Task<IActionResult> HandleClientCredentialsGrantType(OpenIddictRequest request)
        {
            // 验证客户端凭据
            var application = await _applicationManager.FindByClientIdAsync(request.ClientId);
            if (application == null)
            {
                return BadRequest("The specified client identifier is invalid.");
            }

            var identity = new ClaimsIdentity(
                OpenIddictServerAspNetCoreDefaults.AuthenticationScheme,
                OpenIddictConstants.Claims.Name,
                OpenIddictConstants.Claims.Role);

            identity.AddClaim(OpenIddictConstants.Claims.Subject, request.ClientId);
            identity.AddClaim(OpenIddictConstants.Claims.Name, await _applicationManager.GetDisplayNameAsync(application));

            var principal = new ClaimsPrincipal(identity);
            principal.SetScopes(request.GetScopes());

            return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
        }

        private async Task<IActionResult> HandleRefreshTokenGrantType(OpenIddictRequest request)
        {
            // 获取当前用户信息（从认证信息中）
            var result = await HttpContext.AuthenticateAsync(OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
            if (!result.Succeeded)
            {
                return BadRequest("Invalid refresh token.");
            }

            var identity = new ClaimsIdentity(result.Principal.Claims,
                OpenIddictServerAspNetCoreDefaults.AuthenticationScheme,
                OpenIddictConstants.Claims.Name,
                OpenIddictConstants.Claims.Role);

            var principal = new ClaimsPrincipal(identity);
            principal.SetScopes(request.GetScopes());

            return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
        }
    }
}

8. 创建受保护的API控制器

using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;

namespace Rail.AuthServer.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    [Authorize]
    public class ProtectedController : ControllerBase
    {
        [HttpGet]
        public IActionResult Get()
        {
            return Ok(new
            {
                Message = "This is a protected resource!",
                User = User.Identity.Name,
                Claims = User.Claims.Select(c => new { c.Type, c.Value })
            });
        }
    }
}

9. 测试

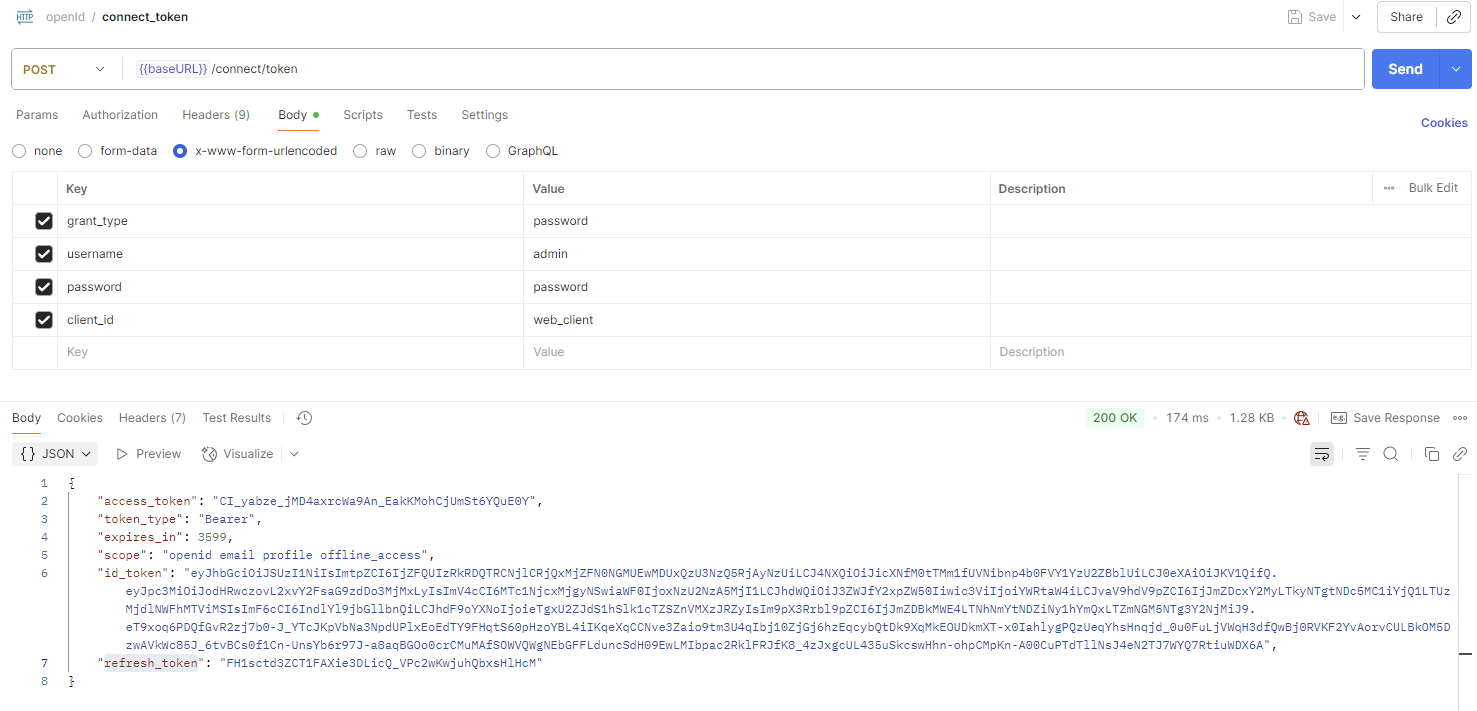

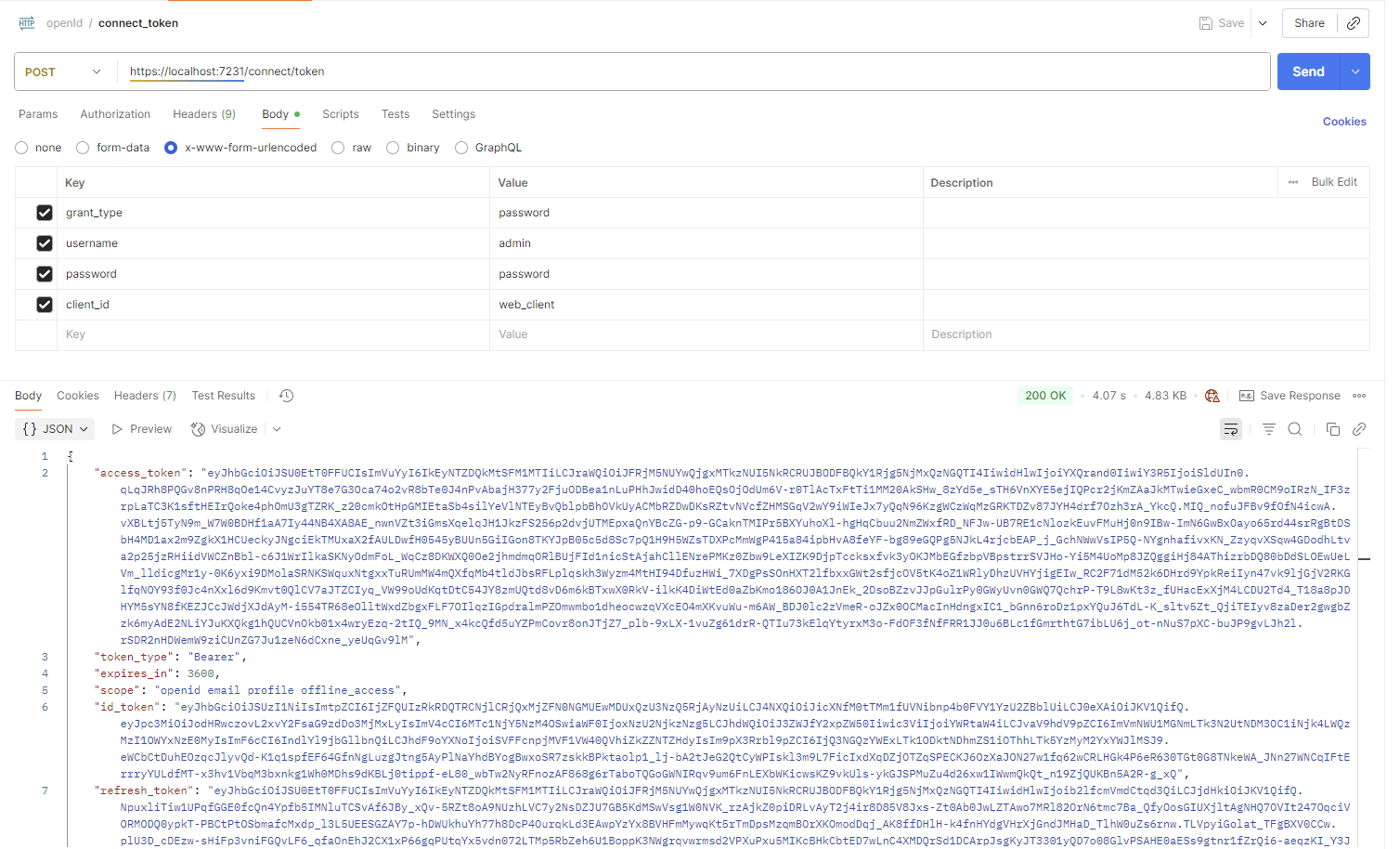

测试1

https://localhost:7231/connect/token

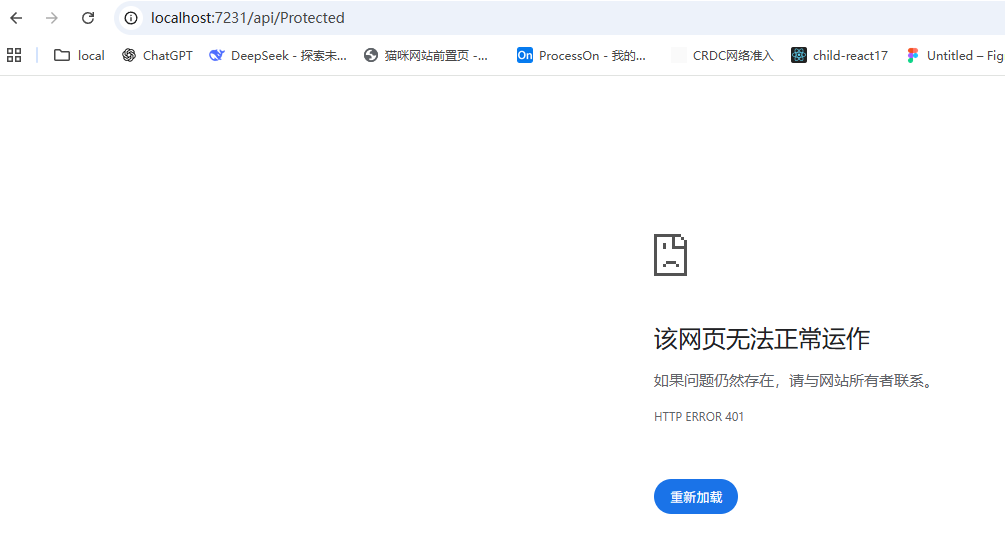

测试2

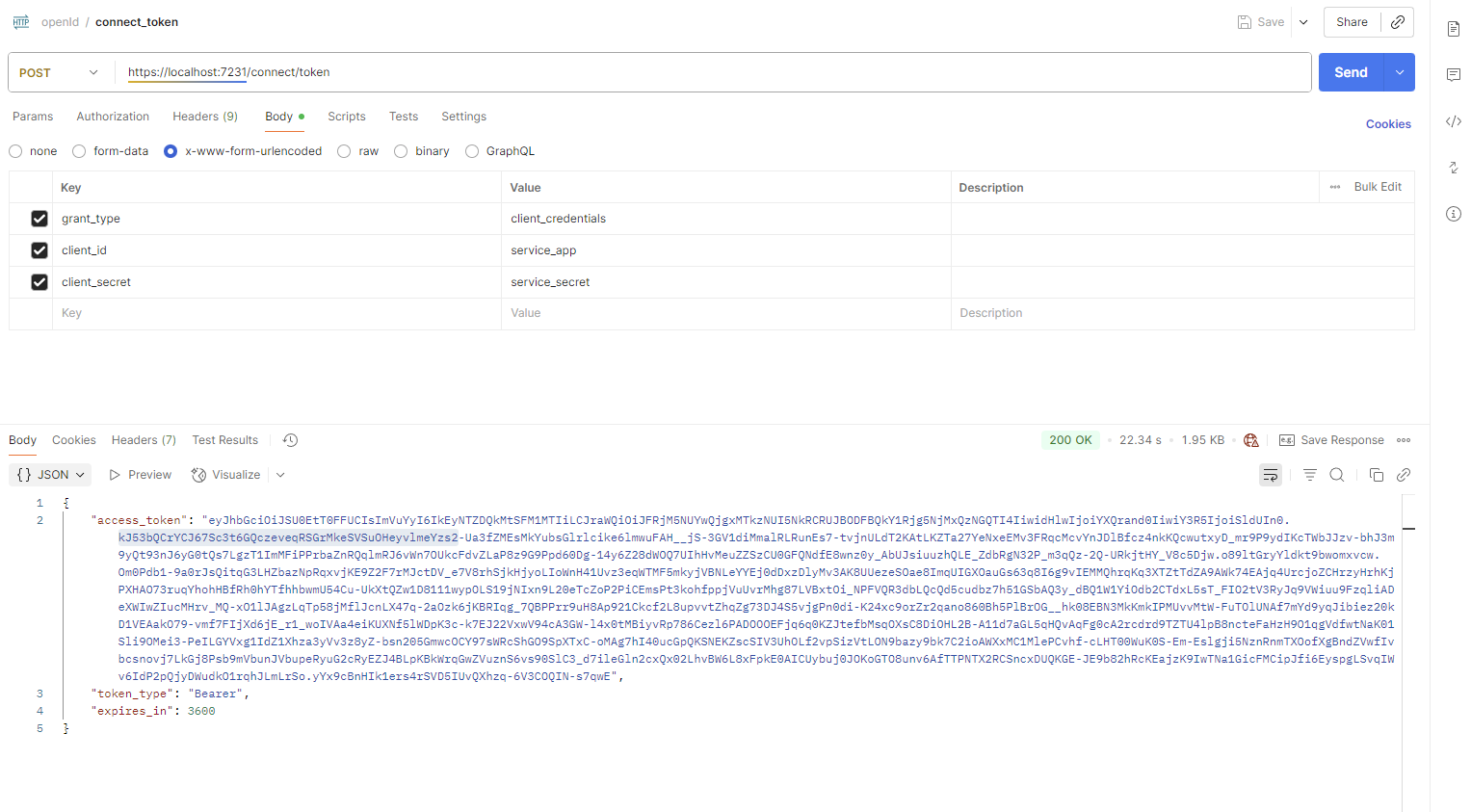

测试3

10. 过期时间设置

1）全局设置　　

// 添加OpenIddict服务
builder.Services.AddOpenIddict()
    .AddCore(options =>
    {
        options.UseEntityFrameworkCore()
               .UseDbContext<DataBaseOpenAuth>();
    })
    .AddServer(options =>
    {
        // 各种token的默认过期时间
        options.SetAccessTokenLifetime(TimeSpan.FromHours(1));          // 访问令牌：1小时
        options.SetRefreshTokenLifetime(TimeSpan.FromDays(30));         // 刷新令牌：30天
        options.SetAuthorizationCodeLifetime(TimeSpan.FromMinutes(10)); // 授权码：10分钟
        options.SetIdentityTokenLifetime(TimeSpan.FromHours(1));        // 身份令牌：1小时
        options.SetUserCodeLifetime(TimeSpan.FromMinutes(5));           // 用户码：5分钟
        options.SetDeviceCodeLifetime(TimeSpan.FromMinutes(15));        // 设备码：15分钟

        // 刷新令牌设置 ,滚动刷新令牌配置 - OpenIddict 7 方式
        options.SetRefreshTokenReuseLeeway(TimeSpan.Zero); // 设置为0表示禁用重用
    })

2）为特定客户端设置

    // Client Credentials 客户端
    if (await manager.FindByClientIdAsync("service_app") is null)
    {
        await manager.CreateAsync(new OpenIddictApplicationDescriptor
        {
            ClientId = "service_app",
            ClientSecret = "service_secret",
            DisplayName = "Service Application",
            Permissions = { Permissions.Endpoints.Token, Permissions.GrantTypes.ClientCredentials },
            Settings =
            {
                // 为特定客户端设置不同的过期时间
                [OpenIddictConstants.Settings.TokenLifetimes.AccessToken] = "01:00:00", // 1小时
                [OpenIddictConstants.Settings.TokenLifetimes.RefreshToken] = "30.00:00:00" // 30天
            }
        });
    }

3）动态设置

　　在TokenController中动态设置过期时间

        private async Task<IActionResult> HandlePasswordGrantType(OpenIddictRequest request)
        {
            var username = request.Username;
            var password = request.Password;

            // 自定义用户验证逻辑
            if (await ValidateUserCredentialsAsync(username, password))
            {
                var identity = new ClaimsIdentity(
                    authenticationType: TokenValidationParameters.DefaultAuthenticationType,
                    nameType: Claims.Name,
                    roleType: Claims.Role);

                // 添加声明
                identity.AddClaim(Claims.Subject, username);
                identity.AddClaim(Claims.Name, username);
                identity.AddClaim(Claims.Email, $"{username}@example.com");
                identity.AddClaim(Claims.Role, "User");

                // 设置主体和范围
                var principal = new ClaimsPrincipal(identity);
                principal.SetScopes(
                    Scopes.OpenId,
                    Scopes.Email,
                    Scopes.Profile,
                    Scopes.OfflineAccess); // 包含刷新令牌

                principal.SetResources("resource_server");

                //return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);

                // OpenIddict 7 中设置自定义属性的新方式
                var properties = new AuthenticationProperties(new Dictionary<string, string?>
                {
                    // 使用新的常量名称
                    ["oi_atm"] = TimeSpan.FromHours(2).TotalSeconds.ToString(),  // Access Token Lifetime
                    ["oi_rtm"] = TimeSpan.FromDays(14).TotalSeconds.ToString(),  // Refresh Token Lifetime
                    ["oi_itim"] = TimeSpan.FromHours(2).TotalSeconds.ToString()  // Identity Token Lifetime
                });
                return SignIn(principal, properties, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
            }

　　期于角色设置

        private async Task<IActionResult> HandlePasswordGrantType(OpenIddictRequest request)
        {
            var username = request.Username;
            var password = request.Password;

            // 自定义用户验证逻辑
            if (await ValidateUserCredentialsAsync(username, password))
            {
                var identity = new ClaimsIdentity(
                    authenticationType: TokenValidationParameters.DefaultAuthenticationType,
                    nameType: Claims.Name,
                    roleType: Claims.Role);

                // 添加声明
                identity.AddClaim(Claims.Subject, username);
                identity.AddClaim(Claims.Name, username);
                identity.AddClaim(Claims.Email, $"{username}@example.com");
                identity.AddClaim(Claims.Role, "User");

                // 设置主体和范围
                var principal = new ClaimsPrincipal(identity);
                principal.SetScopes(
                    Scopes.OpenId,
                    Scopes.Email,
                    Scopes.Profile,
                    Scopes.OfflineAccess); // 包含刷新令牌

                principal.SetResources("resource_server");

                //return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);

                //// OpenIddict 7 中设置自定义属性的新方式

                TimeSpan accessTokenLifetime;
                TimeSpan refreshTokenLifetime;

                // 根据用户角色设置不同的过期时间
                if (principal.IsInRole("Administrator"))
                {
                    accessTokenLifetime = TimeSpan.FromHours(4);    // 管理员4小时
                    refreshTokenLifetime = TimeSpan.FromDays(60);   // 管理员60天
                }
                else
                {
                    accessTokenLifetime = TimeSpan.FromHours(1);    // 普通用户1小时
                    refreshTokenLifetime = TimeSpan.FromDays(7);    // 普通用户7天
                }

                var properties = new AuthenticationProperties(new Dictionary<string, string?>
                {
                    // 使用新的常量名称
                    ["oi_atm"] = accessTokenLifetime.TotalSeconds.ToString(),  // Access Token Lifetime
                    ["oi_rtm"] = refreshTokenLifetime.TotalSeconds.ToString(),  // Refresh Token Lifetime
                });
                return SignIn(principal, properties, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
            }

            return BadRequest(new OpenIddictResponse
            {
                Error = Errors.InvalidGrant,
                ErrorDescription = "Invalid username or password."
            });
        }

10. 使令牌失效

在Program.cs里面使用 Reference Token 模式

//使用 Reference Token
options.UseReferenceAccessTokens();
options.UseReferenceRefreshTokens();

创建退出登录接口、管理员使用户退出接口

using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using OpenIddict.Abstractions;
using OpenIddict.Validation.AspNetCore;
using static OpenIddict.Abstractions.OpenIddictConstants;

namespace Rail.AuthServer.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    [Authorize]
    public class LogoutController : ControllerBase
    {
        private readonly IOpenIddictTokenManager _tokenManager;

        public LogoutController(IOpenIddictTokenManager tokenManager)
        {
            _tokenManager = tokenManager;
        }

        [HttpPost("logout")]
        public async Task<IActionResult> Logout()
        {
            // 这里的 sub 是用户的唯一标识（UserId）
            var userId = User.FindFirst(OpenIddictConstants.Claims.Subject)?.Value;
            if (string.IsNullOrEmpty(userId))
            {
                return BadRequest("User id not found in token.");
            }

            await foreach (var token in _tokenManager.FindBySubjectAsync(userId))
            {
                await _tokenManager.TryRevokeAsync(token);
            }

            return Ok(new { message = "User logged out, all tokens revoked." });
        }

        [HttpPost("revoke-user-tokens")]
        public async Task<IActionResult> RevokeUserTokens([FromBody] string userId)
        {
            await foreach (var token in _tokenManager.FindBySubjectAsync(userId))
            {
                await _tokenManager.TryRevokeAsync(token);
            }

            return Ok(new { message = $"All tokens for user {userId} revoked." });
        }


        [HttpPost("revoke-client")]
        public async Task<IActionResult> RevokeClientTokens([FromBody] string clientId, [FromServices] IOpenIddictApplicationManager applicationManager, [FromServices] IOpenIddictTokenManager tokenManager)
        {
            // 先找到 Application
            var application = await applicationManager.FindByClientIdAsync(clientId);
            if (application == null)
            {
                return NotFound(new { message = $"Client {clientId} not found." });
            }

            // 再查这个 Application 下面的所有 Token
            await foreach (var token in tokenManager.FindByApplicationIdAsync(await applicationManager.GetIdAsync(application)))
            {
                await tokenManager.TryRevokeAsync(token);
            }

            return Ok(new { message = $"All tokens for client {clientId} revoked." });
        }
    }
}

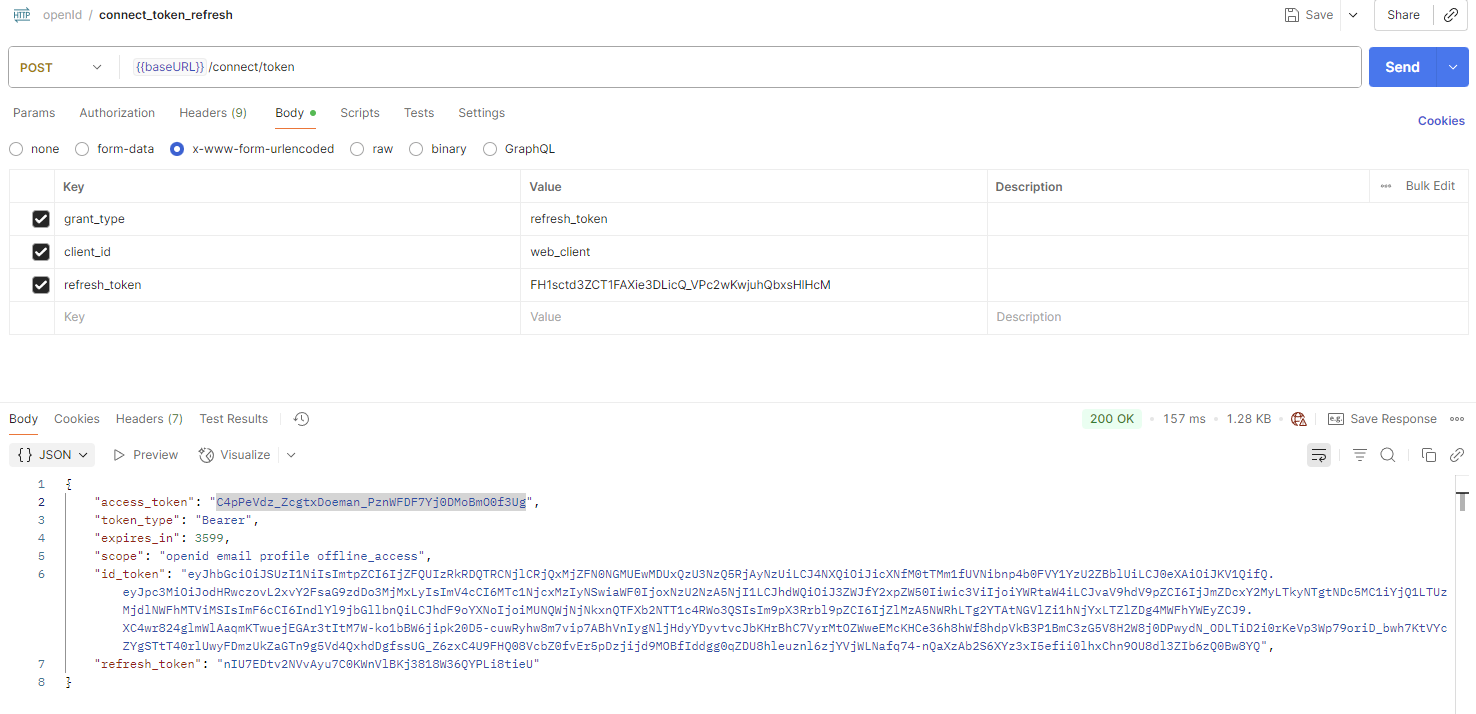

11. 使刷新令牌

　　通过用户登录获取到刷新令牌

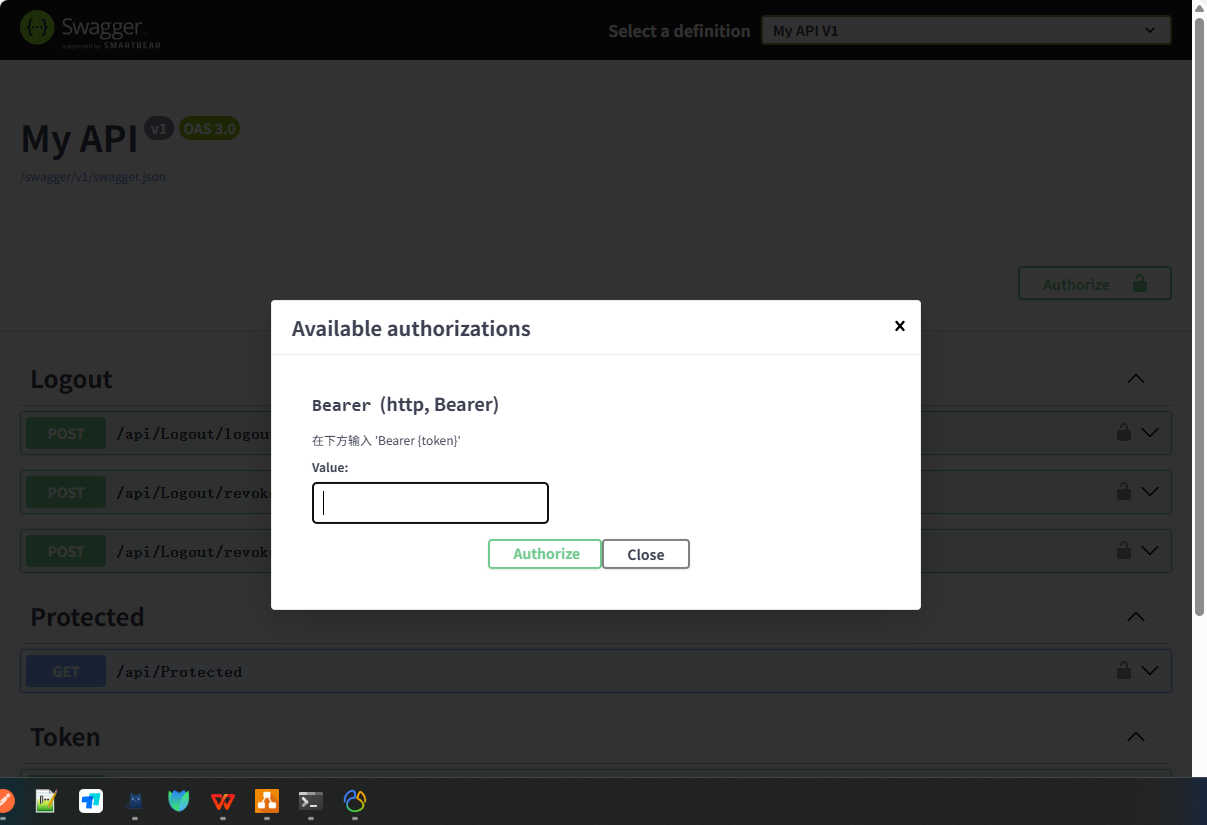

12. 集成到 Swagger

在 Program.cs 里面中配置

builder.Services.AddSwaggerGen(options =>
{
    options.SwaggerDoc("v1", new() { Title = "My API", Version = "v1" });

    // 定义 Bearer 安全方案
    options.AddSecurityDefinition("Bearer", new Microsoft.OpenApi.Models.OpenApiSecurityScheme
    {
        Name = "Authorization",
        Type = Microsoft.OpenApi.Models.SecuritySchemeType.Http,
        Scheme = "bearer",
        BearerFormat = "JWT",
        In = Microsoft.OpenApi.Models.ParameterLocation.Header,
        Description = "在下方输入 'Bearer {token}'"
    });

    // 在每个请求中应用安全要求
    options.AddSecurityRequirement(new Microsoft.OpenApi.Models.OpenApiSecurityRequirement
    {
        {
            new Microsoft.OpenApi.Models.OpenApiSecurityScheme
            {
                Reference = new Microsoft.OpenApi.Models.OpenApiReference
                {
                    Type = Microsoft.OpenApi.Models.ReferenceType.SecurityScheme,
                    Id = "Bearer"
                }
            },
            new string[] {}
        }
    });
});

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI(options =>
    {
        options.SwaggerEndpoint("/swagger/v1/swagger.json", "My API V1");
        options.DocumentTitle = "My API Docs";
    });
}

13. 获取用户信息

增加控制器 UserInfoController

[ApiController]
[Route("connect")]
public class UserInfoController : ControllerBase
{
    [HttpGet("userinfo")]
    [HttpPost("userinfo")]
    [Authorize(AuthenticationSchemes = OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme)]
    public async Task<IActionResult> UserInfo()
    {
        var claims = new Dictionary<string, object>
        {
            [Claims.Subject] = User.FindFirst(Claims.Subject)?.Value ?? "",
            [Claims.Name] = User.FindFirst(Claims.Name)?.Value ?? "",
            [Claims.Email] = User.FindFirst(Claims.Email)?.Value ?? "",
            [Claims.Role] = User.FindFirst(Claims.Role)?.Value ?? "User"
        };

        return Ok(claims);
    }
}

14. 单独客户端项目使用权限服务

1）鉴权服务项目

并不需要 /connect/authorize 这个控制器

需要设置 resource_server ，在/connect/token接口里面，每个登录校验里面设置

principal.SetResources("resource_server");

2）API 项目

创建 .net8 客户端项目 Rail.TmClient

增加 nuget 包 OpenIddict.Validation.AspNetCore ，版本：7.0.0

增加 nuget 包 OpenIddict.Validation.SystemNetHttp ，版本：7.0.0

调整Program.cs

using OpenIddict.Validation.AspNetCore;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.

builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

builder.Services.AddOpenIddict()
    .AddValidation(options =>
    {
        options.SetIssuer("https://localhost:7231/"); // 授权服务器的地址
        options.AddAudiences("resource_server"); // 资源服务器的标识

        // Reference Token → 必须用 introspection
        options.UseIntrospection()
               .SetClientId("service_app")   // 你在 AuthServer 注册的 client_id
               .SetClientSecret("service_secret");     // 你在 AuthServer 注册的 client_secret

        options.UseSystemNetHttp(); // 使用 System.Net.Http 进行 HTTP 请求
        options.UseAspNetCore(); // 与 ASP.NET Core 集成
    });

// 添加认证服务
builder.Services.AddAuthentication(options =>
{
    options.DefaultAuthenticateScheme = OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme;
    options.DefaultChallengeScheme = OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme;
});

builder.Services.AddAuthorization();

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseHttpsRedirection();
app.UseAuthentication(); // 注意顺序
app.UseAuthorization();
app.MapControllers();

app.Run();

增加控制器

[ApiController]
[Route("api/[controller]")]
public class OrdersController : ControllerBase
{
    // 需要 token 才能访问
    [HttpGet]
    [Authorize]
    public IActionResult GetOrders()
    {
        return Ok(new[] { "Order1", "Order2" });
    }

    // 允许匿名访问
    [HttpGet("public")]
    [AllowAnonymous]
    public IActionResult PublicInfo()
    {
        return Ok("任何人都能访问，不需要 Token");
    }
}

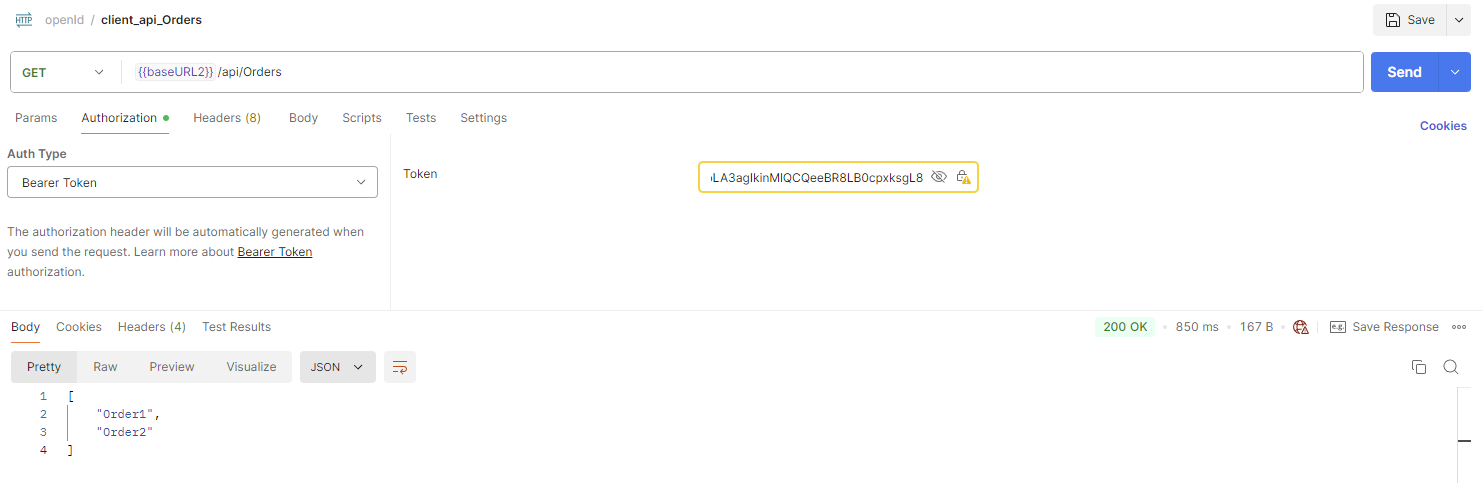

调用结果

15. scopes 的使用

　在 授权服务器配置里，需要注册可用 Scope

// 添加OpenIddict服务
builder.Services.AddOpenIddict()
    .AddServer(options =>
    {
        // 注册范围
        options.RegisterScopes(
            Scopes.Email,
            Scopes.Profile,
            Scopes.Roles,
            Scopes.OfflineAccess,// 包含刷新令牌
            "api",
            "client_tm_server.read",
            "client_tm_server.write");
    })

Scope 和 Resource/Audience 在 OpenIddict 中对齐

在 /connect/token 获取token校验接口里面设置，这里以客户端凭据为例，还需要设置密码凭据，refresh_token 凭据

private async Task<IActionResult> HandleClientCredentialsGrantType(OpenIddictRequest request)
{
    var application = await _applicationManager.FindByClientIdAsync(request.ClientId);
    if (application is null)
    {
        return BadRequest(new OpenIddictResponse
        {
            Error = Errors.InvalidClient,
            ErrorDescription = "The specified client identifier is invalid."
        });
    }

    var identity = new ClaimsIdentity(
        authenticationType: TokenValidationParameters.DefaultAuthenticationType,
        nameType: Claims.Name,
        roleType: Claims.Role);

    identity.AddClaim(Claims.Subject, request.ClientId);
    identity.AddClaim(Claims.Name, await _applicationManager.GetDisplayNameAsync(application));

    var principal = new ClaimsPrincipal(identity);
    principal.SetScopes(request.GetScopes());
    //principal.SetResources("client_tm_server");
    // 根据 Scope 设置 Resource / Audience
    var resources = new List<string>();
    if (principal.HasScope("client_tm_server.read") || principal.HasScope("client_tm_server.write"))
    {
        resources.Add("client_tm_server");
    }

    return SignIn(principal, OpenIddictServerAspNetCoreDefaults.AuthenticationScheme);
}

[Authorize]
[HttpGet("values")]
public IActionResult GetValues()
{
    // 获取 token 中的 scope
    var scopes = User.GetScopes(); // 扩展方法
    if (!scopes.Contains("rail_tmclient_api.read"))
    {
        return Forbid();
    }

    return Ok(new[] { "value1", "value2" });
}

方法2

可以在 Program.cs 或 Startup.cs 注册策略：

builder.Services.AddAuthorization(options =>
{
    options.AddPolicy("ReadRailTmclient", policy =>
    {
        policy.RequireAuthenticatedUser();
        policy.RequireClaim("scope", "rail_tmclient_api.read");
    });

    options.AddPolicy("WriteRailTmclient", policy =>
    {
        policy.RequireAuthenticatedUser();
        policy.RequireClaim("scope", "rail_tmclient_api.write");
    });
});

然后在 Controller 或 Action 上使用策略：

待优化

3. 反代

end

posted @ 2025-08-28 14:00 无心々菜阅读(24) 评论(0) 收藏举报

刷新页面返回顶部

无心々菜

NETCORE - OpenId 鉴权模式

NETCORE - OpenId 鉴权模式

一、 修改数据库

二、 创建服务端

1. 项目搭建

2. 配置文件

3. 生成数据库上下文文件

4. 注入OpenId

5. 运行

6. 发现文档

7. 创建Token控制器

8. 创建受保护的API控制器

9. 测试

10. 过期时间设置

1） 全局设置

2）为特定客户端设置

3）动态设置

10. 使令牌失效

11. 使刷新令牌

12. 集成到 Swagger

13. 获取用户信息

14. 单独客户端项目 使用权限服务

1）鉴权服务项目

2）API 项目

15. scopes 的使用

公告

一、修改数据库

二、创建服务端

2. 配置文件　

1）全局设置　　

14. 单独客户端项目使用权限服务
