V4L2(二)虚拟摄像头驱动vivi深入分析

转载于: http://blog.csdn.net/lizuobin2/article/details/53006927



本文基于:linux3.5

  前面一篇文章中,简单分析了 V4L2 大框架,本文借助内核中的虚拟摄像头驱动 vivi 来分析一个完整的摄像头驱动程序。vivi 相对于后面要分析的 usb 摄像头驱动程序,它没有真正的硬件相关层的操作,也就是说抛开了复杂的 usb 层的相关知识,便于理解 V4L2 驱动框架,侧重于驱动和应用的交互。

  前面我们提到,V4L2 的核心是 v4l2-dev.c 它向上提供统一的文件操作接口 v4l2_fops ,向下提供 video_device 注册接口 register_video_device ,作为一个具体的驱动,需要做的工作就是分配、设置、注册一个 video_device.框架很简单,复杂的是视频设备相关众多的 ioctl。

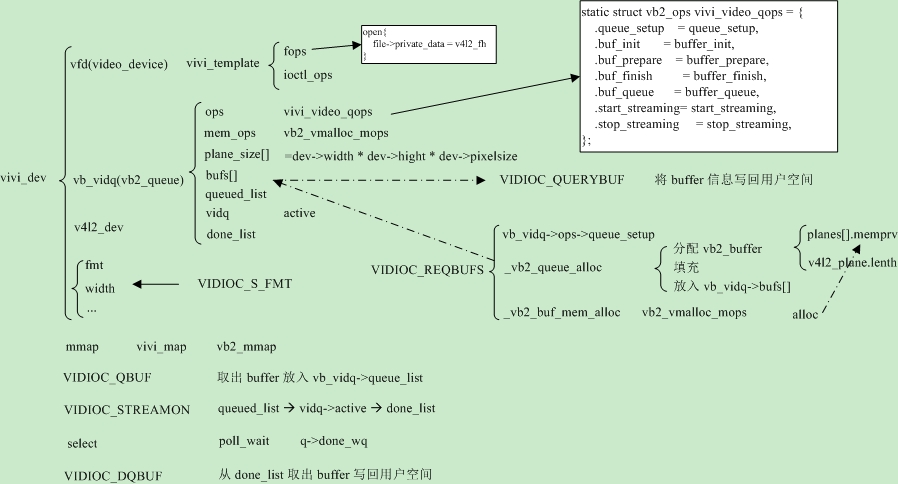

一、vivi 框架分析

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __init vivi_init(void)
  2. {
  3.     ret = vivi_create_instance(i);
  4.     ...
  5.     return ret;
  6. }
  7. module_init(vivi_init);

  vivi 分配了一个 video_device 指针,没有去设置而是直接让它指向了一个现成的 video_device 结构 vivi_template ,那么全部的工作都将围绕 vivi_template 展开。

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __init vivi_create_instance(int inst)
  2. {
  3.     struct vivi_dev *dev;
  4.     struct video_device *vfd;
  5.     struct v4l2_ctrl_handler *hdl;
  6.     struct vb2_queue *q;
  7.
  8.     // 分配一个 vivi_dev 结构体
  9.     dev = kzalloc(sizeof(*dev), GFP_KERNEL);
  10.
  11.     // v4l2_dev 初始化,并没有什么作用
  12.     ret = v4l2_device_register(NULL, &dev->v4l2_dev);
  13.
  14.     // 设置 dev 的一些参数,比如图像格式、大小
  15.     dev->fmt = &formats[0];
  16.     dev->width = 640;
  17.     dev->height = 480;
  18.     dev->pixelsize = dev->fmt->depth / 8;
  19.     ...
  20.
  21.     // vivi_dev->vb_vidq(vb2_queue) 初始化
  22.     q = &dev->vb_vidq;
  23.     memset(q, 0, sizeof(dev->vb_vidq));
  24.     q->type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
  25.     q->io_modes = VB2_MMAP | VB2_USERPTR | VB2_DMABUF | VB2_READ;
  26.     q->drv_priv = dev;
  27.     q->buf_struct_size = sizeof(struct vivi_buffer);
  28.
  29.     // vivi_dev->vb_vidq(vb2_queue)->ops
  30.     q->ops     = &vivi_video_qops;
  31.
  32.     // vivi_dev->vb_vidq(vb2_queue)->mem_ops
  33.     q->mem_ops = &vb2_vmalloc_memops;
  34.
  35.     // 初始化一些锁之类的东西
  36.     vb2_queue_init(q);
  37.
  38.     /* init video dma queues */
  39.     INIT_LIST_HEAD(&dev->vidq.active);
  40.     init_waitqueue_head(&dev->vidq.wq);
  41.
  42.     // 分配一个 video_device ,这才是重点
  43.     vfd = video_device_alloc();
  44.
  45.     *vfd = vivi_template;
  46.     vfd->debug = debug;
  47.     vfd->v4l2_dev = &dev->v4l2_dev;
  48.     set_bit(V4L2_FL_USE_FH_PRIO, &vfd->flags);
  49.
  50.     vfd->lock = &dev->mutex;
  51.
  52.     // 注册 video_device !!!
  53.     ret = video_register_device(vfd, VFL_TYPE_GRABBER, video_nr);
  54.     // 把 vivi_dev 放入 video_device->dev->p->driver_data ,这个后边经常用到
  55.     video_set_drvdata(vfd, dev);
  56.
  57.     /* Now that everything is fine, let's add it to device list */
  58.     list_add_tail(&dev->vivi_devlist, &vivi_devlist);
  59.
  60.     if (video_nr != -1)
  61.         video_nr++;
  62.     // vivi_dev->vfd(video_device) =  vfd
  63.     dev->vfd = vfd;
  64.     v4l2_info(&dev->v4l2_dev, "V4L2 device registered as %s\n",
  65.           video_device_node_name(vfd));
  66.     return 0;
  67. }

  用户空间调用的是 v4l2_fops ,但是最终会调用到 vivi_fops ,vivi_fops 中的 ioctl 调用 video_ioctl2

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static struct video_device vivi_template = {
  2.     .name       = "vivi",
  3.     .fops           = &vivi_fops,
  4.     .ioctl_ops  = &vivi_ioctl_ops,
  5.     .minor      = -1,
  6.     .release    = video_device_release,
  7.
  8.     .tvnorms              = V4L2_STD_525_60,
  9.     .current_norm         = V4L2_STD_NTSC_M,
  10. };

  video_register_device 过程就不详细分析了,前面的文章中分析过,大概就是向核心层注册 video_device 结构体,核心层注册字符设备并提供一个统一的 fops ,当用户空间 read write ioctl 等,最终还是会跳转到 video_device->fops ,还有一点就是核心层会把我们注册进来的 video_device 结构放入一个全局的 video_device数组。

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static const struct v4l2_file_operations vivi_fops = {
  2.     .owner      = THIS_MODULE,
  3.     .open           = v4l2_fh_open,
  4.     .release        = vivi_close,
  5.     .read           = vivi_read,
  6.     .poll       = vivi_poll,
  7.     .unlocked_ioctl = video_ioctl2, /* V4L2 ioctl handler */
  8.     .mmap           = vivi_mmap,
  9. };

  这里,先看一下 v4l2_fh_open 函数

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int v4l2_fh_open(struct file *filp)
  2. {
  3.   // 前面注册时,我们将 video_device 结构体放入了全局数组 video_device ,现在通过     video_devdata 函数取出来,后面经常用到这种做法
  4.     struct video_device *vdev = video_devdata(filp);
  5.     // 分配一个 v4l2_fh 结构,放入file->private_data 中
  6.     struct v4l2_fh *fh = kzalloc(sizeof(*fh), GFP_KERNEL);
  7.     filp->private_data = fh;
  8.     if (fh == NULL)
  9.         return -ENOMEM;
  10.     v4l2_fh_init(fh, vdev);
  11.     v4l2_fh_add(fh);
  12.     return 0;
  13. }

  1、我们随时可以通过 video_devdata 取出我们注册的 video_device 结构进行操作

  2、我们随时可以通过 file->private_data 取出 v4l2_fh 结构,虽然现在还不知道它有啥用

  下面来分析 ioctl ...首先来看一下调用过程

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. long video_ioctl2(struct file *file,
  2.            unsigned int cmd, unsigned long arg)
  3. {
  4.     return video_usercopy(file, cmd, arg, __video_do_ioctl);
  5. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static long __video_do_ioctl(struct file *file,
  2.         unsigned int cmd, void *arg)
  3. {
  4.     struct video_device *vfd = video_devdata(file);
  5.     const struct v4l2_ioctl_ops *ops = vfd->ioctl_ops;
  6.     void *fh = file->private_data;
  7.     struct v4l2_fh *vfh = NULL;
  8.     int use_fh_prio = 0;
  9.     long ret = -ENOTTY;
  10.
  11.     if (ops == NULL) {
  12.         printk(KERN_WARNING "videodev: \"%s\" has no ioctl_ops.\n",
  13.                 vfd->name);
  14.         return ret;
  15.     }
  16.
  17.     if (test_bit(V4L2_FL_USES_V4L2_FH, &vfd->flags)) {
  18.         vfh = file->private_data;
  19.         use_fh_prio = test_bit(V4L2_FL_USE_FH_PRIO, &vfd->flags);
  20.     }
  21.
  22.     if (v4l2_is_known_ioctl(cmd)) {
  23.         struct v4l2_ioctl_info *info = &v4l2_ioctls[_IOC_NR(cmd)];
  24.
  25.             if (!test_bit(_IOC_NR(cmd), vfd->valid_ioctls) &&
  26.             !((info->flags & INFO_FL_CTRL) && vfh && vfh->ctrl_handler))
  27.             return -ENOTTY;
  28.
  29.         if (use_fh_prio && (info->flags & INFO_FL_PRIO)) {
  30.             ret = v4l2_prio_check(vfd->prio, vfh->prio);
  31.             if (ret)
  32.                 return ret;
  33.         }
  34.     }
  35.
  36.     if ((vfd->debug & V4L2_DEBUG_IOCTL) &&
  37.                 !(vfd->debug & V4L2_DEBUG_IOCTL_ARG)) {
  38.         v4l_print_ioctl(vfd->name, cmd);
  39.         printk(KERN_CONT "\n");
  40.     }
  41.
  42.     switch (cmd) {
  43.
  44.     /* --- capabilities ------------------------------------------ */
  45.     case VIDIOC_QUERYCAP:
  46.     {
  47.         struct v4l2_capability *cap = (struct v4l2_capability *)arg;
  48.
  49.         cap->version = LINUX_VERSION_CODE;
  50.         ret = ops->vidioc_querycap(file, fh, cap);
  51.         if (!ret)
  52.             dbgarg(cmd, "driver=%s, card=%s, bus=%s, "
  53.                     "version=0x%08x, "
  54.                     "capabilities=0x%08x, "
  55.                     "device_caps=0x%08x\n",
  56.                     cap->driver, cap->card, cap->bus_info,
  57.                     cap->version,
  58.                     cap->capabilities,
  59.                     cap->device_caps);
  60.         break;
  61.     }

  vivi 驱动就复杂在这些 ioctl 上,下面按照应用层与驱动的交互顺序来具体的分析这些 ioctl 。

二、ioctl 深入分析

  应用空间的一个视频 app 与驱动的交互流程大致如下图所示:

  下面就根据流程,分析每一个 ioctl 在 vivi 中的具体实现。把以上的过程吃透,自己写一个虚拟摄像头程序应该就不成问题了。

 2.1 VIDIOC_QUERYCAP 查询设备能力

应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. struct v4l2_capability {
  2.     __u8    driver[16]; /* i.e. "bttv" */
  3.     __u8    card[32];   /* i.e. "Hauppauge WinTV" */
  4.     __u8    bus_info[32];   /* "PCI:" + pci_name(pci_dev) */
  5.     __u32   version;        <span style="white-space:pre">    </span>/* should use KERNEL_VERSION() */
  6.     __u32   capabilities;   /* Device capabilities */
  7.     __u32   reserved[4];
  8. };
  9.
  10. struct v4l2_capability cap;
  11. ret = ioctl(fd,VIDIOC_QUERYCAP,&cap);
  12. if (ret < 0) {
  13.     LOG("VIDIOC_QUERYCAP failed (%d)\n", ret);
  14.     return ret;
  15. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. void *fh = file->private_data;
  2. ops->vidioc_querycap(file, fh, cap);
  3. static int vidioc_querycap(struct file *file, void  *priv, struct v4l2_capability *cap)
  4. {
  5.     struct vivi_fh  *fh  = priv;
  6.     struct vivi_dev *dev = fh->dev;
  7.
  8.
  9.     // 这里只是将一些信息写回用户空间而已,非常简单
  10.     strcpy(cap->driver, "vivi");
  11.     strcpy(cap->card, "vivi");
  12.     strlcpy(cap->bus_info, dev->v4l2_dev.name, sizeof(cap->bus_info));
  13.     cap->version =     VIVI_VERSION; cap->capabilities =V4L2_CAP_VIDEO_CAPTURE |V4L2_CAP_STREAMING     | V4L2_CAP_READWRITE;return 0;}
  14. }

  一般我们只关心 capabilities 成员,比如V4L2_CAP_VIDEO_CAPTURE 具有视频捕获能力,其它定义如下:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. /* Values for 'capabilities' field */
  2. #define V4L2_CAP_VIDEO_CAPTURE      0x00000001  /* Is a video capture device */
  3. #define V4L2_CAP_VIDEO_OUTPUT       0x00000002  /* Is a video output device */
  4. #define V4L2_CAP_VIDEO_OVERLAY      0x00000004  /* Can do video overlay */
  5. #define V4L2_CAP_VBI_CAPTURE        0x00000010  /* Is a raw VBI capture device */
  6. #define V4L2_CAP_VBI_OUTPUT     0x00000020  /* Is a raw VBI output device */
  7. #define V4L2_CAP_SLICED_VBI_CAPTURE 0x00000040  /* Is a sliced VBI capture device */
  8. #define V4L2_CAP_SLICED_VBI_OUTPUT  0x00000080  /* Is a sliced VBI output device */
  9. #define V4L2_CAP_RDS_CAPTURE        0x00000100  /* RDS data capture */
  10. #define V4L2_CAP_VIDEO_OUTPUT_OVERLAY   0x00000200  /* Can do video output overlay */
  11. #define V4L2_CAP_HW_FREQ_SEEK       0x00000400  /* Can do hardware frequency seek  */
  12. #define V4L2_CAP_RDS_OUTPUT     0x00000800  /* Is an RDS encoder */

 2.2 VIDIOC_ENUM_FMT 枚举(查询)设备支持的视频格式

应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. struct v4l2_fmtdesc {
  2.     __u32           index;             /* Format number      */
  3.     enum v4l2_buf_type  type;              /* buffer type        */
  4.     __u32               flags;
  5.     __u8            description[32];   /* Description string */
  6.     __u32           pixelformat;       /* Format fourcc      */
  7.     __u32           reserved[4];
  8. };
  9.
  10. struct v4l2_fmtdesc fmtdesc;
  11. fmtdesc.index=0;
  12. fmtdesc.type=V4L2_BUF_TYPE_VIDEO_CAPTURE;
  13. while(ioctl(fd,VIDIOC_ENUM_FMT,&fmtdesc)!=-1)
  14. {
  15.     printf("SUPPORT\t%d.%s\n",fmtdesc.index+1,fmtdesc.description);
  16.     fmtdesc.index++;
  17. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static struct vivi_fmt formats[] = {
  2.     {
  3.         .name     = "4:2:2, packed, YUYV",
  4.         .fourcc   = V4L2_PIX_FMT_YUYV,
  5.         .depth    = 16,
  6.     },
  7.     ...
  8. }
  9. static int vidioc_enum_fmt_vid_cap(struct file *file, void  *priv,
  10.                     struct v4l2_fmtdesc *f)
  11. {
  12.     struct vivi_fmt *fmt;
  13.
  14.     if (f->index >= ARRAY_SIZE(formats))
  15.         return -EINVAL;
  16.
  17.     fmt = &formats[f->index];
  18.
  19.     strlcpy(f->description, fmt->name, sizeof(f->description));
  20.     f->pixelformat = fmt->fourcc;
  21.     return 0;
  22. }

  一般一个设备支持多种视频格式,比如 vivi 它所支持的格式存放在 formats 数组中,由于应用层并不知道设备支持多少种格式,也不知道某种格式具体存放在哪个数组项中,因此通过index从0开始尝试,对于驱动层来说就是遍历所有的数组项,返回每一个index对应的视频格式,比如 V4L2_PIX_FMT_YUYV .

 2.3 VIDIOC_S_FMT 设置视频格式

应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. struct v4l2_format {
  2.     enum v4l2_buf_type type;
  3.     union {
  4.         struct v4l2_pix_format      pix;     /* V4L2_BUF_TYPE_VIDEO_CAPTURE */
  5.         struct v4l2_window      win;     /* V4L2_BUF_TYPE_VIDEO_OVERLAY */
  6.         struct v4l2_vbi_format      vbi;     /* V4L2_BUF_TYPE_VBI_CAPTURE */
  7.         struct v4l2_sliced_vbi_format   sliced;  /* V4L2_BUF_TYPE_SLICED_VBI_CAPTURE */
  8.         __u8    raw_data[200];                   /* user-defined */
  9.     } fmt;
  10. };
  11. struct v4l2_pix_format {
  12.     __u32               width;
  13.     __u32           height;
  14.     __u32           pixelformat;
  15.     enum v4l2_field     field;
  16.     __u32               bytesperline;   /* for padding, zero if unused */
  17.     __u32               sizeimage;
  18.     enum v4l2_colorspace    colorspace;
  19.     __u32           priv;       /* private data, depends on pixelformat */
  20. };
  21. struct v4l2_format fmt;
  22. memset(&fmt, 0, sizeof(fmt));
  23. fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;//格式类型
  24. fmt.fmt.pix.width //宽度
  25. fmt.fmt.pix.height //高度
  26. fmt.fmt.pix.pixelformat = VIDEO_FORMAT;//这一项必须是前面查询出来的某种格式,对应 vivi formats数组
  27. fmt.fmt.pix.field       = V4L2_FIELD_INTERLACED;//好像是隔行扫描的意思
  28. ret = ioctl(fd, VIDIOC_S_FMT, &fmt);
  29. if (ret < 0) {
  30.     LOG("VIDIOC_S_FMT failed (%d)\n", ret);
  31.     return ret;
  32. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_s_fmt_vid_cap(struct file *file, void *priv,
  2.                     struct v4l2_format *f)
  3. {
  4.     struct vivi_dev *dev = video_drvdata(file);
  5.     struct vb2_queue *q = &dev->vb_vidq;
  6.
  7.     int ret = vidioc_try_fmt_vid_cap(file, priv, f);
  8.     //if (fmt->fourcc == f->fmt.pix.pixelformat)返回formats[k]
  9.     dev->fmt = get_format(f);
  10.     dev->pixelsize   = dev->fmt->depth / 8;
  11.     dev->width       = f->fmt.pix.width;
  12.     dev->height  = f->fmt.pix.height;
  13.     dev->field       = f->fmt.pix.field;
  14.
  15.     return 0;
  16. }
  17. static int vidioc_try_fmt_vid_cap(struct file *file, void *priv,
  18.             struct v4l2_format *f)
  19. {
  20.     struct vivi_dev *dev = video_drvdata(file);
  21.     struct vivi_fmt *fmt;
  22.     enum v4l2_field field;
  23.
  24.     fmt = get_format(f);
  25.
  26.     field = f->fmt.pix.field;
  27.
  28.     if (field == V4L2_FIELD_ANY) {
  29.         field = V4L2_FIELD_INTERLACED;
  30.     }
  31.
  32.     f->fmt.pix.field = field;
  33.     v4l_bound_align_image(&f->fmt.pix.width, 48, MAX_WIDTH, 2,
  34.                   &f->fmt.pix.height, 32, MAX_HEIGHT, 0, 0);
  35.     f->fmt.pix.bytesperline =
  36.         (f->fmt.pix.width * fmt->depth) >> 3;
  37.     f->fmt.pix.sizeimage =
  38.         f->fmt.pix.height * f->fmt.pix.bytesperline;
  39.     if (fmt->fourcc == V4L2_PIX_FMT_YUYV ||
  40.         fmt->fourcc == V4L2_PIX_FMT_UYVY)
  41.         f->fmt.pix.colorspace = V4L2_COLORSPACE_SMPTE170M;
  42.     else
  43.         f->fmt.pix.colorspace = V4L2_COLORSPACE_SRGB;
  44.     return 0;
  45. }

  这里将应用层传进来的视频格式简单处理后存放进了一个 vivi_dev 结构,vivi_dev 哪里来的呢?,在一开始的时候 vivi_create_instance ,我们创建了一个 video_device 结构代表我们的设备,并设置了一个 vivi_dev 作为 video_device->dev->privatedata ,之后 register_video_device ,内核会自动将我们的 video_device 放入全局数组 video_device[] 中。

 2.4 VIDIOC_G_FMT 获得设置好的视频格式

应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. ret = ioctl(fd, VIDIOC_G_FMT, &fmt);
  2. if (ret < 0) {
  3.     LOG("VIDIOC_G_FMT failed (%d)\n", ret);
  4.     return ret;
  5. }
  6. // Print Stream Format
  7. LOG("Stream Format Informations:\n");
  8. LOG(" type: %d\n", fmt.type);
  9. LOG(" width: %d\n", fmt.fmt.pix.width);
  10. LOG(" height: %d\n", fmt.fmt.pix.height);
  11. char fmtstr[8];
  12. memset(fmtstr, 0, 8);
  13. memcpy(fmtstr, &fmt.fmt.pix.pixelformat, 4);
  14. LOG(" pixelformat: %s\n", fmtstr);
  15. LOG(" field: %d\n", fmt.fmt.pix.field);
  16. LOG(" bytesperline: %d\n", fmt.fmt.pix.bytesperline);
  17. LOG(" sizeimage: %d\n", fmt.fmt.pix.sizeimage);
  18. LOG(" colorspace: %d\n", fmt.fmt.pix.colorspace);
  19. LOG(" priv: %d\n", fmt.fmt.pix.priv);
  20. LOG(" raw_date: %s\n", fmt.fmt.raw_data);

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_g_fmt_vid_cap(struct file *file, void *priv,
  2.                     struct v4l2_format *f)
  3. {
  4.     struct vivi_dev *dev = video_drvdata(file);
  5. <span style="white-space:pre">    </span>// 把记录在 vivi_dev 中的参数写回用户空间
  6.     f->fmt.pix.width        = dev->width;
  7.     f->fmt.pix.height       = dev->height;
  8.     f->fmt.pix.field        = dev->field;
  9.     f->fmt.pix.pixelformat  = dev->fmt->fourcc;
  10.     f->fmt.pix.bytesperline =
  11.         (f->fmt.pix.width * dev->fmt->depth) >> 3;
  12.     f->fmt.pix.sizeimage =
  13.         f->fmt.pix.height * f->fmt.pix.bytesperline;
  14.     if (dev->fmt->fourcc == V4L2_PIX_FMT_YUYV ||
  15.         dev->fmt->fourcc == V4L2_PIX_FMT_UYVY)
  16.         f->fmt.pix.colorspace = V4L2_COLORSPACE_SMPTE170M;
  17.     else
  18.         f->fmt.pix.colorspace = V4L2_COLORSPACE_SRGB;
  19.     return 0;
  20. }

  将我们之前设置的格式返回而已。
  2.5 VIDIOC_REQBUFS 请求在内核空间分配视频缓冲区
    分配的内存位于内核空间,应用程序无法直接访问,需要通过调用mmap内存映射函数,把内核空间的内存映射到用户空间,应用才可以用用户空间地址来访问内核空间。
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. struct v4l2_requestbuffers {
  2.     __u32           count;
  3.     __u32           type;       /* enum v4l2_buf_type */
  4.     __u32           memory;     /* enum v4l2_memory */
  5.     __u32           reserved[2];
  6. };
  7. struct v4l2_requestbuffers reqbuf;
  8. reqbuf.type     = V4L2_BUF_TYPE_VIDEO_CAPTURE;
  9. reqbuf.memory   = V4L2_MEMORY_MMAP;
  10. reqbuf.count    = BUFFER_COUNT;
  11. ret = ioctl(fd , VIDIOC_REQBUFS, &reqbuf);
  12. if(ret < 0) {
  13.     LOG("VIDIOC_REQBUFS failed (%d)\n", ret);
  14.     return ret;
  15. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_reqbufs(struct file *file, void *priv,
  2.               struct v4l2_requestbuffers *p)
  3. {
  4.     struct vivi_dev *dev = video_drvdata(file);
  5.     return vb2_reqbufs(&dev->vb_vidq, p);    //核心层提供的标准函数
  6. }

  vb_vidq 是 vivi_dev 的一个成员,前面我们提到它有两个 ops ,一个是 ops 另一个是 mem_ops

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static struct vb2_ops vivi_video_qops = {
  2.     .queue_setup    = queue_setup,
  3.     .buf_init       = buffer_init,
  4.     .buf_prepare    = buffer_prepare,
  5.     .buf_finish         = buffer_finish,
  6.     .buf_cleanup        = buffer_cleanup,
  7.     .buf_queue      = buffer_queue,
  8.     .start_streaming= start_streaming,
  9.     .stop_streaming     = stop_streaming,
  10.     .wait_prepare       = vivi_unlock,
  11.     .wait_finish        = vivi_lock,
  12. };
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_reqbufs(struct file *file, void *priv,
  2.               struct v4l2_requestbuffers *p)
  3. {
  4.     struct vivi_dev *dev = video_drvdata(file);
  5.     return vb2_reqbufs(&dev->vb_vidq, p);    //核心层提供的标准函数
  6. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int vb2_reqbufs(struct vb2_queue *q, struct v4l2_requestbuffers *req)
  2. {
  3.     unsigned int num_buffers, allocated_buffers, num_planes = 0;
  4.     int ret = 0;
  5.     // 判断 re->count 是否小于 VIDEO_MAX_FRAME
  6.     num_buffers = min_t(unsigned int, req->count, VIDEO_MAX_FRAME);
  7.     memset(q->plane_sizes, 0, sizeof(q->plane_sizes));
  8.     memset(q->alloc_ctx, 0, sizeof(q->alloc_ctx));
  9.     q->memory = req->memory;
  10.
  11.     //(q)->ops->queue_setup(q,NULL,...)
  12.     ret = call_qop(q, queue_setup, q, NULL, &num_buffers, &num_planes,
  13.                q->plane_sizes, q->alloc_ctx);
  14.     /* Finally, allocate buffers and video memory */
  15.     ret = __vb2_queue_alloc(q, req->memory, num_buffers, num_planes);
  16.
  17.     allocated_buffers = ret;
  18.
  19.     q->num_buffers = allocated_buffers;
  20.     req->count = allocated_buffers;
  21.     return 0;
  22. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int queue_setup(struct vb2_queue *vq, const struct v4l2_format *fmt,
  2.                 unsigned int *nbuffers, unsigned int *nplanes,
  3.                 unsigned int sizes[], void *alloc_ctxs[])
  4. {
  5.     struct vivi_dev *dev = vb2_get_drv_priv(vq);
  6.     unsigned long size;
  7.     // 每一个buffer 的大小
  8.     size = dev->width * dev->height * dev->pixelsize;
  9.     if (0 == *nbuffers)
  10.         *nbuffers = 32;
  11.     // 如果申请的buffer过多,导致空间不够减少buffer
  12.     while (size * *nbuffers > vid_limit * 1024 * 1024)
  13.         (*nbuffers)--;
  14.     *nplanes = 1;
  15.     // 把总大小放入 vivi_dev->vb_vidq->plane_size[0]
  16.     sizes[0] = size;
  17.     return 0;
  18. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __vb2_queue_alloc(struct vb2_queue *q, enum v4l2_memory memory,
  2.                  unsigned int num_buffers, unsigned int num_planes)
  3. {
  4.     unsigned int buffer;
  5.     struct vb2_buffer *vb;
  6.     int ret;
  7.     // 分配多个 vb2_buffer 填充并放入 vivi_dev->vb_vidq->bufs[]
  8.     for (buffer = 0; buffer < num_buffers; ++buffer) {
  9.         /* Allocate videobuf buffer structures */
  10.         vb = kzalloc(q->buf_struct_size, GFP_KERNEL);
  11.
  12.         /* Length stores number of planes for multiplanar buffers */
  13.         if (V4L2_TYPE_IS_MULTIPLANAR(q->type))
  14.             vb->v4l2_buf.length = num_planes;
  15.
  16.         vb->state = VB2_BUF_STATE_DEQUEUED;
  17.         vb->vb2_queue = q;
  18.         vb->num_planes = num_planes;
  19.         vb->v4l2_buf.index = q->num_buffers + buffer;
  20.         vb->v4l2_buf.type = q->type;
  21.         vb->v4l2_buf.memory = memory;
  22.
  23.         /* Allocate video buffer memory for the MMAP type */
  24.         if (memory == V4L2_MEMORY_MMAP) {
  25.             ret = __vb2_buf_mem_alloc(vb);//核心提供的标准函数
  26.             ret = call_qop(q, buf_init, vb);//q->ops->buf_init
  27.         }
  28.
  29.         q->bufs[q->num_buffers + buffer] = vb;
  30.     }
  31.     __setup_offsets(q, buffer);
  32.     return buffer;
  33. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __vb2_buf_mem_alloc(struct vb2_buffer *vb)
  2. {
  3.     struct vb2_queue *q = vb->vb2_queue;
  4.     void *mem_priv;
  5.     int plane;
  6.
  7.     /* num_planes == 1 */
  8.     for (plane = 0; plane < vb->num_planes; ++plane) {
  9.         mem_priv = call_memop(q, alloc, q->alloc_ctx[plane],
  10.                       q->plane_sizes[plane]);
  11.
  12.         /* Associate allocator private data with this plane */
  13.         vb->planes[plane].mem_priv = mem_priv;
  14.         vb->v4l2_planes[plane].length = q->[plane];
  15.     }
  16.
  17.     return 0;
  18. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static void *vb2_vmalloc_alloc(void *alloc_ctx, unsigned long size)
  2. {
  3.     struct vb2_vmalloc_buf *buf;
  4.
  5.     buf = kzalloc(sizeof(*buf), GFP_KERNEL);
  6.
  7.     buf->size = size;
  8.     // 分配空间
  9.     buf->vaddr = vmalloc_user(buf->size);
  10.     buf->handler.refcount = &buf->refcount;
  11.     buf->handler.put = vb2_vmalloc_put;
  12.     buf->handler.arg = buf;
  13.
  14.     atomic_inc(&buf->refcount);
  15.     return buf;
  16. }

  2.6 VIDIOC_QUERYBUF 查询分配好的 buffer 信息
    查询已经分配好的V4L2视频缓冲区的相关信息,包括缓冲区的使用状态、在内核空间的偏移地址、缓冲区长度等,然后应用程序根据这些信息使用mmap把内核空间地址映射到用户空间。
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. struct v4l2_buffer {
  2.     __u32                   index;
  3.     enum v4l2_buf_type      type;
  4.     __u32                   bytesused;
  5.     __u32                   flags;
  6.     enum v4l2_field         field;
  7.     struct timeval          timestamp;
  8.     struct v4l2_timecode    timecode;
  9.     __u32                   sequence;
  10.
  11.     /* memory location */
  12.     enum v4l2_memory        memory;
  13.     union {
  14.         __u32               offset;
  15.         unsigned long       userptr;
  16.     } m;
  17.     __u32                   length;
  18.     __u32                   input;
  19.     __u32                   reserved;
  20. };
  21. v4l2_buffer buf;
  22. buf.index = i;
  23. buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
  24. buf.memory = V4L2_MEMORY_MMAP;
  25. ret = ioctl(fd , VIDIOC_QUERYBUF, &buf);
  26. if(ret < 0) {
  27.     LOG("VIDIOC_QUERYBUF (%d) failed (%d)\n", i, ret);
  28.     return ret;
  29. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. ops->vidioc_querybuf(file, fh, p);
  2. static int vidioc_querybuf(struct file *file, void *priv, struct v4l2_buffer *p)
  3. {
  4.     struct vivi_dev *dev = video_drvdata(file);
  5.     return vb2_querybuf(&dev->vb_vidq, p);
  6. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int vb2_querybuf(struct vb2_queue *q, struct v4l2_buffer *b)
  2. {
  3.     struct vb2_buffer *vb;
  4.     // 取出 buf
  5.     vb = q->bufs[b->index];
  6.     // 将 buf 信息写回用户空间传递的 b
  7.     return __fill_v4l2_buffer(vb, b);
  8. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __fill_v4l2_buffer(struct vb2_buffer *vb, struct v4l2_buffer *b)
  2. {
  3.     struct vb2_queue *q = vb->vb2_queue;
  4.     int ret;
  5.
  6.     /* Copy back data such as timestamp, flags, input, etc. */
  7.     memcpy(b, &vb->v4l2_buf, offsetof(struct v4l2_buffer, m));
  8.     b->input = vb->v4l2_buf.input;
  9.     b->reserved = vb->v4l2_buf.reserved;
  10.
  11.     if (V4L2_TYPE_IS_MULTIPLANAR(q->type)) {
  12.         ret = __verify_planes_array(vb, b);
  13.         if (ret)
  14.             return ret;
  15.
  16.         /*
  17.          * Fill in plane-related data if userspace provided an array
  18.          * for it. The memory and size is verified above.
  19.          */
  20.         memcpy(b->m.planes, vb->v4l2_planes,
  21.             b->length * sizeof(struct v4l2_plane));
  22.
  23.         if (q->memory == V4L2_MEMORY_DMABUF) {
  24.             unsigned int plane;
  25.             for (plane = 0; plane < vb->num_planes; ++plane)
  26.                 b->m.planes[plane].m.fd = 0;
  27.         }
  28.     } else {
  29.         /*
  30.          * We use length and offset in v4l2_planes array even for
  31.          * single-planar buffers, but userspace does not.
  32.          */
  33.         b->length = vb->v4l2_planes[0].length;
  34.         b->bytesused = vb->v4l2_planes[0].bytesused;
  35.         if (q->memory == V4L2_MEMORY_MMAP)
  36.             b->m.offset = vb->v4l2_planes[0].m.mem_offset;
  37.         else if (q->memory == V4L2_MEMORY_USERPTR)
  38.             b->m.userptr = vb->v4l2_planes[0].m.userptr;
  39.         else if (q->memory == V4L2_MEMORY_DMABUF)
  40.             b->m.fd = 0;
  41.     }
  42.
  43.     /*
  44.      * Clear any buffer state related flags.
  45.      */
  46.     b->flags &= ~V4L2_BUFFER_STATE_FLAGS;
  47.
  48.     switch (vb->state) {
  49.     case VB2_BUF_STATE_QUEUED:
  50.     case VB2_BUF_STATE_ACTIVE:
  51.         b->flags |= V4L2_BUF_FLAG_QUEUED;
  52.         break;
  53.     case VB2_BUF_STATE_ERROR:
  54.         b->flags |= V4L2_BUF_FLAG_ERROR;
  55.         /* fall through */
  56.     case VB2_BUF_STATE_DONE:
  57.         b->flags |= V4L2_BUF_FLAG_DONE;
  58.         break;
  59.     case VB2_BUF_STATE_PREPARED:
  60.         b->flags |= V4L2_BUF_FLAG_PREPARED;
  61.         break;
  62.     case VB2_BUF_STATE_DEQUEUED:
  63.         /* nothing */
  64.         break;
  65.     }
  66.
  67.     if (__buffer_in_use(q, vb))
  68.         b->flags |= V4L2_BUF_FLAG_MAPPED;
  69.
  70.     return 0;
  71. }

2.7 mmap
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. v4l2_buffer framebuf[]
  2. framebuf[i].length = buf.length;
  3. framebuf[i].start = (char *) mmap(
  4.     NULL,       // 欲指向内存的起始地址,一般为NULL,表示系统自动分配
  5.     buf.length, //映射长度
  6.     PROT_READ|PROT_WRITE,   //可读可写
  7.     MAP_SHARED,     //对映射区的读写会写回内核空间,而且允许其它映射该内核空间地址的进程共享
  8.     fd,
  9.     buf.m.offset
  10. );
  11. if (framebuf[i].start == MAP_FAILED) {
  12.     LOG("mmap (%d) failed: %s\n", i, strerror(errno));
  13.     return -1;
  14. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vivi_mmap(struct file *file, struct vm_area_struct *vma)
  2. {
  3.     struct vivi_dev *dev = video_drvdata(file);
  4.     int ret;
  5.     ret = vb2_mmap(&dev->vb_vidq, vma);//核心层提供的函数
  6.     return ret;
  7. }

2.8 VIDIOC_QBUF
  投放一个空的视频缓冲区到视频缓冲区输入队列,执行成功后,在启动视频设备拍摄图像时,相应的视频数据被保存到视频输入队列相应的视频缓冲区中。
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. ret = ioctl(fd , VIDIOC_QBUF, &buf);
  2. if (ret < 0) {
  3.     LOG("VIDIOC_QBUF (%d) failed (%d)\n", i, ret);
  4.     return -1;

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_qbuf(struct file *file, void *priv, struct v4l2_buffer *p)
  2. {
  3.     struct vivi_dev *dev = video_drvdata(file);
  4.     return vb2_qbuf(&dev->vb_vidq, p);
  5. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int vb2_qbuf(struct vb2_queue *q, struct v4l2_buffer *b)
  2. {
  3.     struct rw_semaphore *mmap_sem = NULL;
  4.     struct vb2_buffer *vb;
  5.     int ret = 0;
  6.
  7.     vb = q->bufs[b->index];
  8.
  9.     switch (vb->state) {
  10.     case VB2_BUF_STATE_DEQUEUED:
  11.         ret = __buf_prepare(vb, b);
  12.     }
  13.     // 将这个 buffer 挂入 q->queued_list
  14.     list_add_tail(&vb->queued_entry, &q->queued_list);
  15.     vb->state = VB2_BUF_STATE_QUEUED;
  16.
  17.     if (q->streaming)
  18.         __enqueue_in_driver(vb);
  19.
  20.     /* Fill buffer information for the userspace */
  21.     __fill_v4l2_buffer(vb, b);
  22.
  23. unlock:
  24.     if (mmap_sem)
  25.         up_read(mmap_sem);
  26.     return ret;
  27. }

  实质上就是取出一个 vb2_buffer 挂入 vivi_dev->vb_vidq->queued_list
2.9 VIDIOC_STREAMON
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. enum v4l2_buf_type type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
  2. ret = ioctl(fd, VIDIOC_STREAMON, &type);
  3. if (ret < 0) {
  4.     LOG("VIDIOC_STREAMON failed (%d)\n", ret);
  5.     return ret;
  6. }

驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_streamon(struct file *file, void *priv, enum v4l2_buf_type i)
  2. {
  3.     struct vivi_dev *dev = video_drvdata(file);
  4.     return vb2_streamon(&dev->vb_vidq, i);
  5. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int vb2_streamon(struct vb2_queue *q, enum v4l2_buf_type type)
  2. {
  3.     struct vb2_buffer *vb;
  4.     int ret;
  5.     vb->state = VB2_BUF_STATE_ACTIVE;
  6.     // 在 queued_list 链表中取出每一个 buffer 调用buffer queue,对于vivi来说就是放入 vidq->active 链表
  7.     list_for_each_entry(vb, &q->queued_list, queued_entry)
  8.             __enqueue_in_driver(vb);
  9.     ret = call_qop(q, start_streaming, q, atomic_read(&q->queued_count));
  10.
  11.     q->streaming = 1;
  12.     return 0;
  13. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static void __enqueue_in_driver(struct vb2_buffer *vb)
  2. {
  3.     struct vb2_queue *q = vb->vb2_queue;
  4.     vb->state = VB2_BUF_STATE_ACTIVE;
  5.
  6.     /* sync buffers */
  7.     for (plane = 0; plane < vb->num_planes; ++plane)
  8.     call_memop(q, prepare, vb->planes[plane].mem_priv);
  9.
  10.     q->ops->buf_queue(vb);//    list_add_tail(&buf->list, &vidq->active);
  11. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int start_streaming(struct vb2_queue *vq, unsigned int count)
  2. {
  3.     struct vivi_dev *dev = vb2_get_drv_priv(vq);
  4.     dprintk(dev, 1, "%s\n", __func__);
  5.     return vivi_start_generating(dev);
  6. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vivi_start_generating(struct vivi_dev *dev)
  2. {
  3.     struct vivi_dmaqueue *dma_q = &dev->vidq;
  4.
  5.     /* Resets frame counters */
  6.     dev->ms = 0;
  7.     dev->mv_count = 0;
  8.     dev->jiffies = jiffies;
  9.
  10.     dma_q->frame = 0;
  11.     dma_q->ini_jiffies = jiffies;
  12.     // 创建一个内核线程,入口函数 vivi_thread
  13.     dma_q->kthread = kthread_run(vivi_thread, dev, dev->v4l2_dev.name);
  14.
  15.     /* Wakes thread */
  16.     wake_up_interruptible(&dma_q->wq);
  17.
  18.     return 0;
  19. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vivi_thread(void *data)
  2. {
  3.     struct vivi_dev *dev = data;
  4.
  5.     dprintk(dev, 1, "thread started\n");
  6.
  7.     set_freezable();
  8.
  9.     for (;;) {
  10.         vivi_sleep(dev);
  11.
  12.         if (kthread_should_stop())
  13.             break;
  14.     }
  15.     dprintk(dev, 1, "thread: exit\n");
  16.     return 0;
  17. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static void vivi_sleep(struct vivi_dev *dev)
  2. {
  3.     struct vivi_dmaqueue *dma_q = &dev->vidq;
  4.     int timeout;
  5.     DECLARE_WAITQUEUE(wait, current);
  6.
  7.     add_wait_queue(&dma_q->wq, &wait);
  8.     if (kthread_should_stop())
  9.         goto stop_task;
  10.
  11.     /* Calculate time to wake up */
  12.     timeout = msecs_to_jiffies(frames_to_ms(1));
  13.
  14.     vivi_thread_tick(dev);
  15.
  16.     schedule_timeout_interruptible(timeout);
  17.
  18. stop_task:
  19.     remove_wait_queue(&dma_q->wq, &wait);
  20.     try_to_freeze();
  21. }

  每次调用 vivi_sleep 这个线程都被挂入等待队列,调用 vivi_thread_tick 填充数据,然后休眠指定的时间自动唤醒,一直循环下去。这样就生成了一帧一帧的视频数据。

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static void vivi_thread_tick(struct vivi_dev *dev)
  2. {
  3.     struct vivi_dmaqueue *dma_q = &dev->vidq;
  4.     struct vivi_buffer *buf;
  5.     unsigned long flags = 0;
  6.
  7.     spin_lock_irqsave(&dev->slock, flags);
  8.
  9.     buf = list_entry(dma_q->active.next, struct vivi_buffer, list);
  10.     list_del(&buf->list);
  11.     spin_unlock_irqrestore(&dev->slock, flags);
  12.
  13.     do_gettimeofday(&buf->vb.v4l2_buf.timestamp);
  14.
  15.     /* 填充Buffer */
  16.     vivi_fillbuff(dev, buf);
  17.
  18.     vb2_buffer_done(&buf->vb, VB2_BUF_STATE_DONE);
  19. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. void vb2_buffer_done(struct vb2_buffer *vb, enum vb2_buffer_state state)
  2. {
  3.     struct vb2_queue *q = vb->vb2_queue;
  4.     unsigned long flags;
  5.     unsigned int plane;
  6.
  7.     /* sync buffers */
  8.     for (plane = 0; plane < vb->num_planes; ++plane)
  9.         call_memop(q, finish, vb->planes[plane].mem_priv);
  10.
  11.     /* Add the buffer to the done buffers list */
  12.     spin_lock_irqsave(&q->done_lock, flags);
  13.     vb->state = state;
  14.     list_add_tail(&vb->done_entry, &q->done_list);
  15.     atomic_dec(&q->queued_count);
  16. #ifdef CONFIG_SYNC
  17.     sw_sync_timeline_inc(q->timeline, 1);
  18. #endif
  19.     spin_unlock_irqrestore(&q->done_lock, flags);
  20.
  21.     /* 应用程序select 时 poll_wait 里休眠,现在有数据了唤醒 */
  22.     wake_up(&q->done_wq);
  23. }

  开始的时候我们将以一个 vb_buffer 挂入 vb_vidq->queued_list ,当启动视频传输之后,它被取出挂入 vb_vidq->vidq->active 队列,然后在内核线程中每一个 tick ,又将它取出填充视频数据之后,再挂入 vb_vidq->done_list ,唤醒正在休眠等待视频数据的应用程序。
2.10 select
驱动层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. vivi_poll(struct file *file, struct poll_table_struct *wait)
  2. {
  3.     struct vivi_dev *dev = video_drvdata(file);
  4.     struct vb2_queue *q = &dev->vb_vidq;
  5.
  6.     return vb2_poll(q, file, wait);
  7. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. unsigned int vb2_poll(struct vb2_queue *q, struct file *file, poll_table *wait)
  2. {
  3.     // 挂入休眠队列,是否休眠还要看返回值,大概没有数据就休眠,有数据就不休眠
  4.     poll_wait(file, &q->done_wq, wait);
  5.
  6.     if (!list_empty(&q->done_list))
  7.         vb = list_first_entry(&q->done_list, struct vb2_buffer,
  8.                     done_entry);
  9.     spin_unlock_irqrestore(&q->done_lock, flags);
  10.
  11.     if (vb && (vb->state == VB2_BUF_STATE_DONE
  12.             || vb->state == VB2_BUF_STATE_ERROR)) {
  13.         return (V4L2_TYPE_IS_OUTPUT(q->type)) ?
  14.                 res | POLLOUT | POLLWRNORM :
  15.                 res | POLLIN | POLLRDNORM;
  16.     }
  17.     return res;
  18. }

  唤醒之后,我们就可以去从视频输出队列中取出buffer,然后根据映射关系,在应用空间取出视频数据了
2.11 VIDIOC_DQBUF
应用层:

[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. ret = ioctl(fd, VIDIOC_DQBUF, &buf);
  2. if (ret < 0) {
  3.     LOG("VIDIOC_DQBUF failed (%d)\n", ret);
  4.     return ret;
  5. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int vidioc_dqbuf(struct file *file, void *priv, struct v4l2_buffer *p)
  2. {
  3.     struct vivi_dev *dev = video_drvdata(file);
  4.     return vb2_dqbuf(&dev->vb_vidq, p, file->f_flags & O_NONBLOCK);
  5. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. int vb2_dqbuf(struct vb2_queue *q, struct v4l2_buffer *b, bool nonblocking)
  2. {
  3.     struct vb2_buffer *vb = NULL;
  4.     int ret;
  5.     // 等待在 q->done_list 取出第一个可用的 buffer
  6.     ret = __vb2_get_done_vb(q, &vb, nonblocking);
  7.
  8.     ret = call_qop(q, buf_finish, vb);
  9.
  10.     /* 写回buffer的信息到用户空间,应用程序找个这个buffer的mmap之后的地址读数据 */
  11.     __fill_v4l2_buffer(vb, b);
  12.     /* Remove from videobuf queue */
  13.     list_del(&vb->queued_entry);
  14.
  15.     vb->state = VB2_BUF_STATE_DEQUEUED;
  16.     return 0;
  17. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
  1. static int __vb2_get_done_vb(struct vb2_queue *q, struct vb2_buffer **vb,int nonblocking)
  2. {
  3.     unsigned long flags;
  4.     int ret;
  5.     /*
  6.     * Wait for at least one buffer to become available on the done_list.
  7.     */
  8.     ret = __vb2_wait_for_done_vb(q, nonblocking);
  9.
  10.
  11.     spin_lock_irqsave(&q->done_lock, flags);
  12.     *vb = list_first_entry(&q->done_list, struct vb2_buffer, done_entry);
  13.     list_del(&(*vb)->done_entry);
  14.     spin_unlock_irqrestore(&q->done_lock, flags);
  15.     return 0;
  16. }
[cpp] view plain copy

 print?在CODE上查看代码片派生到我的代码片
    1. static int buffer_finish(struct vb2_buffer *vb)
    2. {
    3.     struct vivi_dev *dev = vb2_get_drv_priv(vb->vb2_queue);
    4.     dprintk(dev, 1, "%s\n", __func__);
    5.     return 0;
    6. }

posted on 2017-04-11 17:19  Red_Point  阅读(2697)  评论(0编辑  收藏  举报

导航
