Quartz.NET 任务调度框架

在之前的博客中,介绍过Quartz任务调度框架(Java版本)。最近在.NET平台使用了Quartz任务调度框架,并且结合TopShelf框架,把Quartz发布成Windows Service。

今天把示例贴出来,作为自己学习的记录,如果对读者有所帮助,幸甚至哉!

1.资源

1)Quartz 类库

2)TopShelf/TopShelf.Log4Net

3)Common.Logging/Common.Logging.Core/Common.Logging.Log4Net

2.Jobs

1)FirstJob



[csharp] view plaincopy

  1. using log4net;
  2. using Quartz;
  3. using System;
  4. using System.Collections.Generic;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace QuartzDemo.QuartzJobs
  10. {
  11.     public sealed class FirstJob : IJob
  12.     {
  13.         private readonly ILog _logger = LogManager.GetLogger(typeof(FirstJob));
  14.
  15.         public void Execute(IJobExecutionContext context)
  16.         {
  17.             _logger.InfoFormat("FirstJob executed successfully.");
  18.         }
  19.     }
  20. }

2)SecondJob





[csharp] view plaincopy

  1. using log4net;
  2. using Quartz;
  3. using System;
  4. using System.Collections.Generic;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8.
  9. namespace QuartzDemo.QuartzJobs
  10. {
  11.     public sealed class SecondJob : IJob
  12.     {
  13.         private readonly ILog _logger = LogManager.GetLogger(typeof(SecondJob));
  14.
  15.         public void Execute(IJobExecutionContext context)
  16.         {
  17.             _logger.InfoFormat("SecondJob executed successfully.");
  18.         }
  19.     }
  20. }

3.配置Jobs





[html] view plaincopy

  1. <?xml version="1.0" encoding="UTF-8"?>
  2.
  3. <!-- This file contains job definitions in schema version 2.0 format -->
  4.
  5. <job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData"
  6.                      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.0">
  7.
  8.   <processing-directives>
  9.     <overwrite-existing-data>true</overwrite-existing-data>
  10.   </processing-directives>
  11.
  12.   <schedule>
  13.
  14.     <!--FirstJob 任务配置-->
  15.     <job>
  16.       <name>FirstJob</name>
  17.       <group>First</group>
  18.       <description>First Job Test</description>
  19.       <job-type>QuartzDemo.QuartzJobs.FirstJob,QuartzDemo</job-type>
  20.       <durable>true</durable>
  21.       <recover>false</recover>
  22.     </job>
  23.     <trigger>
  24.       <cron>
  25.         <name>FirstJobTrigger</name>
  26.         <group>First</group>
  27.         <job-name>FirstJob</job-name>
  28.         <job-group>First</job-group>
  29.         <start-time>2015-01-22T00:00:00+08:00</start-time>
  30.         <cron-expression>0/5 * * * * ?</cron-expression>
  31.       </cron>
  32.     </trigger>
  33.
  34.     <!--SecondJob 任务配置-->
  35.     <job>
  36.       <name>SecondJob</name>
  37.       <group>Second</group>
  38.       <description>Second Job Test</description>
  39.       <job-type>QuartzDemo.QuartzJobs.SecondJob,QuartzDemo</job-type>
  40.       <durable>true</durable>
  41.       <recover>false</recover>
  42.     </job>
  43.     <trigger>
  44.       <cron>
  45.         <name>SecondJobTrigger</name>
  46.         <group>Second</group>
  47.         <job-name>SecondJob</job-name>
  48.         <job-group>Second</job-group>
  49.         <start-time>2015-01-22T00:00:00+08:00</start-time>
  50.         <cron-expression>0/3 * * * * ?</cron-expression>
  51.       </cron>
  52.     </trigger>
  53.
  54.   </schedule>
  55. </job-scheduling-data>

4.quartz.config





[html] view plaincopy

  1. # You can configure your scheduler in either <quartz> configuration section
  2. # or in quartz properties file
  3. # Configuration section has precedence
  4.
  5. quartz.scheduler.instanceName = QuartzTest
  6.
  7. # configure thread pool info
  8. quartz.threadPool.type = Quartz.Simpl.SimpleThreadPool, Quartz
  9. quartz.threadPool.threadCount = 10
  10. quartz.threadPool.threadPriority = Normal
  11.
  12. # job initialization plugin handles our xml reading, without it defaults are used
  13. quartz.plugin.xml.type = Quartz.Plugin.Xml.XMLSchedulingDataProcessorPlugin, Quartz
  14. quartz.plugin.xml.fileNames = ~/quartz_jobs.xml
  15.
  16. # export this server to remoting context
  17. #quartz.scheduler.exporter.type = Quartz.Simpl.RemotingSchedulerExporter, Quartz
  18. #quartz.scheduler.exporter.port = 555
  19. #quartz.scheduler.exporter.bindName = QuartzScheduler
  20. #quartz.scheduler.exporter.channelType = tcp
  21. #quartz.scheduler.exporter.channelName = httpQuartz

5.TopShelf



服务有启动,停止,继续,暂停等动作,我们使用TopShelf框架很方便地实现。



[csharp] view plaincopy

  1. using Quartz;
  2. using Quartz.Impl;
  3. using System;
  4. using System.Collections.Generic;
  5. using System.Linq;
  6. using System.Text;
  7. using System.Threading.Tasks;
  8. using Topshelf;
  9.
  10. namespace QuartzDemo
  11. {
  12.     public sealed class ServiceRunner : ServiceControl, ServiceSuspend
  13.     {
  14.         private readonly IScheduler scheduler;
  15.
  16.         public ServiceRunner()
  17.         {
  18.             scheduler = StdSchedulerFactory.GetDefaultScheduler();
  19.         }
  20.
  21.         public bool Start(HostControl hostControl)
  22.         {
  23.             scheduler.Start();
  24.             return true;
  25.         }
  26.
  27.         public bool Stop(HostControl hostControl)
  28.         {
  29.             scheduler.Shutdown(false);
  30.             return true;
  31.         }
  32.
  33.         public bool Continue(HostControl hostControl)
  34.         {
  35.             scheduler.ResumeAll();
  36.             return true;
  37.         }
  38.
  39.         public bool Pause(HostControl hostControl)
  40.         {
  41.             scheduler.PauseAll();
  42.             return true;
  43.         }
  44.     }
  45. }

6.Log4Net配置





[html] view plaincopy

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <configuration>
  3.   <configSections>
  4.     <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net"/>
  5.   </configSections>
  6.
  7.   <log4net>
  8.     <appender name="RollingLogFileAppender" type="log4net.Appender.RollingFileAppender">
  9.       <!--日志路径-->
  10.       <param name= "File" value= "D:\App_Log\servicelog\"/>
  11.       <!--是否是向文件中追加日志-->
  12.       <param name= "AppendToFile" value= "true"/>
  13.       <!--log保留天数-->
  14.       <param name= "MaxSizeRollBackups" value= "10"/>
  15.       <!--日志文件名是否是固定不变的-->
  16.       <param name= "StaticLogFileName" value= "false"/>
  17.       <!--日志文件名格式为:2008-08-31.log-->
  18.       <param name= "DatePattern" value= "yyyy-MM-dd".read.log""/>
  19.       <!--日志根据日期滚动-->
  20.       <param name= "RollingStyle" value= "Date"/>
  21.       <layout type="log4net.Layout.PatternLayout">
  22.         <param name="ConversionPattern" value="%d [%t] %-5p %c - %m%n %loggername" />
  23.       </layout>
  24.     </appender>
  25.
  26.     <!-- 控制台前台显示日志 -->
  27.     <appender name="ColoredConsoleAppender" type="log4net.Appender.ColoredConsoleAppender">
  28.       <mapping>
  29.         <level value="ERROR" />
  30.         <foreColor value="Red, HighIntensity" />
  31.       </mapping>
  32.       <mapping>
  33.         <level value="Info" />
  34.         <foreColor value="Green" />
  35.       </mapping>
  36.       <layout type="log4net.Layout.PatternLayout">
  37.         <conversionPattern value="%n%date{HH:mm:ss,fff} [%-5level] %m" />
  38.       </layout>
  39.
  40.       <filter type="log4net.Filter.LevelRangeFilter">
  41.         <param name="LevelMin" value="Info" />
  42.         <param name="LevelMax" value="Fatal" />
  43.       </filter>
  44.     </appender>
  45.
  46.     <root>
  47.       <!--(高) OFF > FATAL > ERROR > WARN > INFO > DEBUG > ALL (低) -->
  48.       <level value="all" />
  49.       <appender-ref ref="ColoredConsoleAppender"/>
  50.       <appender-ref ref="RollingLogFileAppender"/>
  51.     </root>
  52.   </log4net>
  53. </configuration>

7.TopShelf启动





[csharp] view plaincopy

  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7. using Topshelf;
  8.
  9. namespace QuartzDemo
  10. {
  11.     class Program
  12.     {
  13.         static void Main(string[] args)
  14.         {
  15.             var fileInfo = new FileInfo(AppDomain.CurrentDomain.BaseDirectory + "log4net.config");
  16.             log4net.Config.XmlConfigurator.ConfigureAndWatch(fileInfo);
  17.             HostFactory.Run(x =>
  18.             {
  19.                 x.RunAsLocalSystem();
  20.                 x.Service<ServiceRunner>();
  21.                 x.SetDescription("QuartzDemo服务描述");
  22.                 x.SetDisplayName("QuartzDemo服务显示名称");
  23.                 x.SetServiceName("QuartzDemo服务名称");
  24.                 x.EnablePauseAndContinue();
  25.             });
  26.         }
  27.     }
  28. }

8.效果





安装十分简单,在DOS(系统管理员身份启动)环境下,切换到QuartzDemo.exe所在目录



[plain] view plaincopy

  1. QuartzDemo.exe install

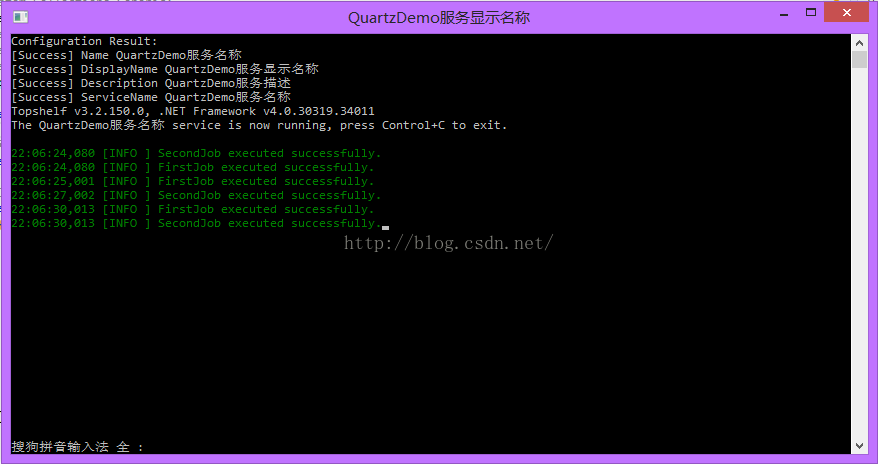

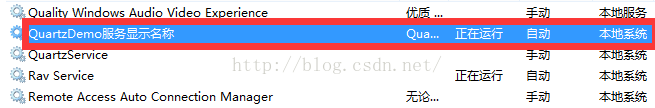

服务安装后并启动后如下:





http://blog.csdn.net/afandaafandaafanda/article/details/47323799

posted on 2015-11-19 23:33  HackerVirus  阅读(499)  评论(0编辑  收藏  举报
