安全编程技术-API hook实验

API Hook实验

API Hook技术是对API函数进行Hook（挂钩）的技术。API Hook的基本方法就是通过hook“接触”到需要修改的API函数入口点，改变它的地址指向新的自定义的函数。

API Hook和消息Hook的区别是，它们Hook的对象不同：消息Hook Windows消息，API Hook 特定函数

API Hook方法多种：IAT Hook、代码Hook、EAT Hook

EAT: export address table，导出地址表

本次实验是一个IAT Hook示例。

实验环境：Win xp sp3, VC 6.0

利用API Hook技术，模拟对lstrcpy函数进行Hook，捕获输入输出。

步骤：

[1] 编写自定义函数：实现检测等需要的功能；

[2] Hook实现：根据PE文件结构寻找IAT，并将IAT中的目标函数的地址更换为自定义的函数地址；

[3] Dll注入：将包含IAT Hook代码及自定义的Hook函数的Dll注入到目标文件中。

strcpy_exe应用程序的代码（注入的目标文件）：

	#include <stdio.h>
	#include <string.h>
	#include <windows.h>

	int main(){
	    char dest[50] = {0};
	    char src[50] = {0};
	    char flag = '0';

	    while(true)
	    {
	        printf("push q to quit, c to continue!\n");
	        flag=getchar();
	        getchar();
	        if(flag == 'q') break;
	        printf("Input Src String!\n");
	        printf("Src:  ");
	        gets(src);
	        lstrcpyW((LPWSTR)dest, (LPWSTR)src);
	        printf("Dest:%s\n\n",dest);
	    }
	    return 0;
	}

strcpy_hookiat.dll编写（自定义函数功能）

#include <stdio.h>
#include <stdlib.h>
#include <wchar.h>
#include <windows.h>
#include <time.h>

typedef LPTSTR(WINAPI* PFLSTRCPYW)(LPWSTR lpString1, LPWSTR lpString2);
FARPROC g_pOrgFunc = NULL;

char* wideCharToMultiByte(wchar_t* pwcStrKey)
{
    // 第一次调用确认转换后单字节字符串的长度，用于开辟空间
    int pSize = WideCharToMultiByte(CP_OEMCP, 0, pwcStrKey, wcslen(pwcStrKey), NULL, 0, NULL, NULL);
    char* pcStrKey = new char[pSize + 1];

    // 第二次调用将双字节字符串转换成单字节字符串
    WideCharToMultiByte(CP_OEMCP, 0, pwcStrKey, wcslen(pwcStrKey), pcStrKey, pSize, NULL, NULL);
    pcStrKey[pSize] = '\0';

    return pcStrKey;
    //如果想要转换成String，直接赋值即可
    //String pKey = pcStrKey;
}

void writelog(const char *log)
{
    time_t tDate;
    struct tm *eventTime;
    time(&tDate);
    eventTime = localtime(&tDate);

    int iYear = eventTime->tm_year + 1900;
    int iMon = eventTime->tm_mon + 1;
    int iDay = eventTime->tm_mday;
    int iHour = eventTime->tm_hour;
    int iMin = eventTime->tm_min;
    int iSec = eventTime->tm_sec;

    char sDate[16];
    sprintf(sDate, "%04d-%02d-%02d", iYear, iMon, iDay);

    char sTime[16];
    sprintf(sTime, "%02d:%02d:%02d", iHour, iMin, iSec);

    char s[1024];
    sprintf(s, "%s %s %s\n", sDate, sTime, log);

    FILE *fd = fopen("my.log", "a+");
    if (fd != NULL) {
        fputs(s, fd);
        fclose(fd);
    }
}

// MylstrcpyW
LPTSTR WINAPI MylstrcpyW(LPWSTR lpString1, LPWSTR lpString2)
{
    char log[100];
    //char* dst = wideCharToMultiByte(lpString1);
    //char* src = wideCharToMultiByte(lpString2);

    sprintf(log, "lstrcpyW被调用：\tDST参数为%s\tSRC参数为%s", (char*)(lpString1), (char*)(lpString2));
    writelog(log);

    // 执行kernel32!lstrcpyW() API
    LPTSTR Result = ((PFLSTRCPYW)g_pOrgFunc)(lpString1, lpString2);

    if (Result != NULL) {
        sprintf(log, "本次Cpy成功：\tDST参数为%s\tSRC参数为%s", (char*)(lpString1), (char*)(lpString2));
        writelog(log);
    } else {
        sprintf(log, "本次cpy失败");
        writelog(log);
    }

    //delete[] dst;
    //delete[] src;

    return Result;
}

// IAT HOOK函数
BOOL hook_iat(LPCSTR szDllName, PROC pfnOrg, PROC pfnNew)
{
    // szDllName指目标API所在系统Dll名称，即"kernel32.dll"
    // pfnOrg指原始API地址，即lstrcpyW()的地址
    // pfnNew指用于替换lstrcpyW()的自定义函数的地址，即MylstrcpyW()的地址

    HMODULE hMod;
    LPCSTR szLibName;
    PIMAGE_IMPORT_DESCRIPTOR pImportDesc;
    PIMAGE_THUNK_DATA pThunk;
    DWORD dwOldProtect, dwRVA;
    PBYTE pAddr;

    // hMod, pAddr = 可执行文件的ImageBase
    //             = VA of MZ signature (IMAGE_DOS_HEADER)
    hMod = GetModuleHandle(NULL);
    pAddr = (PBYTE)hMod;

    // pAddr = VA of PE signature (IMAGE_NT_HEADERS)
    pAddr += *((DWORD*)&pAddr[0x3C]);

   // dwRVA = RVA of IMAGE_IMPORT_DESCRIPTOR Table
   dwRVA = *((DWORD*)&pAddr[0x80]);

    // pImportDesc = VA of IMAGE_IMPORT_DESCRIPTOR Table
    pImportDesc = (PIMAGE_IMPORT_DESCRIPTOR)((DWORD)hMod + dwRVA);

    for (; pImportDesc->Name; pImportDesc++) {
        // szLibName = VA of IMAGE_IMPORT_DESCRIPTOR.Name
        szLibName = (LPCSTR)((DWORD)hMod + pImportDesc->Name);

        if (!_stricmp(szLibName, szDllName)) {
            // pThunk = IMAGE_IMPORT_DESCRIPTOR.FirstThunk
            //        = VA to IAT(Import Address Table)
           pThunk = (PIMAGE_THUNK_DATA)((DWORD)hMod + pImportDesc->FirstThunk);

            // pThunk->u1.Function = VA of API
            for (; pThunk->u1.Function; pThunk++) {
                if (pThunk->u1.Function == (DWORD*)pfnOrg) {
                    // 更改内存属性为E/R/W
                    VirtualProtect((LPVOID)&pThunk->u1.Function,
                                   4,
                                   PAGE_EXECUTE_READWRITE,
                                   &dwOldProtect);

                    // 修改IAT值（钩取）
                    pThunk->u1.Function = (DWORD*)pfnNew;

                    // 恢复内存属性
                    VirtualProtect((LPVOID)&pThunk->u1.Function,
                                   4,
                                   dwOldProtect,
                                   &dwOldProtect);

                    return TRUE;
                }
            }
        }
    }

    return FALSE;
}

BOOL WINAPI DllMain(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved)
{
    switch (fdwReason)
    {
        case DLL_PROCESS_ATTACH:
            // 保存原始API地址
            g_pOrgFunc = GetProcAddress(GetModuleHandle((LPCTSTR)"kernel32.dll"), "lstrcpyW");

            // 用hookiat!MysetWindowText()钩取kernel32!SetWindowTextW()
            hook_iat("kernel32.dll", g_pOrgFunc, (PROC)MylstrcpyW);
            break;

        case DLL_PROCESS_DETACH:
            // 将..exe的IAT恢复原值
            hook_iat("kernel32.dll", (PROC)MylstrcpyW, g_pOrgFunc);
            break;
    }

    return TRUE;
}

InjectDll.exe编写（通过PID注入dll）

#include <stdio.h>
#include <windows.h>
#include <tlhelp32.h>
#include <winbase.h>
#include <tchar.h>

// 定义缺少的常量
#ifndef SE_PRIVILEGE_ENABLED
#define SE_PRIVILEGE_ENABLED 0x00000002
#endif

#ifndef SE_DEBUG_NAME
#define SE_DEBUG_NAME TEXT("SeDebugPrivilege")
#endif

void usage()
{
    printf("\nInjectDll.exe\n"
           "- USAGE : InjectDll.exe <i|e> <PID> <dll_path>\n\n");
}

// dwPID指待注入目标进程的PID值
// szDllName指带注入DLL的path
BOOL InjectDll(DWORD dwPID, LPCTSTR szDllName)
{
    HANDLE hProcess, hThread;
    LPVOID pRemoteBuf;
    DWORD dwBufSize = (DWORD)(_tcslen(szDllName) + 1) * sizeof(TCHAR);
    LPTHREAD_START_ROUTINE pThreadProc;

    // #1.使用dwPID获取目标进程(notepad.exe)句柄
    if (!(hProcess = OpenProcess(PROCESS_ALL_ACCESS, FALSE, dwPID)))
    {
        DWORD dwErr = GetLastError();
        _tprintf(_T("OpenProcess failed: %lu\n"), dwErr);
        return FALSE;
    }

    // #2.在目标进程(notepad.exe)中分配szDllName大小的内存
    pRemoteBuf = VirtualAllocEx(hProcess, NULL, dwBufSize, MEM_COMMIT, PAGE_READWRITE);
    if (pRemoteBuf == NULL)
    {
        _tprintf(_T("VirtualAllocEx failed\n"));
        CloseHandle(hProcess);
        return FALSE;
    }

    // #3.将szDll路径写入分配的内存
    if (!WriteProcessMemory(hProcess, pRemoteBuf, (LPVOID)szDllName, dwBufSize, NULL))
    {
        _tprintf(_T("WriteProcessMemory failed\n"));
        VirtualFreeEx(hProcess, pRemoteBuf, 0, MEM_RELEASE);
        CloseHandle(hProcess);
        return FALSE;
    }

    // #4.获取LoadLibraryA() API的地址
    pThreadProc = (LPTHREAD_START_ROUTINE)GetProcAddress(GetModuleHandleA("kernel32.dll"), "LoadLibraryA");
    if (pThreadProc == NULL)
    {
        _tprintf(_T("GetProcAddress failed\n"));
        VirtualFreeEx(hProcess, pRemoteBuf, 0, MEM_RELEASE);
        CloseHandle(hProcess);
        return FALSE;
    }

    // #5.在exe进程中运行线程
    hThread = CreateRemoteThread(hProcess, NULL, 0, pThreadProc, pRemoteBuf, 0, NULL);
    if (hThread == NULL)
    {
        _tprintf(_T("CreateRemoteThread failed\n"));
        VirtualFreeEx(hProcess, pRemoteBuf, 0, MEM_RELEASE);
        CloseHandle(hProcess);
        return FALSE;
    }

    WaitForSingleObject(hThread, INFINITE);
    CloseHandle(hThread);
    VirtualFreeEx(hProcess, pRemoteBuf, 0, MEM_RELEASE);
    CloseHandle(hProcess);
    return TRUE;
}

BOOL EjectDll(DWORD dwPID, LPCTSTR szDllName)
{
    BOOL bMore = FALSE, bFound = FALSE;
    HANDLE hSnapshot, hProcess, hThread;
    MODULEENTRY32 me = { sizeof(me) };
    LPTHREAD_START_ROUTINE pThreadProc;

    //使用TH32CS_SNAPMODULE参数，获取eXe加载的DLL名称
    if (INVALID_HANDLE_VALUE == (hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPMODULE, dwPID)))
    {
        _tprintf(_T("CreateToolhelp32Snapshot failed\n"));
        return FALSE;
    }

    //从DLL中查找注入的DLL
    bMore = Module32First(hSnapshot, &me);
    for (; bMore; bMore = Module32Next(hSnapshot, &me))
    {
        if (!_tcsicmp(me.szModule, szDllName) || !_tcsicmp(me.szExePath, szDllName))
        {
            bFound = TRUE;
            break;
        }
    }

    if (!bFound)
    {
        _tprintf(_T("DLL not found in target process\n"));
        CloseHandle(hSnapshot);
        return FALSE;
    }

    //OpenProcess函数用来打开一个己存在的进程对象，并返回进程的句柄
    if (!(hProcess = OpenProcess(PROCESS_ALL_ACCESS, FALSE, dwPID)))
    {
        _tprintf(_T("OpenProcess failed\n"));
        CloseHandle(hSnapshot);
        return FALSE;
    }

    //获取FreeLibrary() API的地址
    pThreadProc = (LPTHREAD_START_ROUTINE)GetProcAddress(GetModuleHandleA("kernel32.dll"), "FreeLibrary");
    if (pThreadProc == NULL)
    {
        _tprintf(_T("GetProcAddress failed\n"));
        CloseHandle(hProcess);
        CloseHandle(hSnapshot);
        return FALSE;
    }

    //在exe进程中运行线程
    hThread = CreateRemoteThread(hProcess, NULL, 0, pThreadProc, me.modBaseAddr, 0, NULL);
    if (hThread == NULL)
    {
        _tprintf(_T("CreateRemoteThread failed\n"));
        CloseHandle(hProcess);
        CloseHandle(hSnapshot);
        return FALSE;
    }

    WaitForSingleObject(hThread, INFINITE);
    CloseHandle(hThread);
    CloseHandle(hProcess);
    CloseHandle(hSnapshot);
    return TRUE;
}

DWORD _EnableNTPrivilege(LPCTSTR szPrivilege, DWORD dwState)
{
    DWORD dwRtn = 0;
    HANDLE hToken;
    //获得进程访问令牌的句柄
    if (OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES | TOKEN_QUERY, &hToken))
    {
        LUID luid;
        //查看系统权限的特权值，返向信息到一个LUID结构体里
        if (LookupPrivilegeValue(NULL, szPrivilege, &luid))
        {
            BYTE t1[sizeof(TOKEN_PRIVILEGES) + sizeof(LUID_AND_ATTRIBUTES)];
            BYTE t2[sizeof(TOKEN_PRIVILEGES) + sizeof(LUID_AND_ATTRIBUTES)];
            DWORD cbTP = sizeof(TOKEN_PRIVILEGES) + sizeof(LUID_AND_ATTRIBUTES);

            PTOKEN_PRIVILEGES pTP = (PTOKEN_PRIVILEGES)t1;
            PTOKEN_PRIVILEGES pPrevTP = (PTOKEN_PRIVILEGES)t2;

            pTP->PrivilegeCount = 1;
            pTP->Privileges[0].Luid = luid;   //SE_DEBUG_NAME特权
            pTP->Privileges[0].Attributes = dwState; //SE_PRIVILEGE_ENABLED表示属性为特权启动

            //启用或禁止指定访问令牌的特权
            if (AdjustTokenPrivileges(hToken, FALSE, pTP, cbTP, pPrevTP, &cbTP))
            {
                dwRtn = pPrevTP->Privileges[0].Attributes;
            }
        }
        CloseHandle(hToken);
    }
    return dwRtn;
}

int _tmain(int argc, TCHAR *argv[])
{
    if (argc != 4)
    {
        usage();
        return 1;
    }

    //adjust privilege
    _EnableNTPrivilege(SE_DEBUG_NAME, SE_PRIVILEGE_ENABLED);

    //InjectDll.exe <i|e> <PID> <dll_path>
    BOOL result = FALSE;
    if (!_tcsicmp(argv[1], _T("i")))
    {
        result = InjectDll((DWORD)_ttoi(argv[2]), argv[3]);
    }
    else if (!_tcsicmp(argv[1], _T("e")))
    {
        result = EjectDll((DWORD)_ttoi(argv[2]), argv[3]);
    }
    else
    {
        _tprintf(_T("Invalid option: %s\n"), argv[1]);
        usage();
        return 1;
    }

    _tprintf(_T("Operation %s\n"), result ? _T("succeeded") : _T("failed"));
    return result ? 0 : 1;
}

结果演示
- 将文件放置到同一路径下

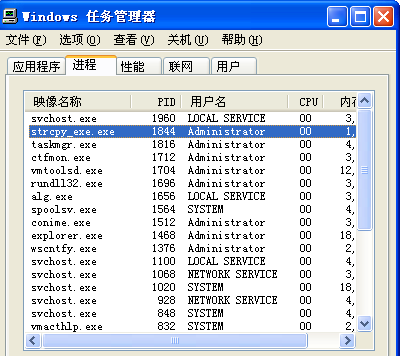

- 运行strcpy_exe，在资源管理器中查看PID 这里是1844

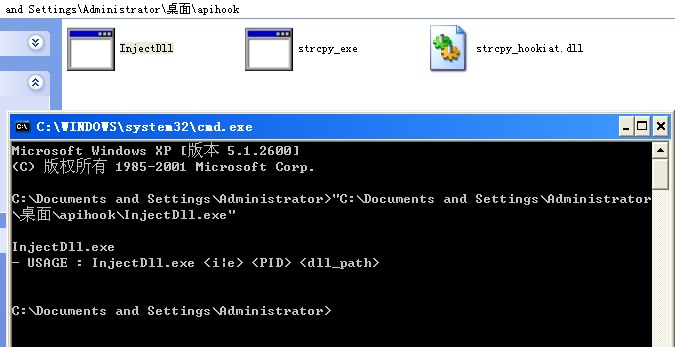

- 将InjectDll.exe拖入cmd命令窗口，按下回车可以看见用法

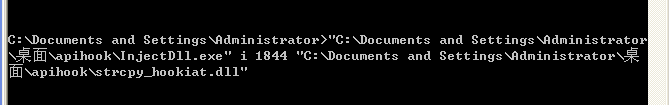

- 将InjectDll.exe拖入cmd后，输入 i 1844 ，再把dll也拖入cmd

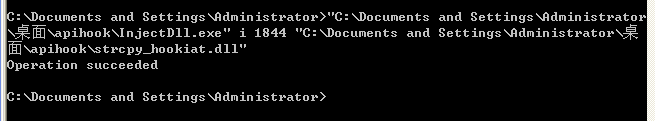

- 按下回车，提示Operation succeeded

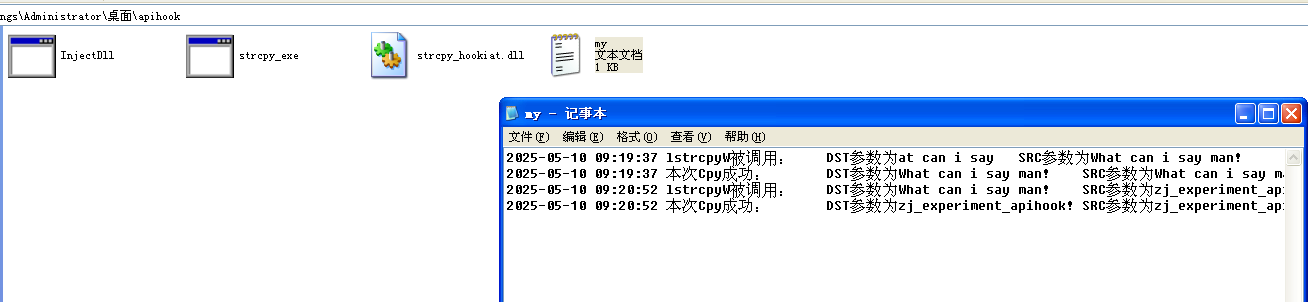

- 再使用strcpy_exe进行复制字符串，会在目录下生成一个my.txt，里面记录了复制的日志

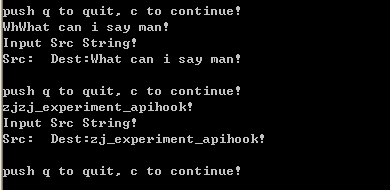

至于这里为什么要双写前两个字符，据说这里固定丢失前两个字符，具体原因不是本次实验的重点。
