应用Python进行统计数据画图

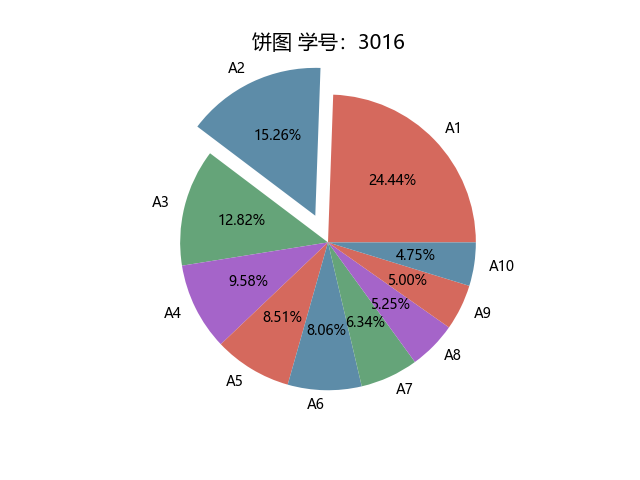

画饼图：

# -*- coding: utf-8 -*-
"""
Spyder Editor

This is a temporary script file.
"""

import pandas as pd
import numpy as np
#import seaborn as
import matplotlib.pyplot as plt
import os

plt.rcParams['font.sans-serif'] = 'Microsoft YaHei'
plt.rcParams['axes.unicode_minus'] = False

file_path = r'D:/a_learn/大三/a_大数据分析/实训1/catering_dish_profit.xls' # r对路径进行转义，windows需要
data = pd.read_excel(file_path) # header=0表示第一行是表头，就自动去除了
print(data)

print("\n")
y=data.iloc[1].values
y=y[1:]
print(y)

plt.title("饼图 学号：3016")
plt.pie(y,
labels=['A1','A2','A3','A4','A5','A6','A7','A8','A9','A10'], # 设置饼图标签
colors=["#d5695d", "#5d8ca8", "#65a479", "#a564c9","#d5695d", "#5d8ca8", "#65a479", "#a564c9","#d5695d", "#5d8ca8"], # 设置饼图颜色
explode=(0, 0.2, 0, 0,0,0,0,0,0,0), # 第二部分突出显示，值越大，距离中心越远
autopct='%.2f%%', # 格式化输出百分比
)
plt.show()

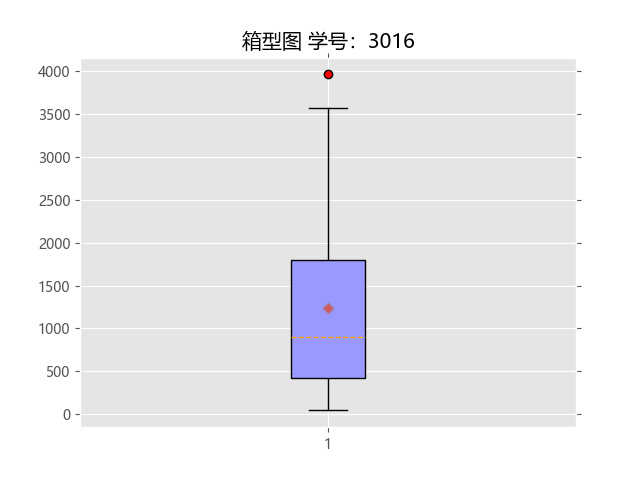

箱型图

import pandas as pd

file_path = r'D:\linshi\catering_fish_congee.xls'   # r对路径进行转义，windows需要
raw_data = pd.read_excel(file_path, header=0)  # header=0表示第一行是表头，就自动去除了
print(raw_data)

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
#import seaborn as
import matplotlib.pyplot as plt
# 设置中文和负号正常显示
plt.rcParams['font.sans-serif'] = 'Microsoft YaHei'
plt.rcParams['axes.unicode_minus'] = False

# 设置图形的显示风格
plt.style.use('ggplot')
# 绘图：daily_Ionset_r_c1_predicted的箱线图

data= pd.read_excel(file_path, header=0,usecols=[1])
print(data)
plt.boxplot(x = data, # 指定绘图数据

            patch_artist=True, # 要求用自定义颜色填充盒形图，默认白色填充

            showmeans=True, # 以点的形式显示均值

            boxprops = {'color':'black','facecolor':'#9999ff'}, # 设置箱体属性，填充色和边框色

            flierprops = {'marker':'o','markerfacecolor':'red','color':'black'}, # 设置异常值属性，点的形状、填充色和边框色

            meanprops = {'marker':'D','markerfacecolor':'indianred'}, # 设置均值点的属性，点的形状、填充色

            medianprops = {'linestyle':'--','color':'orange'}) # 设置中位数线的属性，线的类型和颜色

# 设置y轴的范围
#plt.ylim(0,3000)
plt.title("箱型图 学号：3016")
# 去除箱线图的上边框与右边框的刻度标签
plt.tick_params(top='off', right='off')
# 保存图像
plt.savefig('./results_imgs.png', bbox_inches='tight') #保存的文件名，裁剪掉图表多余的空白区域
# 显示图形
plt.show()

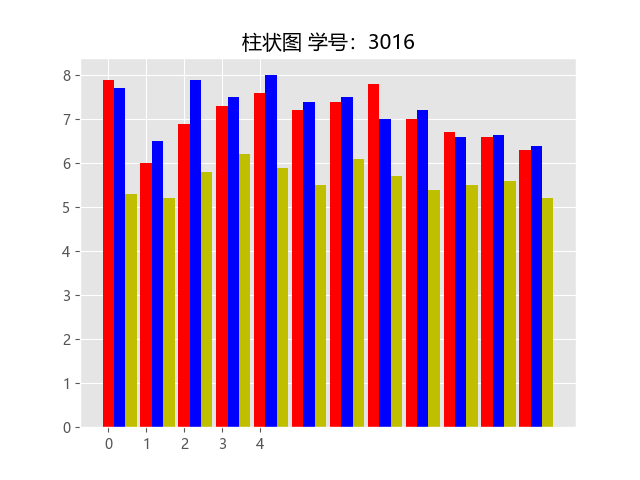

柱状图

# -*- coding: utf-8 -*-
"""
Created on Sun Feb 26 20:25:18 2023

@author: 又双叒叕莹
"""

import pandas as pd
import numpy as np
#import seaborn as
import matplotlib.pyplot as plt
import os

plt.rcParams['font.sans-serif'] = 'Microsoft YaHei'
plt.rcParams['axes.unicode_minus'] = False

file_path = r'D:/a_learn/大三/a_大数据分析/实训1/data/dish_sale_b.xls' # r对路径进行转义，windows需要
data = pd.read_excel(file_path) # header=0表示第一行是表头，就自动去除了
print(data)

data=np.array(data)
x=data[0:12,0]
print(x)
x1=data[0:12,1]
print(x1)
x2=data[0:12,2]
print(x2)
x3=data[0:12,3]
print(x3)

x_width = range(0,len(x))
x2_width = [i+0.3 for i in x_width]
x3_width = [i+0.3 for i in x2_width]
plt.title("柱状图 学号：3016")
plt.bar(x_width,x1,lw=0.5,fc="r",width=0.3,label="2014")
plt.bar(x2_width,x2,lw=0.5,fc="b",width=0.3,label="2015")
plt.bar(x3_width,x3,lw=0.5,fc="y",width=0.3,label="2016")

plt.xticks(range(0,5),x)





# -*- coding: utf-8 -*-
"""
Created on Sun Feb 26 22:01:54 2023

@author: 又双叒叕莹
"""

import pandas as pd
import matplotlib.pyplot as plt                #导入绘图包

plt.rcParams['font.sans-serif'] = ['SimHei']   #解决中文显示问题
plt.rcParams['axes.unicode_minus'] = False    # 解决中文显示问题

url = r"D:/a_learn/大三/a_大数据分析/实训1/data/dish_sale.xls"
data = pd.read_excel(url)

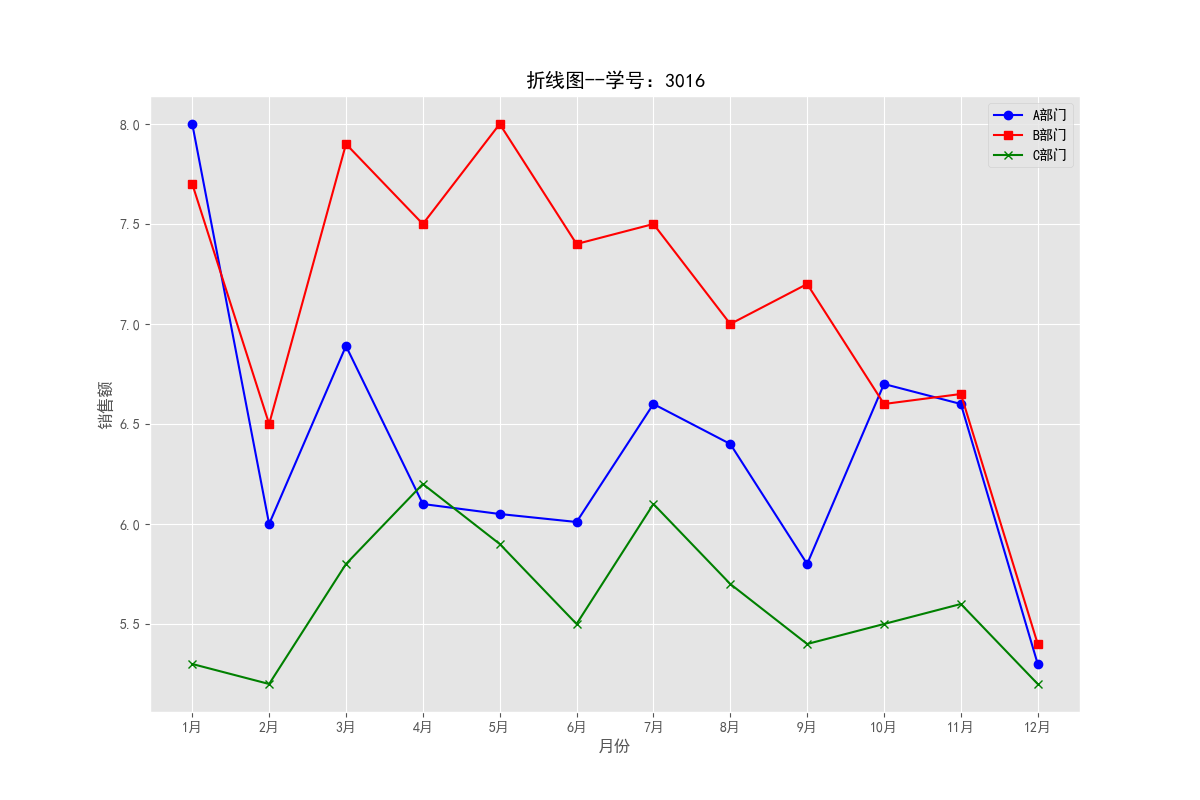

#画折线图对比数据
plt.figure(figsize=(12,8))
plt.plot(data['月份'],data['A部门'],color='blue',label='A部门',marker='o')
plt.plot(data['月份'],data['B部门'],color='red',label='B部门',marker='s')
plt.plot(data['月份'],data['C部门'],color='green',label='C部门',marker='x')
plt.xlabel('月份')
plt.ylabel('销售额')
plt.title('折线图--学号：3016') #加标题
plt.legend() #显示图例
plt.show()
