11.5

今天在写软件构造的实验5
.类图@startuml
class Computer {
- cpu: String
- memory: String
- hardDisk: String
- mainFrame: String
- type: String
+ setCPU(cpu: String): void
+ setMemory(memory: String): void
+ setHardDisk(hardDisk: String): void
+ setMainFrame(mainFrame: String): void
+ setType(type: String): void
+ toString(): String
}

abstract class ComputerBuilder {
# computer: Computer
+ buildComputer(): void
+ getComputer(): Computer
+ buildCPU(): void
+ buildMemory(): void
+ buildHardDisk(): void
+ buildMainFrame(): void
}

class DesktopBuilder {
+ buildCPU(): void
+ buildMemory(): void
+ buildHardDisk(): void
+ buildMainFrame(): void
}

class LaptopBuilder {
+ buildCPU(): void
+ buildMemory(): void
+ buildHardDisk(): void
+ buildMainFrame(): void
}

class Director {
- builder: ComputerBuilder
+ setBuilder(builder: ComputerBuilder): void
+ construct(): Computer
}

ComputerBuilder --> Computer
DesktopBuilder --|> ComputerBuilder
LaptopBuilder --|> ComputerBuilder
Director --> ComputerBuilder
@enduml
2.源代码

1. Computer类（产品类）/**

• 计算机产品类
  */
  public class Computer {
  private String cpu;
  private String memory;
  private String hardDisk;
  private String mainFrame;
  private String type;

  public void setCPU(String cpu) {
  this.cpu = cpu;
  }

  public void setMemory(String memory) {
  this.memory = memory;
  }

  public void setHardDisk(String hardDisk) {
  this.hardDisk = hardDisk;
  }

  public void setMainFrame(String mainFrame) {
  this.mainFrame = mainFrame;
  }

  public void setType(String type) {
  this.type = type;
  }

  @Override
  public String toString() {
  return "计算机类型: " + type + "\n" +
  "CPU: " + cpu + "\n" +
  "内存: " + memory + "\n" +
  "硬盘: " + hardDisk + "\n" +
  "主机: " + mainFrame;
  }
  }

2. ComputerBuilder类（抽象建造者）/**

• 抽象建造者
  */
  public abstract class ComputerBuilder {
  protected Computer computer;

  public ComputerBuilder() {
  this.computer = new Computer();
  }

  public abstract void buildCPU();
  public abstract void buildMemory();
  public abstract void buildHardDisk();
  public abstract void buildMainFrame();

  public Computer getComputer() {
  return computer;
  }

  public void buildComputer() {
  buildCPU();
  buildMemory();
  buildHardDisk();
  buildMainFrame();
  }
  }

3. DesktopBuilder类（具体建造者）/**

• 台式机建造者
  */
  public class DesktopBuilder extends ComputerBuilder {

  @Override
  public void buildCPU() {
  computer.setCPU("Intel Core i7-12700K 台式机CPU");
  }

  @Override
  public void buildMemory() {
  computer.setMemory("32GB DDR4 台式机内存");
  }

  @Override
  public void buildHardDisk() {
  computer.setHardDisk("2TB SSD 台式机硬盘");
  }

  @Override
  public void buildMainFrame() {
  computer.setMainFrame("ATX 中塔式机箱");
  }

  @Override
  public void buildComputer() {
  super.buildComputer();
  computer.setType("台式机");
  }
  }

4. LaptopBuilder类（具体建造者）/**

• 笔记本电脑建造者
  */
  public class LaptopBuilder extends ComputerBuilder {

  @Override
  public void buildCPU() {
  computer.setCPU("Intel Core i7-1260P 笔记本CPU");
  }

  @Override
  public void buildMemory() {
  computer.setMemory("16GB LPDDR5 笔记本内存");
  }

  @Override
  public void buildHardDisk() {
  computer.setHardDisk("1TB NVMe SSD 笔记本硬盘");
  }

  @Override
  public void buildMainFrame() {
  computer.setMainFrame("铝合金轻薄机身");
  }

  @Override
  public void buildComputer() {
  super.buildComputer();
  computer.setType("笔记本电脑");
  }
  }

5. Director类（指挥者）/**

• 指挥者
  */
  public class Director {
  private ComputerBuilder builder;

  public void setBuilder(ComputerBuilder builder) {
  this.builder = builder;
  }

  public Computer construct() {
  if (builder == null) {
  throw new IllegalStateException("建造者未设置");
  }
  builder.buildComputer();
  return builder.getComputer();
  }
  }

6. 客户端测试类/**

• 客户端测试类
  */
  public class Client {
  public static void main(String[] args) {
  // 创建指挥者
  Director director = new Director();

   System.out.println("=== 组装台式机 ===");
   // 创建台式机建造者
   ComputerBuilder desktopBuilder = new DesktopBuilder();
   director.setBuilder(desktopBuilder);
   Computer desktop = director.construct();
   System.out.println(desktop);

   System.out.println("\n=== 组装笔记本电脑 ===");
   // 创建笔记本电脑建造者
   ComputerBuilder laptopBuilder = new LaptopBuilder();
   director.setBuilder(laptopBuilder);
   Computer laptop = director.construct();
   System.out.println(laptop);

   System.out.println("\n=== 直接使用建造者 ===");
   // 也可以直接使用建造者
   ComputerBuilder customBuilder = new DesktopBuilder();
   customBuilder.buildComputer();
   Computer customComputer = customBuilder.getComputer();
   System.out.println(customComputer);


  }
  }

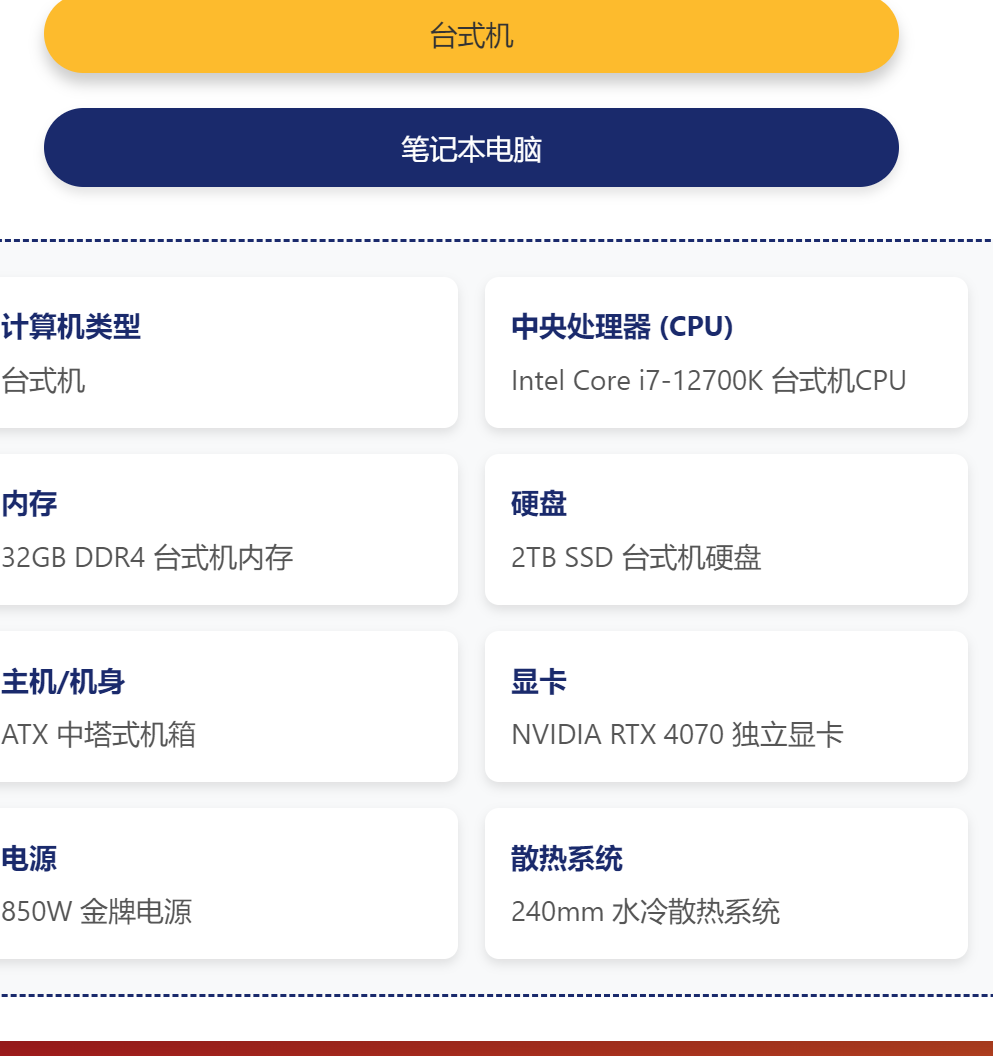

  3.运行结果
